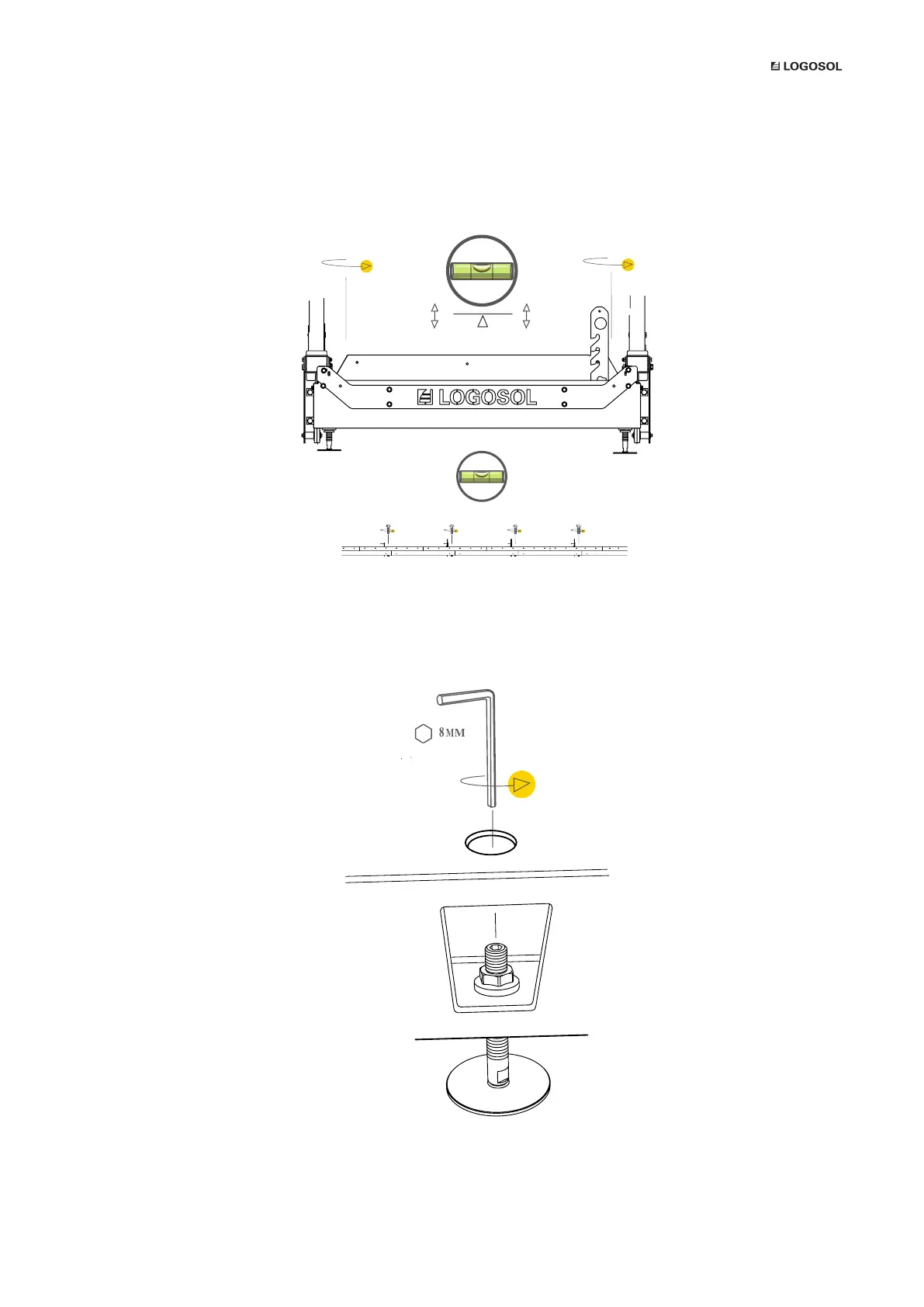

1. ADJUST THE RAIL HORIZONTALLY
To ensure a good sawing result, it is important that the rails are completely level.
Earlier, we have adjusted the levelness along the long sides of the rail frame. Now the rail frame is to be
adjusted on its short sides. Place a spirit level on a cross bunk and adjust the levelling feet until the rails are
on a level. Repeat this procedure on all cross bunks until the rails are on a level along the whole length of
the rail frame.
ADJUSTMENT OF THE LEVELING FEET
Adjust the levelling feet by using an Allen key from above. Once the adjustment is complete, you secure
the position of the feet by tightening the counter nut inside the rail frame.
