2. ADJUST THE BAND WHEELS
The angle of the band wheels has to be adjusted so that they are at right angles to the cross bunks. With
the sawhead in its lowest position, check the perpendicularity between the band wheels and the cross
bunks.

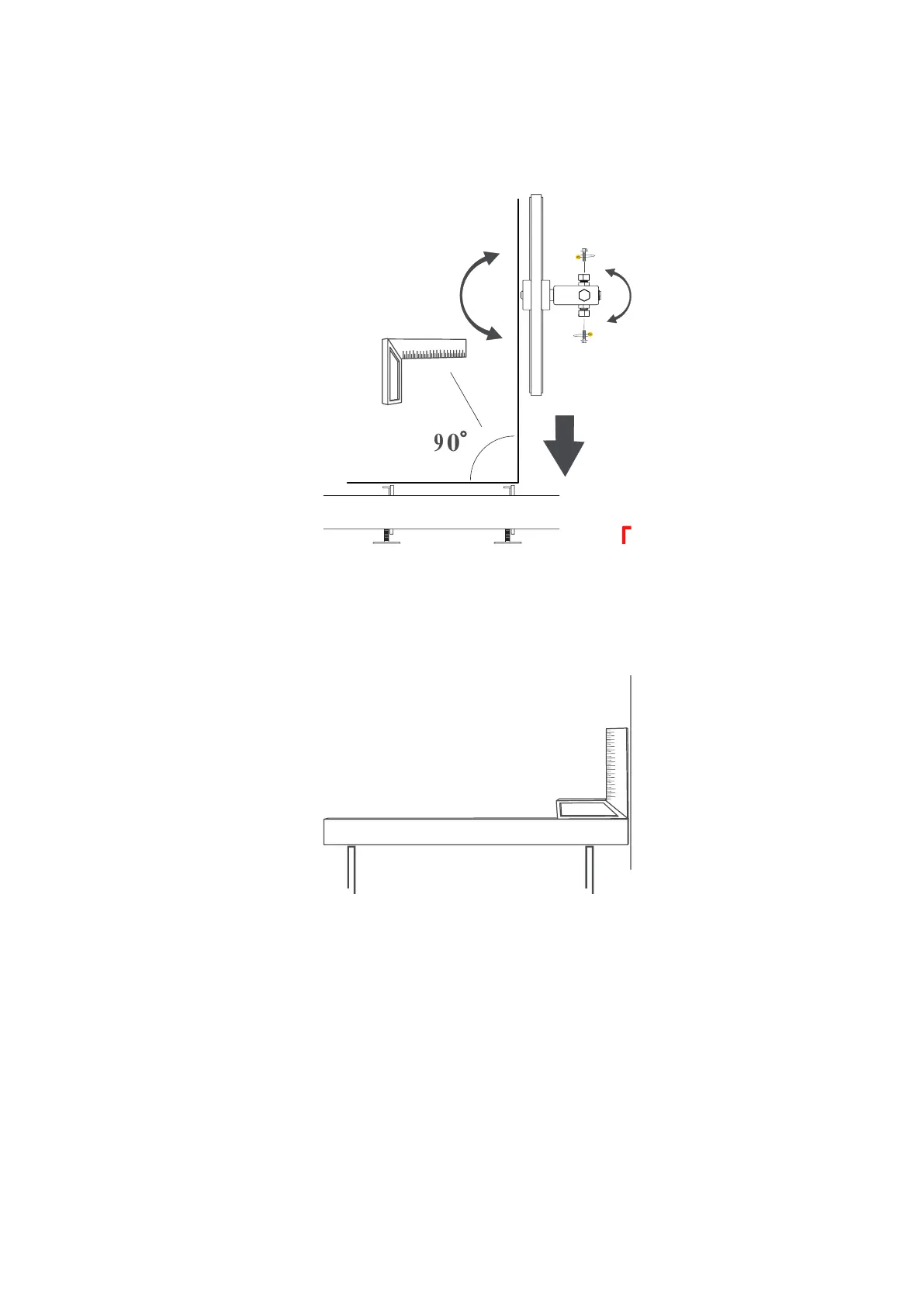

A good method is to place a set square on a straightedge that rests on two cross bunks. Adjust by rst
loosening the lock nut and then turning the adjusting screws on the top side of the band wheel shaft
mountings until the band wheels and the cross bunks are perpendicular to each other.
Tighten lock nuts and adjusting bolts.
USER MANUAL
73
