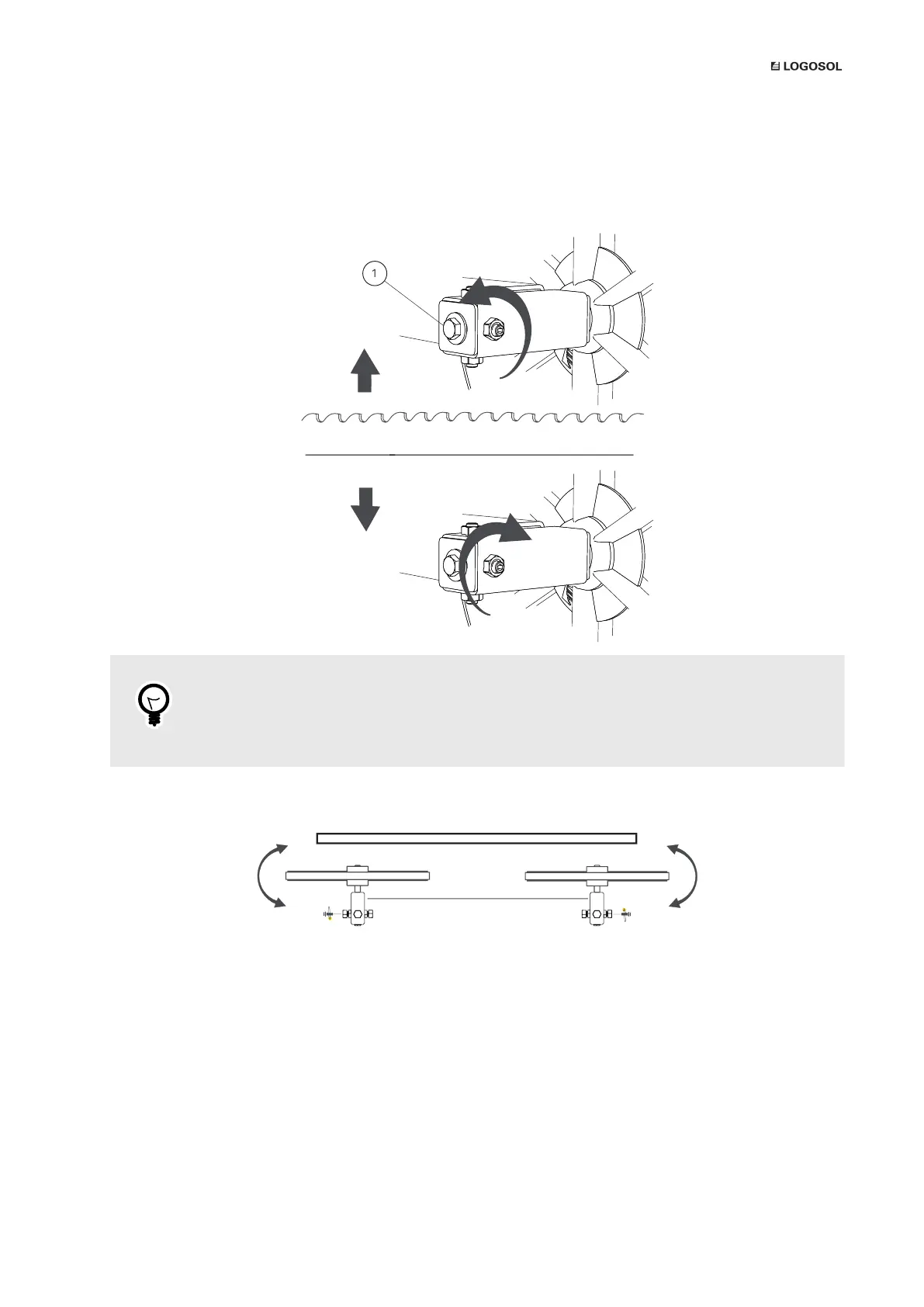

3. ADJUST THE LENGTHWISE POSITION OF THE BLADE
The lengthwise position of the blade is adjusted by the adjusting bolts that is positioned horizontally, i.e.
the bolts situated on the outside of the shaft mountings. Before adjusting, the lock nut has to be opened.
If the blade moves outwards on the wheels, turn the adjusting bolt clockwise to compensate. If the blade
moves inwards, turn the bolt counterclockwise. Adjust in small steps. Tighten all lock nuts and adjusting
screws after the adjustment.
TIP:
You may need to loosen the adjusting bolts slightly on the top side of the shaft mountings
before adjusting the blade.
THE LENGTHWISE POSITION OF THE BLADE
The lengthwise position of the blade is crucial to the sawing result. To ensure the best possible sawing
result, we recommend that the blade body is positioned centred over the drive belt, which lies in the
groove in the wheel.
