BLADE BODY

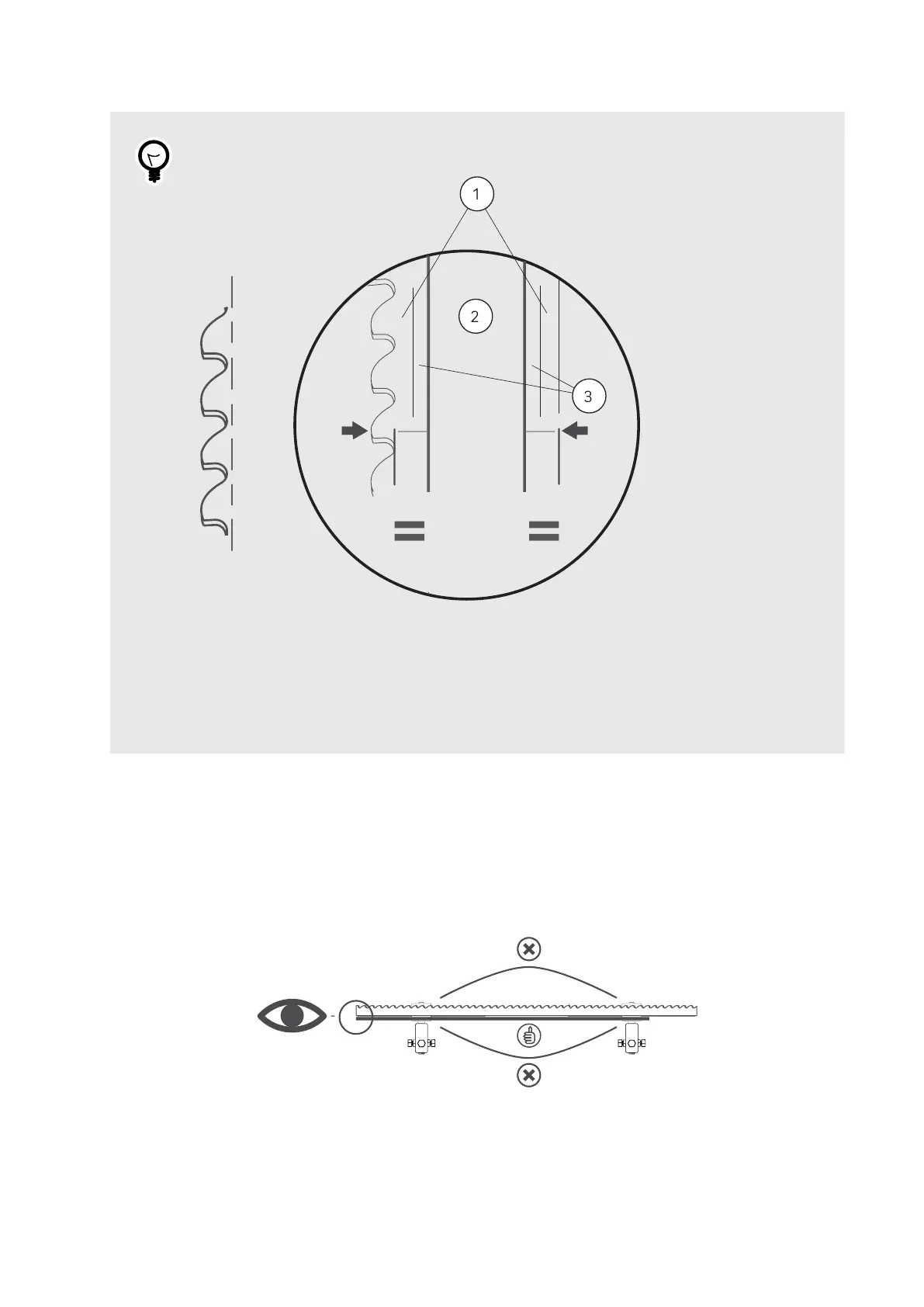

1. Blade body
2. Drive belt
3. Wheel
In this case, the blade body refers to the part of the blade that is between the gullet and
and the back of the blade.
First, install the blade centred over the drive belt so that blade body protrudes equally on both sides of the
drive belt. Then, tighten the blade. Rotate the wheels manually and check that the lengthwise position of
the blade is unchanged. Rotate the wheels at least three turns. If the blade moves outwards or inwards on
the wheels, you adjust this as described on the next page. If the blade runs straight on both band wheels,
then check that the blade runs in a straight line between the wheels. You check this by looking along the
back edge of the blade viewed from the top of the wheels.
If the blade bends in the direction of the saw teeth, the blade is positioned too far forward on the wheels. If
it bends in the other direction, the blade is positioned too far back.
