When the blade runs in a straight line, close the wheel guards and start the sawmill. Throttle up to make
the wheels spin, then release the throttle. Open the wheel guards and check that the lengthwise position
of the blade is unchanged. If this is the case, the blade is adjusted correctly.

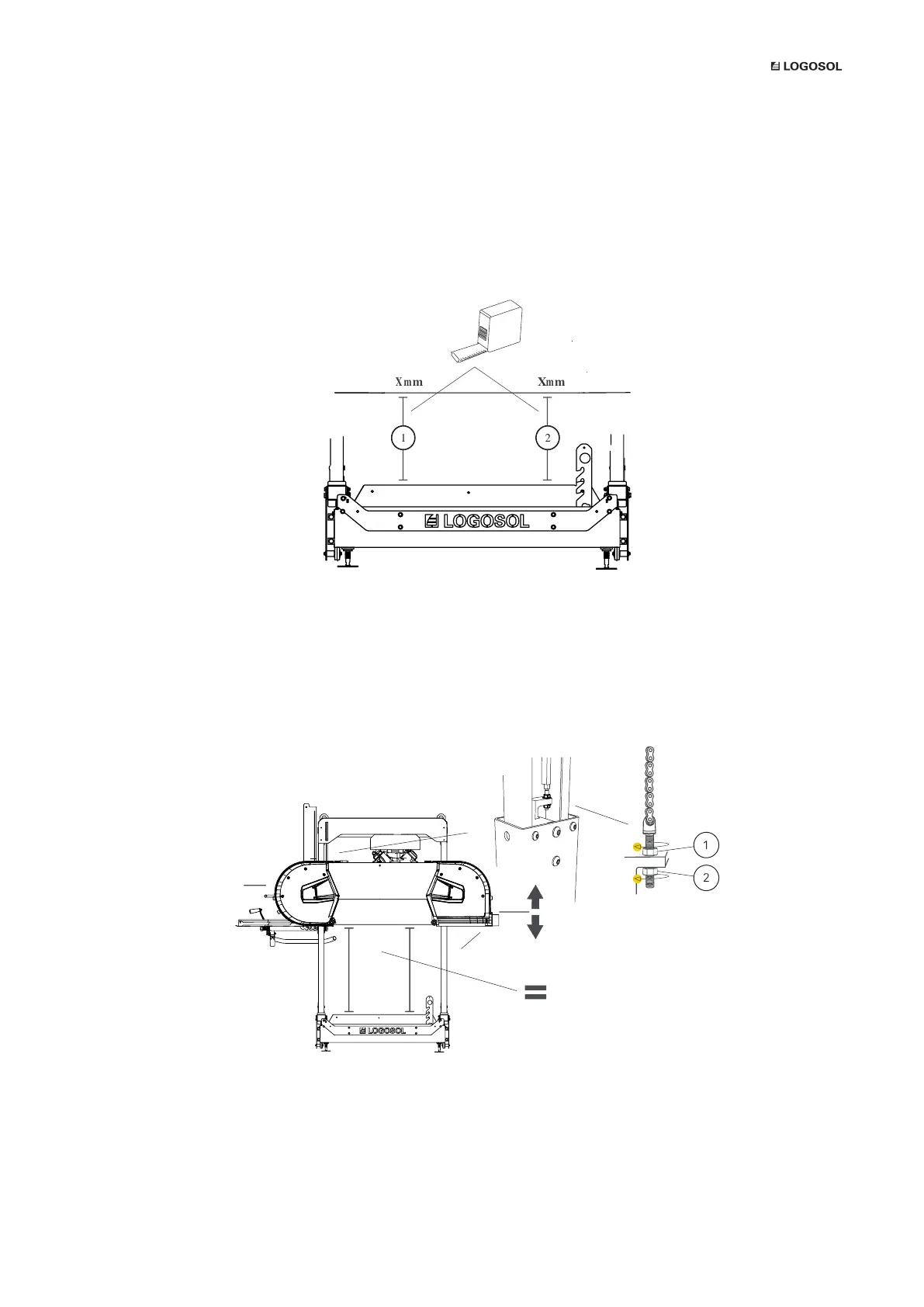

4. ADJUST THE PARALLELITY BETWEEN THE BAND BLADE AND THE CROSS BUNKS
To ensure a good sawing result, it is important that the band blade is parallel with the cross bunks.
Measure the vertical distance between the blade and the cross bunk. Note down the measurements.
1. Measurement point 1
2. Measurement point 2
When carrying out this adjustment, the blade guide rollers have to be removed.
1. Locking
2. Adjustment nut
Adjust the band blade by turning the adjusting bolts on the sawhead until the measurements are the same
at both measuring points.
USER MANUAL
76
