5. ADJUST THE ADJUSTABLE BLADE GUIDE HORIZONTALLY

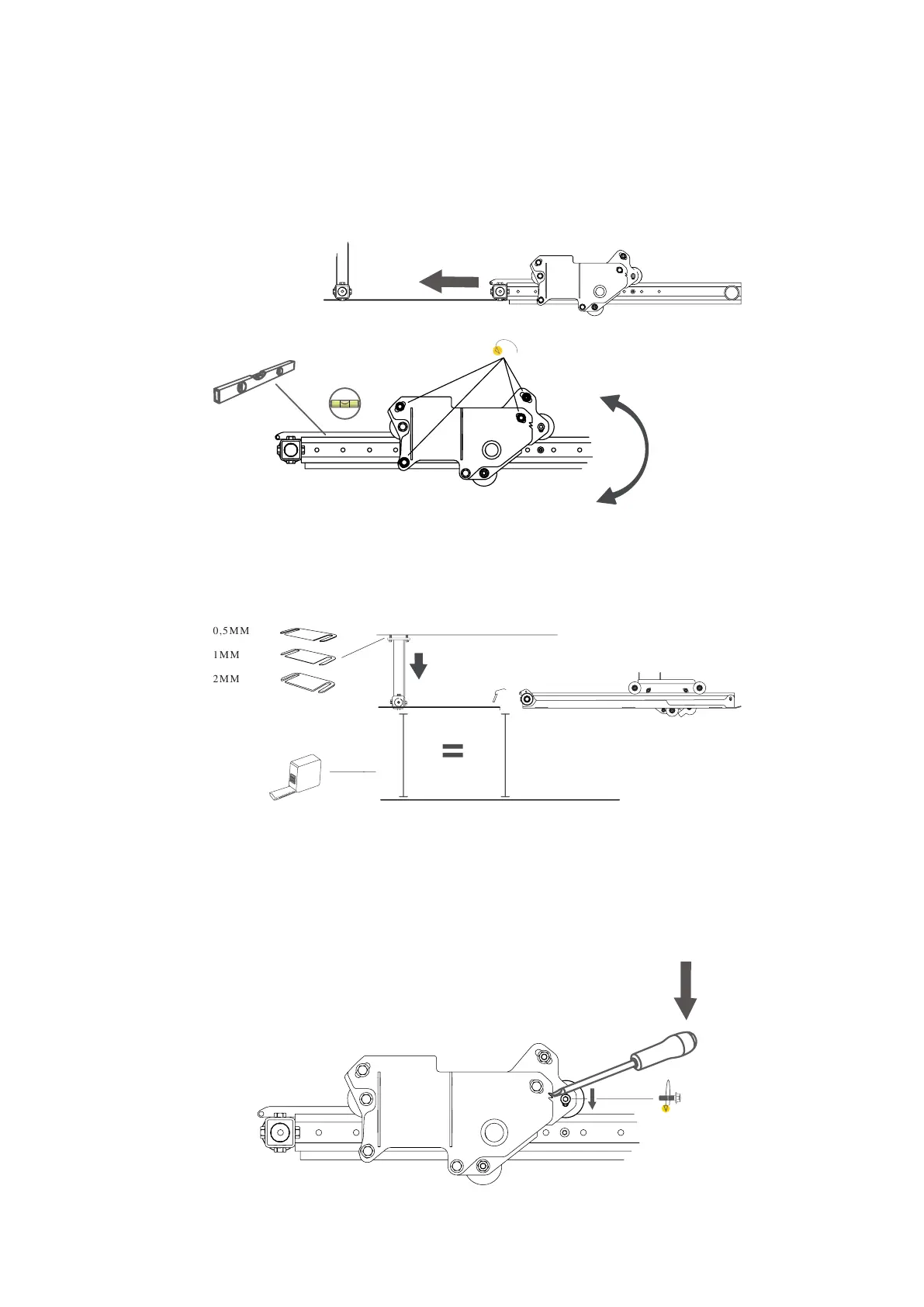

The adjustable blade guide with guard has to be adjusted to ensure straight cuts in all positions. Install the
blade guide rollers. Then, bring the blade guide with guard to its innermost position. Place a spirit level on
the blade guide and adjust by turning the eccentric handle until the blade guide with guard is horizontally
level.
When it is level, use spacers on the xed blade guide roller until both blade guide rollers have the same
distance to the cross bunk.
TIGHTEN THE BLADE GUIDE ARM
To ensure good operation of the sawmill, it is important that the blade guide arm runs without play in the
blade guard holder. Loosen the Allen bolt on the blade guard holder and push the wheel down as in the
illustration. Ensure that the blade guide arm is aligned between the wheels and runs without play.
