Make sure the blade protection arm is straight between the wheels and runs smoothly.

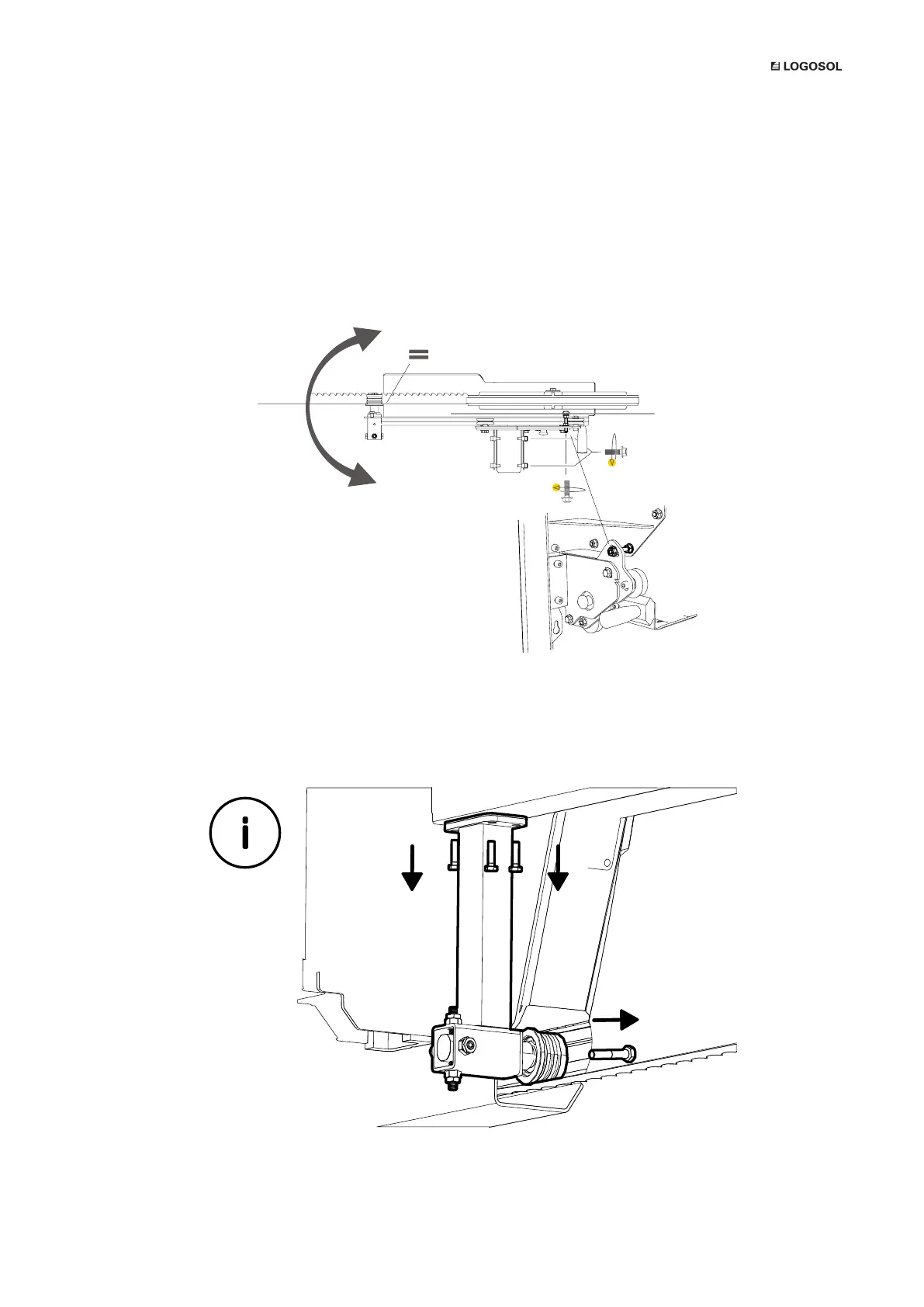

ADJUST THE PARALLELITY BETWEEN THE BLADE GUIDE ARM AND THE BLADE
To adjust the parallelity between the blade guide arm and the band blade, you loosen the three xing bolts
on the outside of the blade guard holder. Then, adjust the parallelity using the adjusting bolt on the rear
plate
ADJUST THE FIXED BLADE GUIDE AND BLADE GUARD - LEFT SIDE
When sawing smaller sized logs the blade guide on the left side of the machine needs to adjusted for better
results. Remove the bolts at its top and front and move the blade guide to the inner hole section. Attach it
with the same bolts you just removed. Lift the blade guard in place and fasten it in the at both ends.
