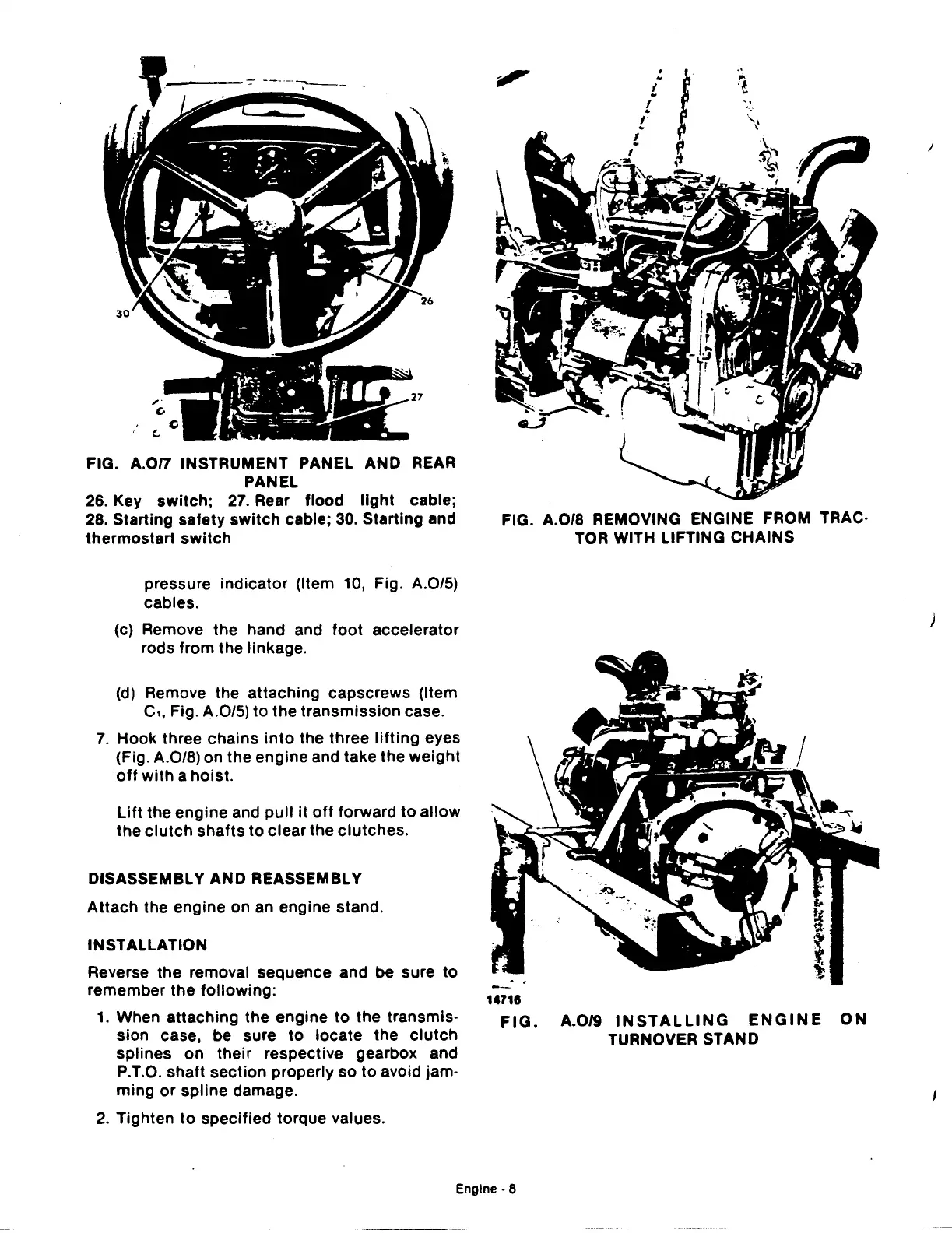

FIG. A.OI7 INSTRUMENT PANEL AND
REAR
PANEL
26. Key
switch;
27.
Rear
flood
light
cable;
28. Starting safety
switch
cable; 30. Starting and
thermostart
switch
pressure
indicator
(Item 10, Fig. A.0/5)
cables.
(c) Remove
the
hand and
foot
accelerator
rods
from
the
linkage.
(d) Remove
the
attaching
capscrews
(Item
c,,
Fig. A.0/5)
to
the
transmission
case.
7.
Hook
three
chains
into
the
three
lifting
eyes
(Fig.
A.0/8)
on
the
engine
and
take
the
weight
·off
with
a
hoist.
Lift
the
engine
and
pull
it
off
forward
to
allow
the
clutch
shafts
to
clear
the
clutches.
DISASSEMBLY AND REASSEMBLY
Attach
the
engine
on
an engine
stand.
INSTALLATION
Reverse
the
removal
sequence
and
be sure
to
remember
the
following:
1.
When
attaching
the
engine
to
the
transmis-
sion
case, be sure
to
locate
the
clutch
splines
on
their
respective
gearbox and
P.T.O.
shaft
section
properly
so
to
avoid jam-
ming
or
spline
damage.
2.
Tighten
to
specified
torque
values.
,.
.
I
..
..
·"'~
I
..
\:.
!
,,
t
\
~
'
FIG. A.0/8 REMOVING ENGINE FROM TRAC·
TOR
WITH LIFTING CHAINS
14718
FIG.
A.0/9
INSTALLING
ENGINE
ON
TURNOVER STAND
Engine·
8
/
)
