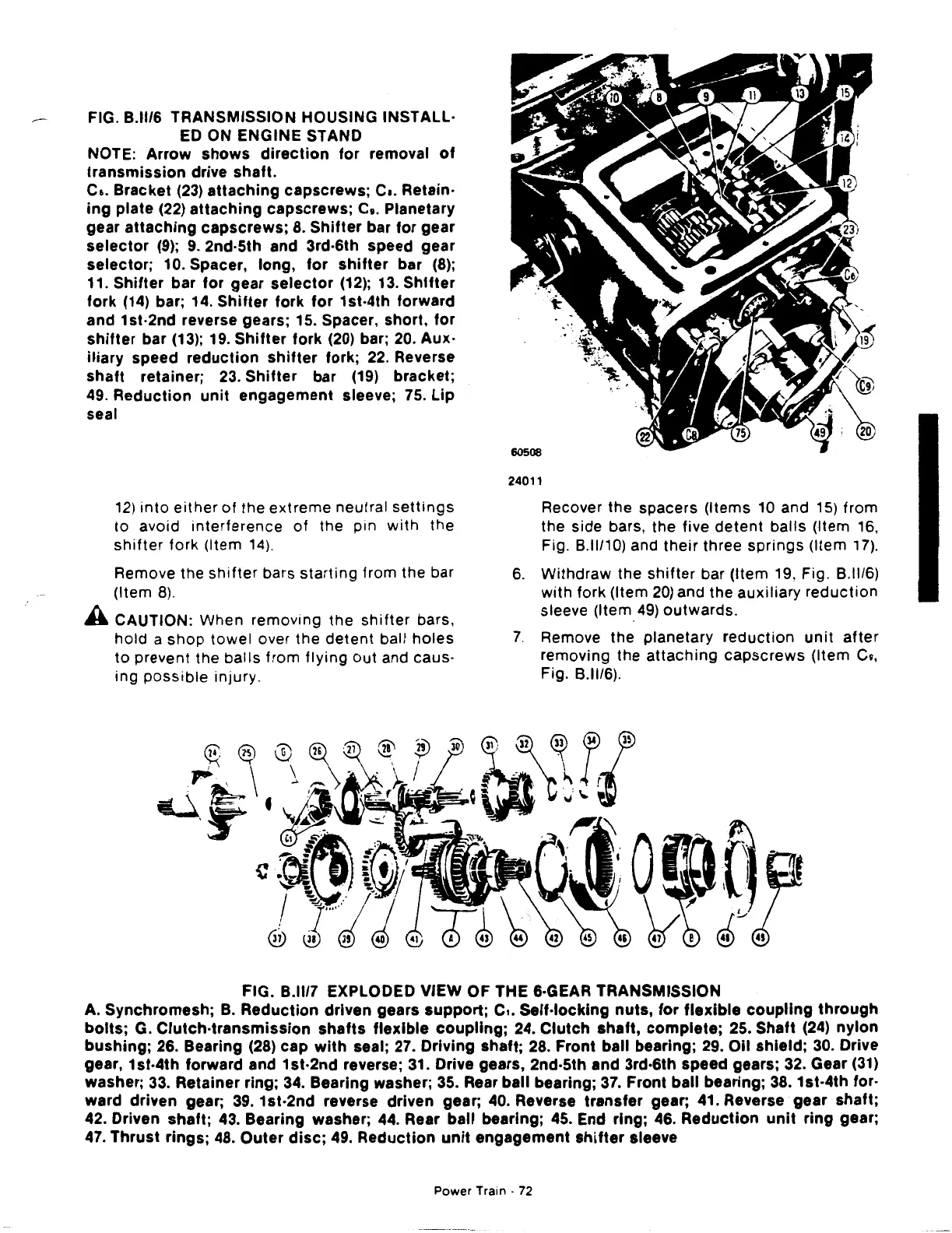

FIG. B.ll/6 TRANSMISSION HOUSING INSTALL·
ED
ON
ENGINE STAND
NOTE: Arrow
shows
direction
for removal
of
transmission
drive shaft.
Ca.
Bracket
(23)
attaching
capscrews; c
•.
Retain·
ing
plate
(22)
attaching
capscrews; c
•.
Planetary
gear
attaching
capscrews;
8.
Shifter
bar
for
gear
selector
(9);
9.
2nd·5th and 3rd·6th speed gear
selector; 10. Spacer, long,
for
shifter
bar
(8);
11.
Shifter
bar
for
gear
selector
(12);
13.
Shifter
fork
(14)
bar; 14.
Shifter
fork
for
1 st·4th forward
and 1st·2nd reverse gears; 15. Spacer, short,
for
shifter
bar (13); 19.
Shifter
fork
(20)
bar; 20. Aux·
iliary
speed
reduction
shifter
fork; 22. Reverse
shaft retainer; 23.
Shifter
bar
(19)
bracket;
49. Reduction
unit
engagement sleeve; 75.
Lip
seal
12)
into
either of the extreme neutral
settings
to
avoid interference
of
the pin
with
the
shifter
fork (Item 14).
Remove the
shifter
bars starting from the bar
(Item
8).
A CAUTION: When removing the
shifter
bars,
hold a shop towel over the detent ball
holes
to
prevent the balls from flying out and caus·
ing
possible
injury.
24011
Recover the spacers (Items
10
and
15)
from
the side bars, the five detent balls (Item 16,
Fig.
8.11/10)
and
their
three springs (Item 17).
6.
Withdraw the
shifter
bar (Item 19, Fig. B.ll/6)
with
fork (Item
20)
and the auxiliary
reduction
sleeve (Item
49)
outwards.
7.
Remove the planetary reduction
unit
after
removing the attaching capscrews (Item c
•.
Fig.
8.11/6).
FIG. B.ll/7 EXPLODED VIEW OF THE 6·GEAR TRANSMISSION
A. Synchromesh;
B.
Reduction driven gears
support;
c,.
Self-locking
nuts,
for
flexible
coupling
through
bolts;
G.
Clutch-transmission
shafts
flexible
coupling;
24.
Clutch
shaft,
complete;
25. Shaft (24)
nylon
bushing;
26. Bearing (28) cap
with
seal; 27. Driving shaft; 28. Front ball bearing; 29. Oil shield;
30.
Drive
gear, 1st·4th forward and 1st·2nd reverse; 31. Drive gears, 2nd·5th and 3rd·6th speed gears; 32. Gear (31)
washer;
33.
Retainer ring; 34. Bearing washer; 35. Rear ball bearing;
37.
Front ball bearing; 38. 1st·4th for·
ward driven gear; 39. 1st·2nd reverse driven gear; 40. Reverse transfer gear; 41. Reverse gear shaft;
42. Driven
shaft;
43. Bearing washer; 44. Rear ball bearing; 45. End ring; 46. Reduction
unit
ring
gear;
47. Thrust rings; 48.
Outer
disc;
49. Reduction
unit
engagement
shifter
sleeve
Power
Train ·
72
