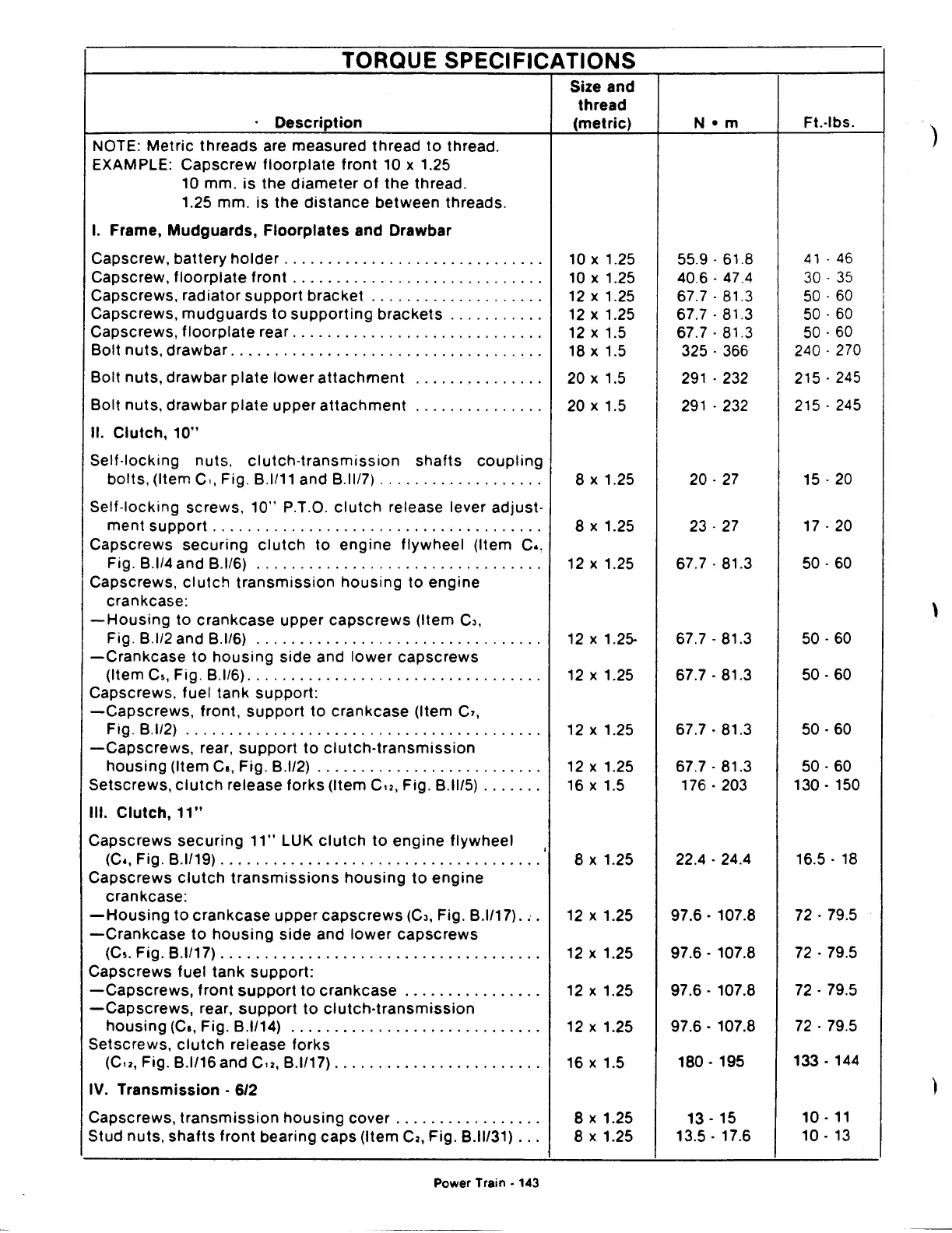

TORQUE SPECIFICATIONS
Description
NOTE: Metric threads are measured thread to thread.
EXAMPLE: Cap screw floorplate front 10 x 1.25
10 mm. is the diameter of the thread.
1.25 mm. is the distance between threads.
I. Frame, Mudguards, Floorplates and Drawbar
Capscrew, battery holder ............................. .
Capscrew, floorplate front ............................ .
Capscrews, radiator support bracket ................... .
Capscrews, mudguards to supporting brackets .......... .
Capscrews, floorplate rear ............................ .
Bolt nuts, drawbar ................................... .
Bolt nuts, drawbar plate lower attachment
Bolt nuts, drawbar plate upper attachment
II. Clutch, 10"
Self-locking nuts. clutch-transmission shafts coupling
bolts, (Item c .. Fig. B.l/11 and B.ll/7) .................. .
Self-locking screws, 10" P.T.O. clutch release lever adjust·
ment support ..................................... .
Capscrews securing clutch to engine flywheel (Item c ..
Fig. B.l/4 and B.l/6) ................................ .
Capscrews, clutch transmission housing to engine
crankcase:
-Housing to crankcase upper capscrews (Item CJ,
Fig. B.l/2 and B.l/6) ................................ .
-Crankcase to housing side and lower capscrews
(Item Cs, Fig. B.l/6) ................................. .
Capscrews. fuel tank support:
-Capscrews, front, support to crankcase (Item C1,
Fig. B.l/2) ........................................ .
-Capscrews, rear, support to clutch-transmission
housing (Item Ca, Fig. B.l/2) ......................... .
Setscrews, clutch release forks (Item C•2, Fig. B.ll/5) ...... .
Ill. Clutch, 11"
Capscrews securing 11" LUK clutch to engine flywheel
(C., Fig. B.l/19) .................................... .
Capscrews clutch transmissions housing to engine
crankcase:
-Housing to crankcase upper capscrews (Cl, Fig. B.l/17) ...
-Crankcase to housing side and lower capscrews
(Cs. Fig. B.l/17) .................................... .
Capscrews fuel tank support:
-Capscrews, front support to crankcase ............... .
-Capscrews, rear, support to clutch-transmission
housing (Ca, Fig. B.l/14) ............................ .
Setscrews, clutch release forks
(C12, Fig. B.l/16 and C12, B.l/17) ....................... .
IV. Transmission · 6/2
Capscrews, transmission housing cover ................ .
Stud nuts, shafts front bearing caps (Item Cz, Fig. B.ll/31) .. .
Power Train· 143
'
Size and
thread
(metric)
10 X 1.25
10 X 1.25
12 X 1.25
12 X 1.25
12 X 1.5
18 X 1.5
20 X 1.5
20 X 1.5
8 X 1.25
8 X 1.25
12x1.25
12 X 1.25-
12 X 1.25
12 X 1.25
12 X 1.25
16 X 1.5
8 X 1.25
12 X 1.25
12 X 1.25
12 X 1.25
12 X 1.25
16 X 1.5
8 X 1.25
8 X 1.25
55.9. 61.8
40.6. 47.4
67.7·81.3
67.7. 81.3
67.7. 81.3
325. 366
291 . 232
291 . 232
20. 27
23. 27
67.7. 81.3
67.7. 81.3
67.7. 81.3
67.7. 81.3
67.7. 81.3
176. 203
22.4. 24.4
97.6. 107.8
97.6. 107.8
97.6. 107.8
97.6. 107.8
180. 195
13. 15
13.5. 17.6
Ft.·lbs.
41 . 46
30. 35
50. 60
50. 60
50. 60
240. 270
215·245
215·245
15. 20
17. 20
50.60
50.60
50.60
50.60
50.60
130. 150
16.5. 18
72. 79.5
72. 79.5
72. 79.5
72. 79.5
133. 144
10. 11
10. 13
)
\
)
