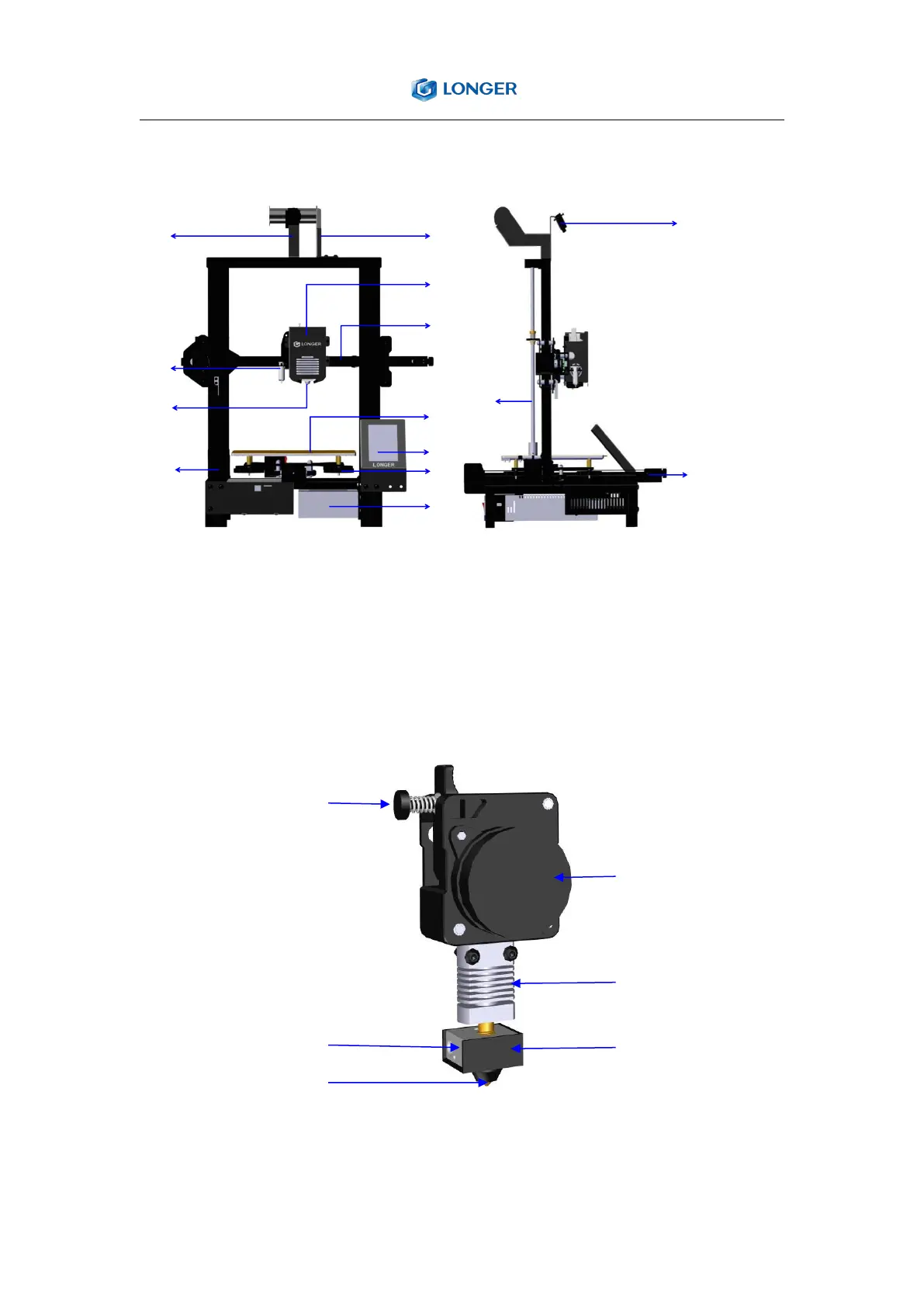

1.3. Printer overview

⑪





⑫




1 Filament sensor holder
2 Filament holder
3 Extruder
4 X axis
5 Auto level sensor
6 X belt tensioner
7 Hot end
8 Hot bed
9 Touch screen
10 Hand twist nut
11 Photoelectric switch
12 Power supply
13 Filament sensor
14 Z axis lead screw
15 Y axis belt tensioner
Extruder motor
Heat sink
Heat block
Nozzle
Silicone cover
Extruder handle
Extruder handle is used to adjust the gap between the feed gears, if the
