2

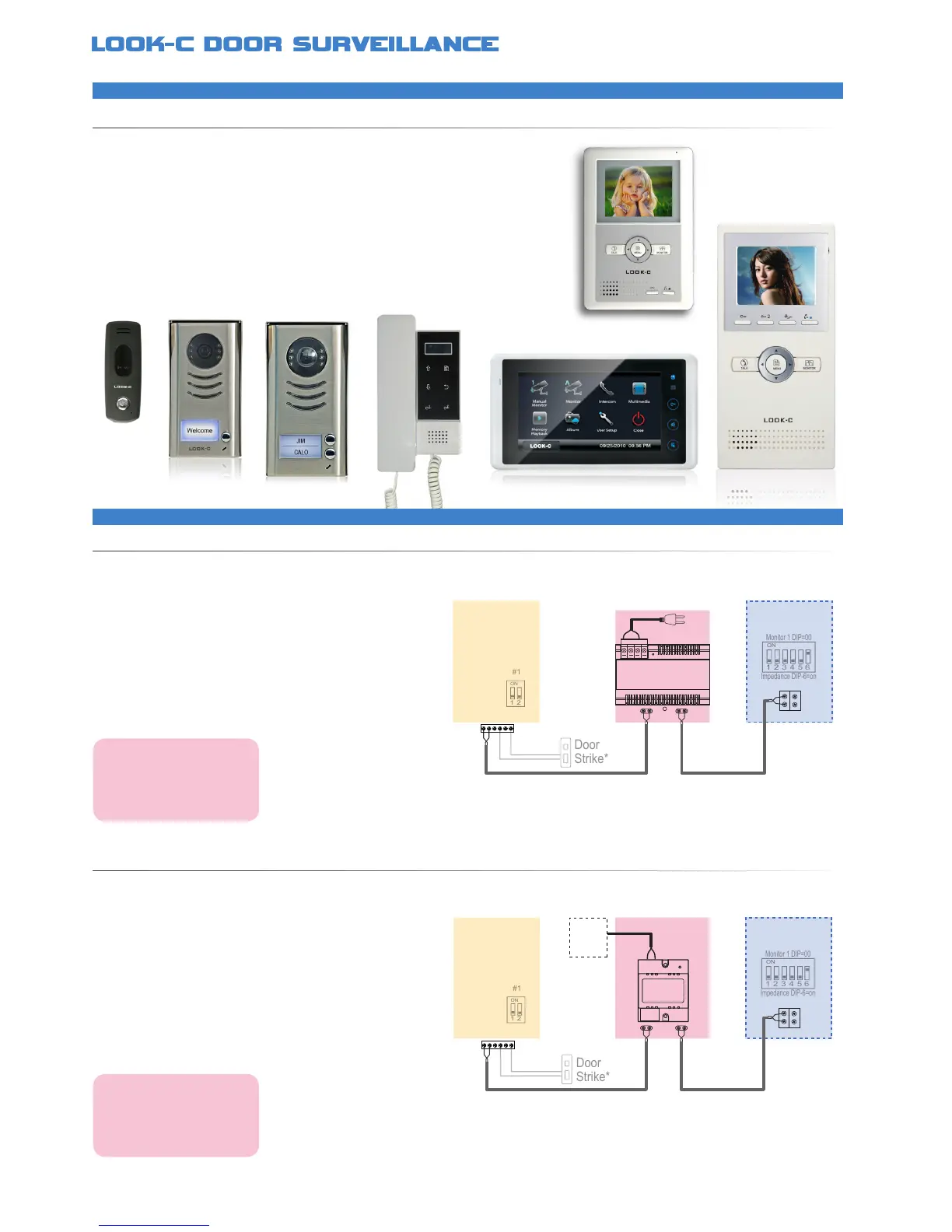

LOOK-C INSTRUCTIONS
2 Wire - 1 Door - 1 Monitor
Door Entry Security
2WIREDOORVIDEOINTERCOMSYSTEM
MINIMUMSYSTEMWITHPC6
MINIMUMSYSTEMWITHDPS
Latest in home door intercom innovation Intelligent twin wire system that helps in creating
a quick, simple and economical installation System setup is easy via the comprehensive
yet simple menu system With design and style to suit todays modern home decors
The simplest setup involves a Monitor, a Door Station Camera
and a Bus Power Supply (PC6) Two wire setup as follows:
The simplest setup involves a Monitor, a Door Station Camera
and a Bus Power INJECTOR (DPS) and Requires 24-28Vdc
*Further information available, see Door Strike Info
*Further information available, see Door Strike Info
• No Polarity, twisted pair, easily to wire solution Use CAT5 or twin core drop cable
• One common power supply to all type solution PC6 will run 6 units, more use PS524
• Supports from 1 to a Max of 16 Monitors connected in one system (Use DBC4S)
• Expanding a system to multiple door station cameras with DBC4S (Up to 4 max)
• Each door camera can control 2 locks Door locks are an optional extra (EL971)
• All 2-Wire H2 products are compatible All operate on the same twisted pair wire
• No Polarity, twisted pair, easily to wire solution
• Use CAT5 or twin core drop cable or equivalent
• Cable distances can be up to 100M Total (CAT5)
• One common power supply to all type solution (PC6)
• PC6 is a Mains 240Vac power to 24Vdc injector 12A
• The door camera can control a door strike*
• Door Strike connections may vary to that shown*
• System is expandable with additional components
• No Polarity, twisted pair, easily to wire solution
• Use CAT5 or twin core drop cable or equivalent
• Cable distances can be up to 100M Total (CAT5)
• One common power supply to all type solution (DPS)
• DPS is an injector that requires an external power source
• Requires 24Vdc to 28Vdc with 1A for this minimal system
• Each door camera can control a door strike*
• Door Strike connections may vary to that shown*
• System is expandable with additional components
AC~
Door
Strike*
PC6
Monitor
Impedance DIP-6=on
Monitor 1 DIP=00
1 2 3 4 5 6
ON
Door
Camera
1
2
ON
#1
BUS
DS
BUS
IM
Monitor
Impedance DIP-6=on
Monitor 1 DIP=00
1 2 3 4 5 6
ON
1
2
#1
Door
Camera
Door
Strike*
DC
24V
1.2A+
DPS
BUS
DS
BUS
IU
• Monitors: 1
• Door Camera: 1
• Power Source: PC6
• Dip Switches: Default
• Menu Settings: Default
• Monitors: 1
• Door Camera: 1
• Power Source: DPS
• Dip Switches: Default
• Menu Settings: Default
