Look-C H424 - RLC Lock Control

17

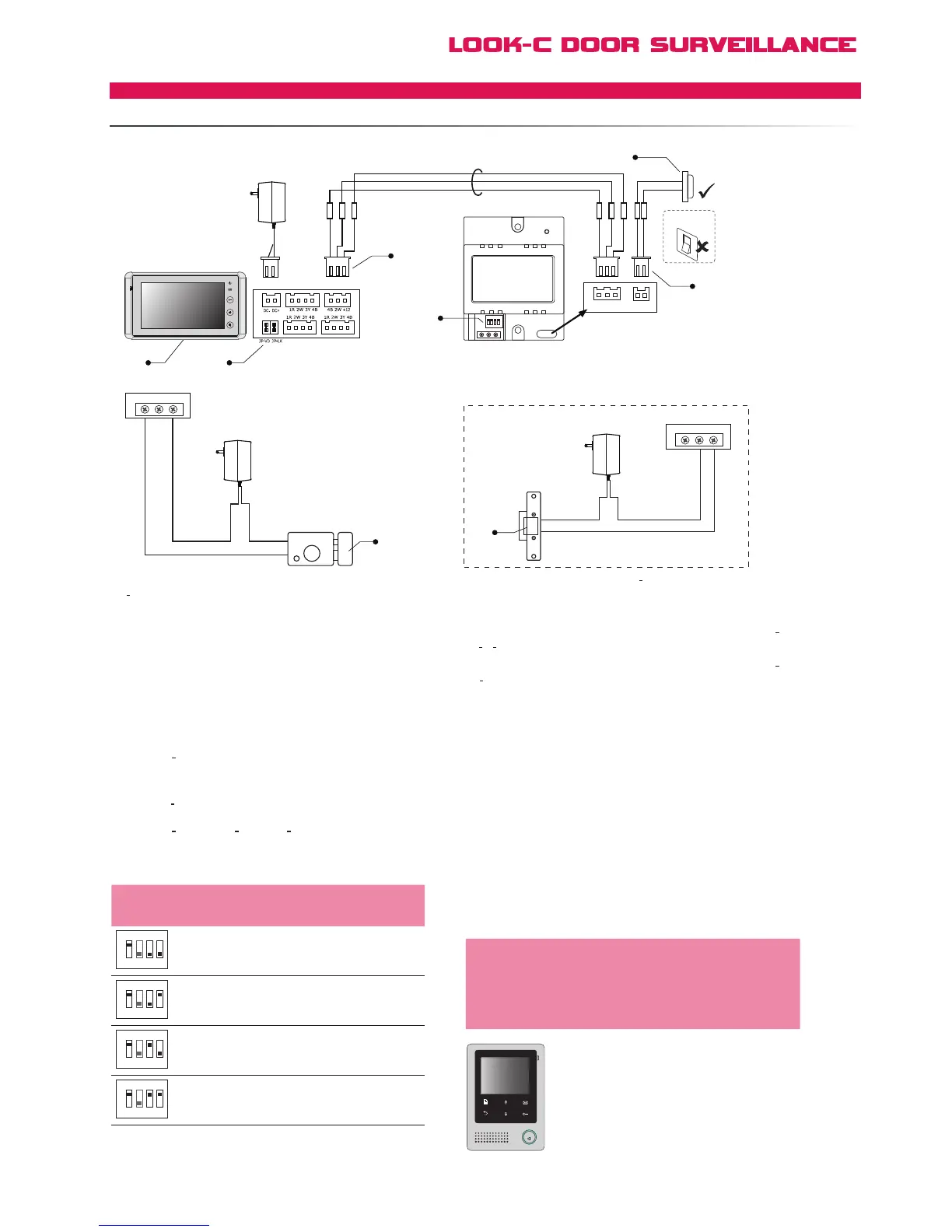

LOOK-C INSTRUCTIONS
RLC to control Lock
Fail-Secure or Fail-Safe type door latch
JS_OS1
CN101 JS_VP JS_AP
JS_OS2
AC ~
Adapter
Button
Switch
Black
Red
White
Black
Red
White
[6]
[4]
[3]
[5]
[2][1]
RLC
1 2 3 4
ON
NO NC COM
4B GND 12V BT
Adapter
[8]
COMNCNO
SecureType:
Power-on-to-Unlock
+
+
-
-
Adapter
[7]
COMNCNO
Safety Type:
Power-off-to-Unlock
+
+
-
-
H4.27 Monitor
1
2
3
4
[1] Only the Monitors with a touch screen can support
VT RLC unit, and settings need to be made to enable the
RLC function.
[2] Connecting RLC unit will not afffect the jamper settings.
[3] Connect the RLC unit to the JS_AP port of Monitor. Note
that Audio Phone can not be supported when using RLC.
[4] DIP switches for Lock/Lamp control settings.
[5] The button connection is Non
polarity.
[6] External button can be connect to the BT port. DO NOT
connect a switch to the BT port.
[7] When connecting a lock with the safety type of Power
off to Unlock, connect to the NC and COM port.
[8] When connecting a lock with the safety type of Power
on to Unlock, connect to the NO and COM port.
DIP state
Fail Secure is Power-On-To Release
This is available standard with a Door Station
(Door station is without Exit Button delay)
Fail-Safe is Power-Off-To-Release
This type requires RLC using NC/COM Contacts
Function descriptions
1 2 3 4
ON
Unlocking time = 10 seconds
1 2 3 4
ON
Unlocking time = 3 seconds
1 2 3 4
ON
Unlocking time = 5 seconds
1 2 3 4
ON
Unlocking time = 1 seconds
DIP settings
● Bit 1: Lamp / Lock select. set to OFF for
lamp control; set to ON for lock control.
● Bit
2: Function reserved.
● Bit
3 and Bit 4: Light on time select, see
table below.
Monitor settings and operations
H427 TIMING
User Setup ->>Installer Setup ->> Unlock Timing
Sets the timing interval that the door catch is
activated for. 0 to 9 Seconds. Default 3 seconds.
User Setup ->>Installer Setup ->> Unlock Auto Off
Sets the timing interval that the Monitor remains on
for, after the door release has finished activating.
0 to 9 Seconds. Default 3 seconds.
TALK
H4.24 Monitor
Not Compatible with
Door Lock Control
4 Wire - Accessories
RLCLOCKCONTROL
