Combination switch

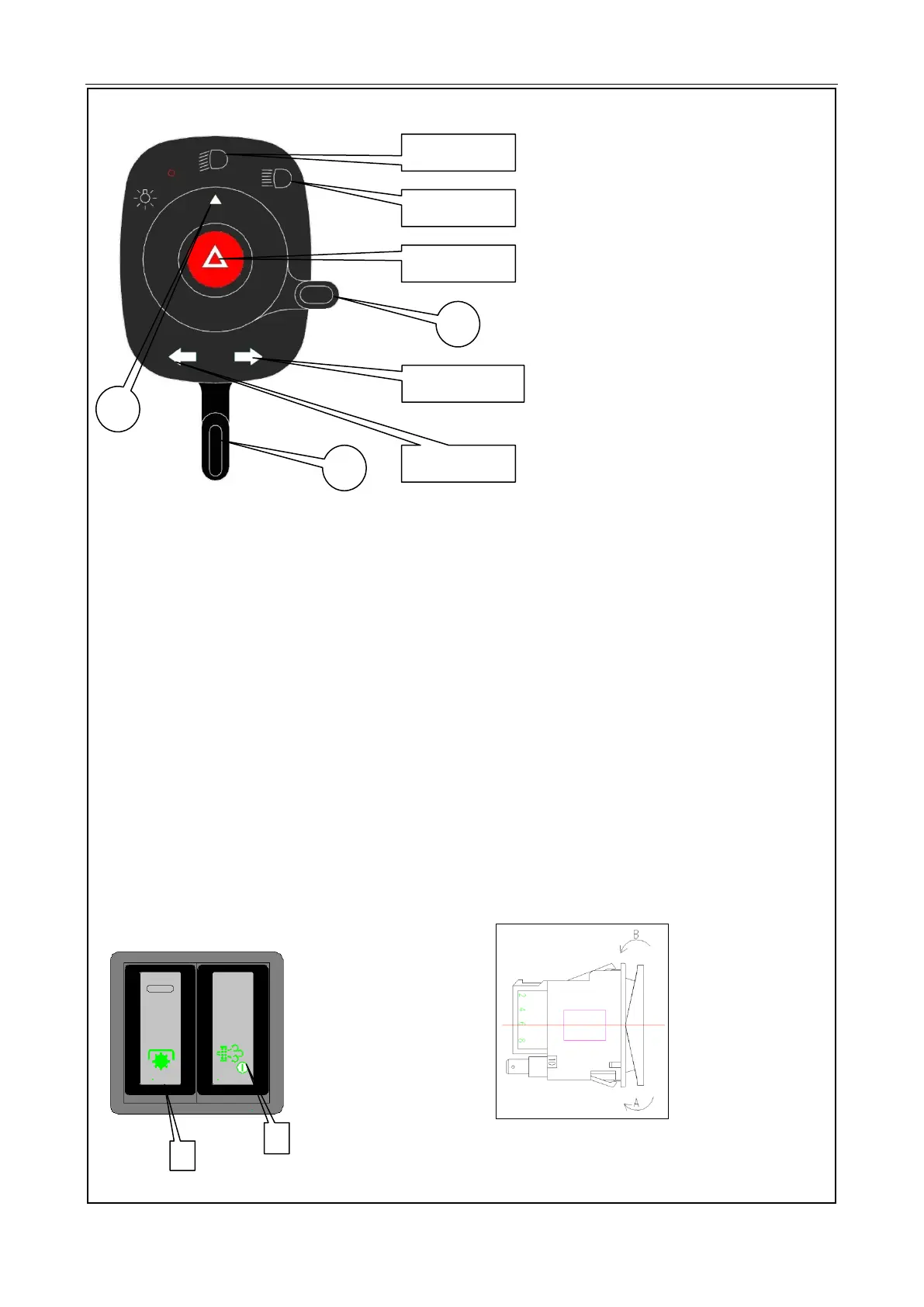

Fig. 3-19 Combination Switch
1. Knob A is used to switch on and off the high and low beam. When the knob A is being rotated, the switch
corresponding to the position to which triangle B points is turned on.
For example, in the position shown in the figure above, triangle B points to the low beam switch, and then
the low beam switch is turned on, with the low beam of the entire vehicle on;
If the triangular B points to the high beam switch, the high beam switch is turned on, the vehicle high beam
is on, and the high beam indicator on the instrument is on;
2 When the vehicle is turning, the left and right turn lights shall be turned on as required.
The left and right steering functions are controlled by knob C,
Move knob C to the left to turn on the left turn switch. At this time, the front and rear left turn indicators of
the entire vehicle are on, the left turn indicators on the instrument are on, and flash at a certain frequency;
Move knob C to the right to turn on the right turn switch. At this time, the front and rear right turn
indicators of the entire vehicle are on, the right turn indicators on the instrument are on, and flash at a
certain frequency;
2. Press the double flash switch downward to turn on the double flash switch, At this time, the front, rear, left
and right turn indicators of the entire vehicle are on, and the left and right turn indicators on the instrument
are on, and flash at a certain frequency.
Lower rocker switch combination
Fig. 3-20 Rocker Switch Combination Fig. 3-21 Operation Method of Rocker Switch
