LSIS SV-iG5A Series User Manual

8-2

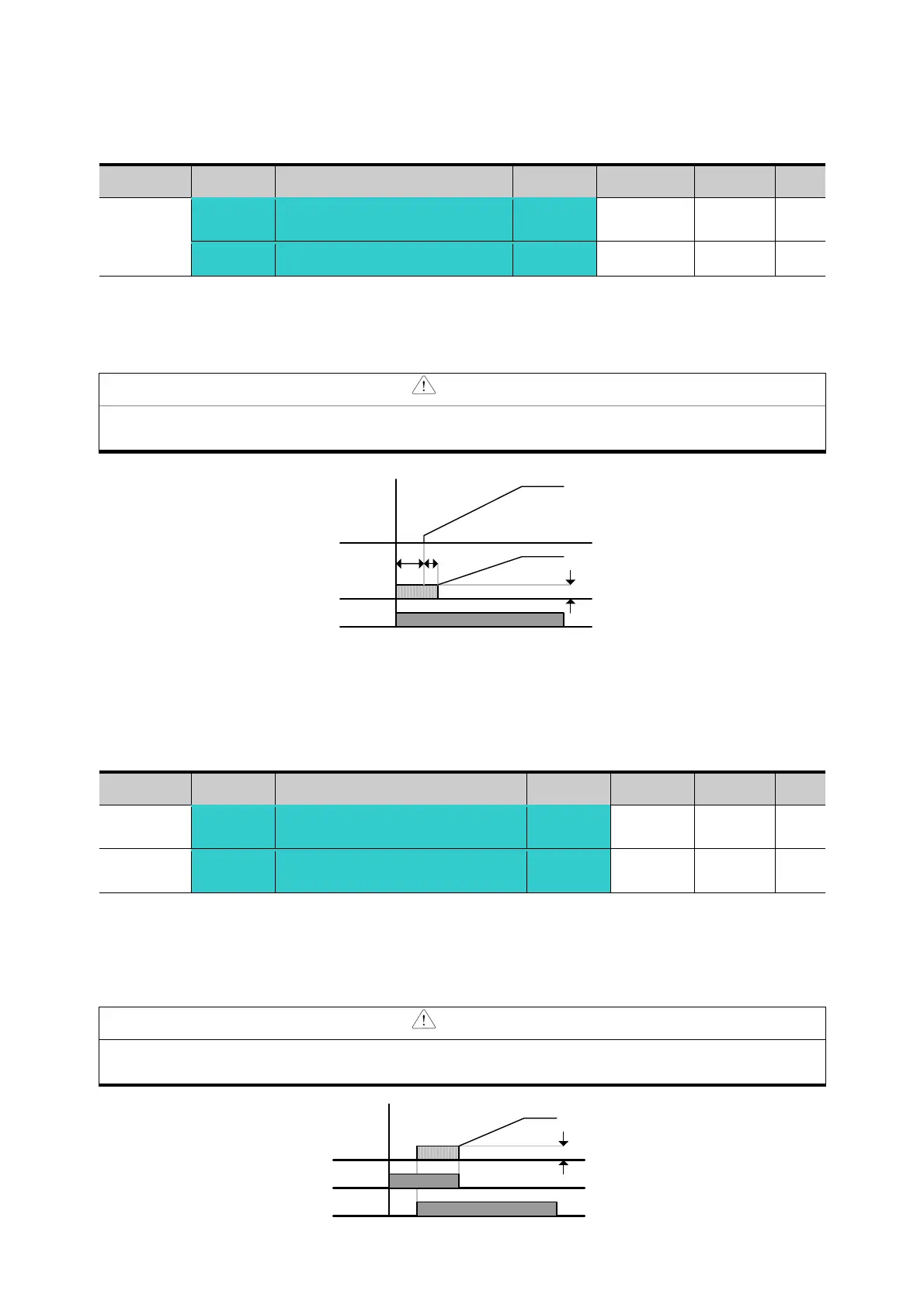

z Starting DC brake
Group Display Parameter Name
Setting
Range Default Unit
Function
group 1
F12 [DC Brake start voltage] -
0 ~ 200 50 %
F13 [DC Brake start time] -
0 ~ 60 0 sec
 F12: It sets the level as a percent of H33 – [Motor rated current].
 F13: Motor accelerates after DC voltage is applied for the set time.
CAUTION
If excessive DC Brake voltage is set or DC Brake time is set too long, it may cause motor
overheating and damage to the motor.
 Setting F12 or F13 to 0 will disable Starting DC brake.
 t: After F13 - [DC Brake start time], the frequency is increasing after DC voltage is applied until
the time t.
z DC brake at a stop
Group Display Parameter Name Setting Range Default Unit
Function
group 1
F12 [DC Brake start voltage] -
0 ~ 200 50 %
I/O group
I19
[Multi-function Input
terminal P3 Function select]
11
0 ~ 25 2
 F12: It sets the level as a percent of H33 – [Motor rated current].
 Select a terminal to issue a command of DC brake at a stop among P1 to P8.
 If P3 terminal is set for this function, set I19 to 11 {DC brake during stop}.
CAUTION
If excessive DC Brake voltage is set or DC Brake time is set too long, it may cause motor
overheating and damage to the motor.
Freq.
Voltage
Run
command
F13 t
F12
Voltage
Run
command
F12
P3
