LSIS SV-iG5A Series User Manual

8-4

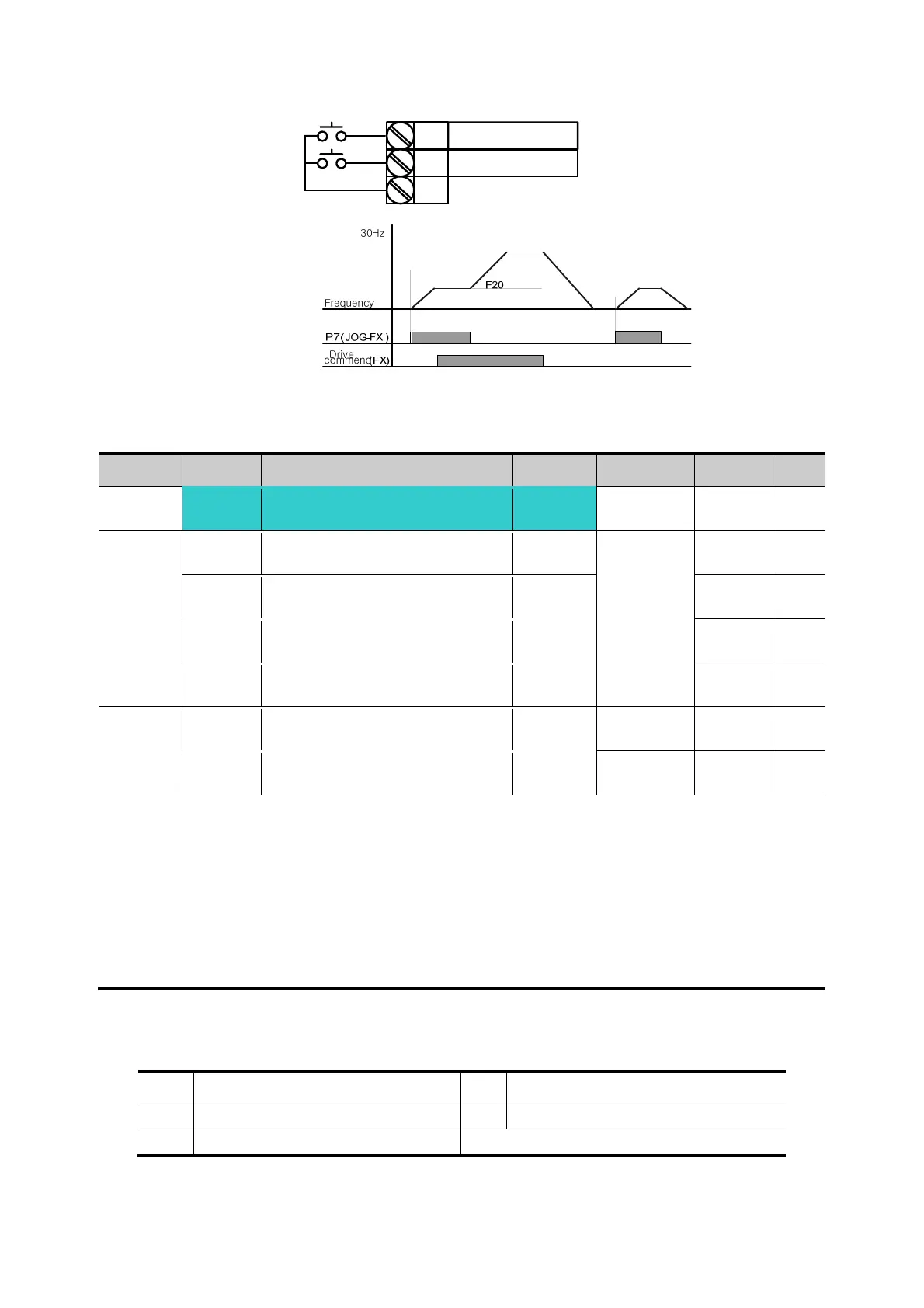

P1
P7
CM
FX : I 17 = 0
JOG : I23=26
8.3 UP-DOWN Drive
z Up-down storage function
Group Display Parameter Name Setting Range Default Unit
Drive
group
Frq [Frequency setting method] 8
0~8 0
I/O
group
I17
[Multi-function input
terminal P1 define]
0
0 ~ 27
0
I22
[Multi-function input
terminal P6 define]
25
5
I23
[Multi-function input
terminal P7define]
15
6
I24
[Multi-function input
terminal P8define]
16
7
Function
group 1
F63
[Up-down frequency Save
select]
-
0~1 0
F64
[Up-down frequency
storage]
-
0.00
 Select 8 in Frq code of drive group
 Select the terminal which uses as a up-down drive among multi-function input (P1~P8)
 If you select P7 and P8 as an up-down drive terminal, select each 15 (frequency increase
command) and 16 (frequency decrease command) in the I23 and I24 of I/O group.
 If you select P6 terminal as an up-own save initial terminal, select 25 (up-down save
initialization) as above.
 Up/down Save function: If F63, ‘Save up/down frequency’, is set to 1, the frequency before
the inverter was stopped or decelerated is saved in F64.
 While up-down save operates, the user can initialize the saved up-down frequency by setting
multi-function input terminal as a up-down frequency save initialization.
F63 Save up/down frequency select 0 Remove ‘save up/down frequency’
1 Set ‘save up/down frequency’
F64 Save up/down frequency Up/down frequency saved
 If ‘Up/Down Save Frequency Initialization’ signal is input while the multi-function input ‘Up’ or
‘Down’ function is applied, this signal is ignored.
