7-8

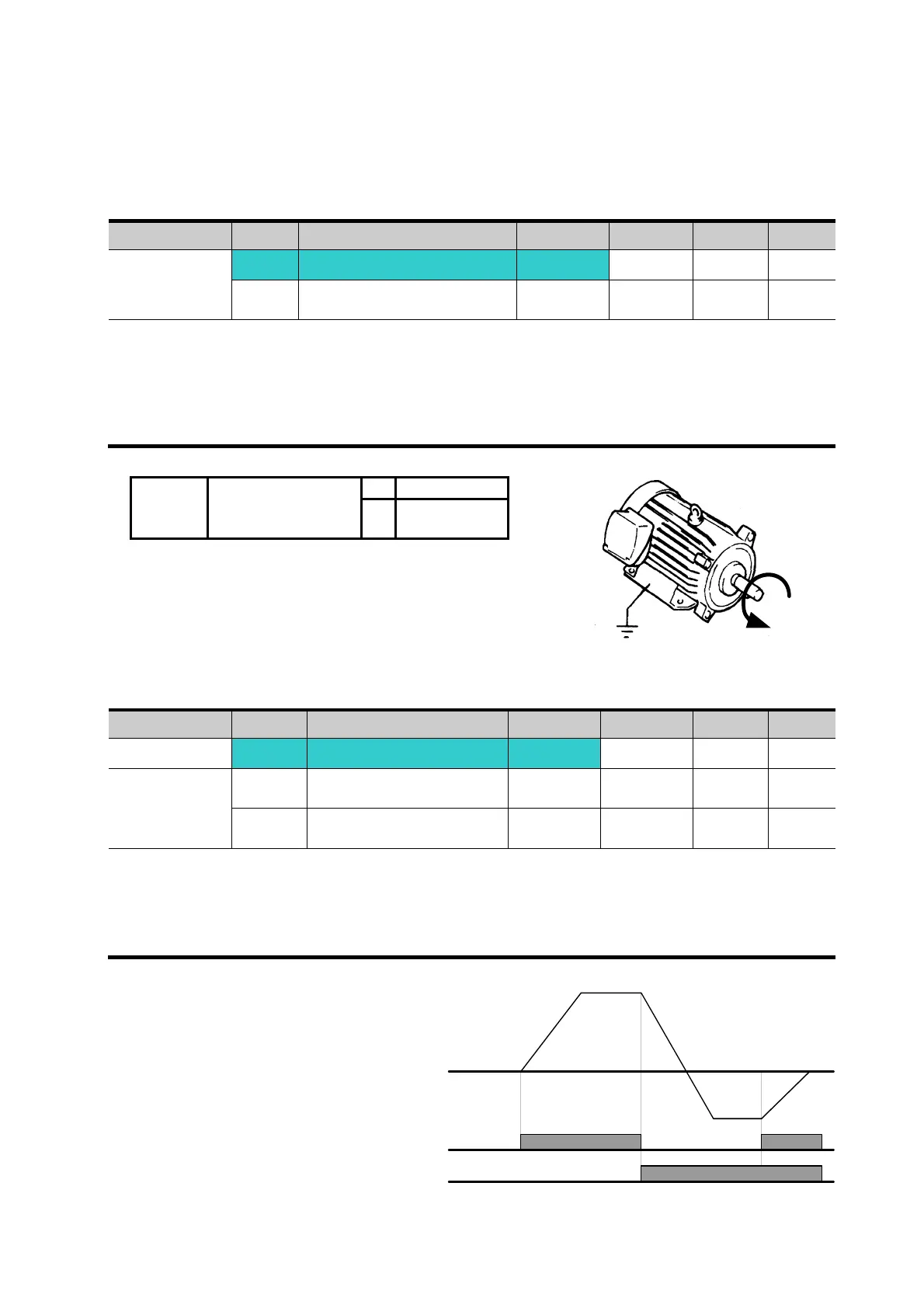

7.3 Operating command setting method
z Operation via keypad RUN key and STOP/RST key
Group Code Parameter Name Setting Range Initial Unit
Drive group
drv [Drive mode] 0
0 ~ 3 1
drC
[Direction of motor rotation
select]
- F, r F
Set drv – [Drive mode] to 0.
Acceleration is started upon pressing the Run key while operating frequency is set. Motor
decelerates to stop by pressing the STOP/RST key.
Selecting rotation direction is available at drC - [Direction of motor rotation select] when
operating command is issued via keypad.
drC
[Direction of
motor rotation
select]
F Forward
r Reverse
When remote keypad is connected, body-embedded keypad
is deactivated.
z Operating command via FX, RX terminal 1
Group Code Parameter Name Setting Range Initial Unit
Drive group
drv [Drive mode] 1
0 ~ 3 1
I/O group I17
[Multi-function input
terminal P1 define]
0 0 ~ 27 0
I18
[Multi-function input
terminal P2 define]
1 0 ~ 27 1
Set drv – [Drive mode] to 1.
Set I17 and I18 to 0 and 1 to use P1 and P2 as FX and RX terminals.
“FX” is Forward run command and “RX” Reverse run.
Motor is stopped when FX/RX terminal is
ON/OFF at the same time.
Forward :
Counter-clockwise
FX
RX
Freq.
