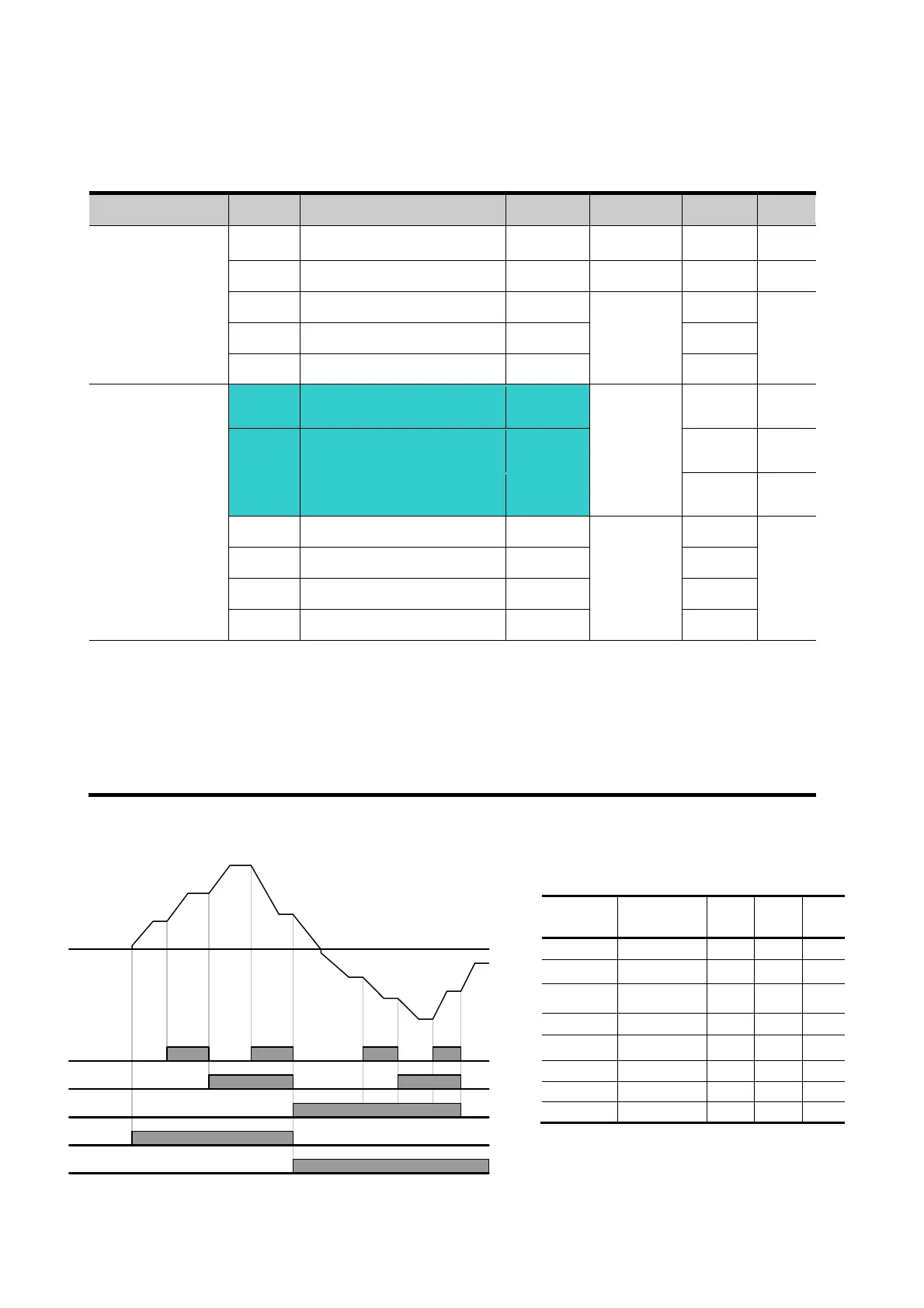

7.2 Multi-Step Frequency setting
Group Code Parameter Name Setting Range Initial Unit
Drive group 0.0 [Frequency Command] 5.0 0 ~ 400 0.00 Hz
Frq [Frequency Mode] 0 0 ~ 8 0 -
St1
[Multi-Step frequency 1]
-
0 ~ 400
10.00
Hz
St2
[Multi-Step frequency 2]
- 20.00
St3
[Multi-Step frequency 3]
- 30.00
I/O group
I22
[Multi-function input
terminal P6 define]
5
0 ~ 24
5 -
I23
[Multi-function input
terminal P7 define]
6
6 -
I24
[Multi-function input
terminal P8 define]
7
7 -
I30
[Multi-Step frequency 4]
-
0 ~ 400
30.00
Hz
I31
[Multi-Step frequency 5]
- 25.00
I32
[Multi-Step frequency 6]
- 20.00
I33
[Multi-Step frequency 7]
- 15.00
 Select a terminal to give Multi-step frequency command among P1-P8 terminals.
 If terminals P6-P8 are selected, set I22-I24 to 5-7 to give Multi-step frequency command.
 Multi-step frequency 0 is settable in Frq – [Frequency mode] and 0.00 – [Frequency
command].
 Multi-step frequency 1-3 are set at St1-St3 in Drive group, while Step frequency 4-7 are
set at I30-I33 in I/O group.
Step
freq.
FX or RX P8 P7 P6
0
9
- - -
1
9
- -
9
2
9
-
9
-
3
9
-
9 9
4
9 9
- -
5
9 9
-
9
6
9 9 9
-
7
9 9 9 9
Freq.
P6
P7
P8
FX
RX
Step
0
Step
1
S
te
p
2
Step
3
Step
4
Step
5
Step
6
Step
7
Step
0
