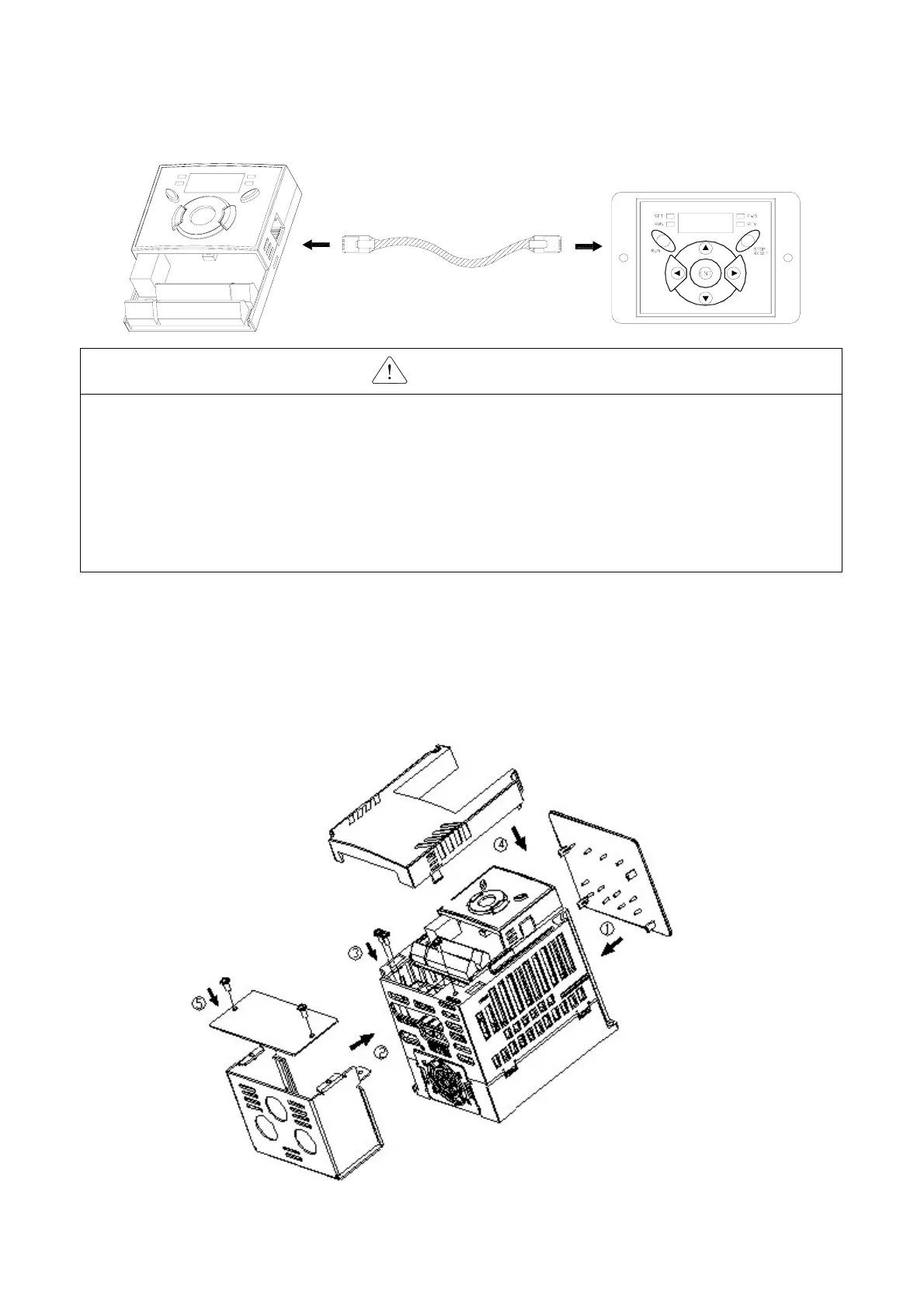

3) Connect the other side of the remote cable to the remote keypad as shown below.
z Without Parameter Read(H91), Parameter Write(H92) is not available since the Remote
memory is empty when the Remote keypad is first used.
z Do not use the remote cable other than standard LS’. Otherwise, malfunction may occur due
to noise input or voltage drop in the keypad.
z Check for disconnection of the communication cable and/or poor cable connection if “----“ is
displayed on the 7-segment display of the Remote keypad.
z When Parameter Read(H91) is executed, “rd”(Read) and “wr”(Verifiy) is displayed
successively on the 7-segment display of the Remote keypad. On the other hand, when
Parameter Write(H92) is executed, “wr”(Write) is displayed only.
13.4 Conduit Kit
z Installation
1) SV004IG5A-1, SV008IG5A-1, SV015IG5A-1, SV004IG5A-2, SV008IG5A-2, SV015IG5A-2,
SV022IG5A-2, SV037IG5A-2, SV040IG5A-2, SV004IG5A-4, SV008IG5A-4, SV015IG5A-4,
SV022IG5A-4, SV037IG5A-4, SV040IG5A-4
