7-9

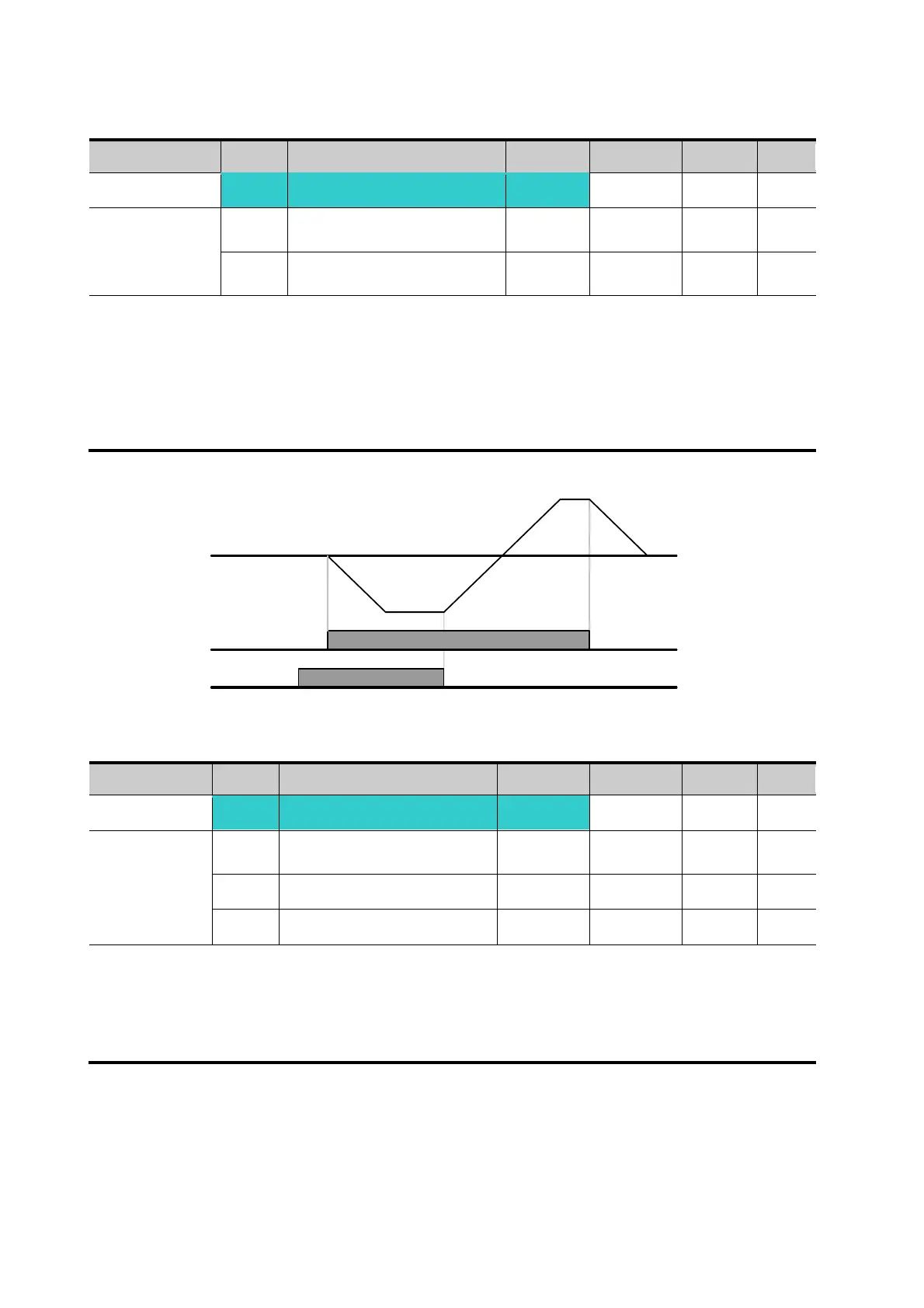

z Operating command via FX, RX terminal 2
Group Code Parameter Name Setting Range Initial Unit
Drive group
drv [Drive mode] 2
0 ~ 3 1
I/O group I17
[Multi-function input
terminal P1 define]
0 0 ~ 27 0
I18
[Multi-function input
terminal P2 define]
1 0 ~ 27 1
Set the drv to 2.
Set I17 and I18 to 0 and 1 to use P1 and P2 as FX and RX terminals.
FX: Operating command setting. Motor runs in forward direction when RX terminal (P2) is
OFF.
RX: Direction of motor rotation select. Motor runs in reverse direction when RX terminal
(P2) is ON.
z Operating command via RS485 communication
Group Code Parameter Name Setting Range Initial Unit
Drive group
drv [Drive mode] 3
0 ~ 3 1
I/O group I59
[Communication protocol
select]
- 0 ~ 1 0
I60 [Inverter number] - 1 ~ 250 1
I61 [Baud rate] - 0 ~ 4 3
Set the drv to 3.
Set I59, I60 and I61correctly.
Inverter operation is performed via RS485 communication.
Refer to Chapter. 13, RS485 communication.
