8-17
terminal (MO) and Multi-function relay output (3ABC).

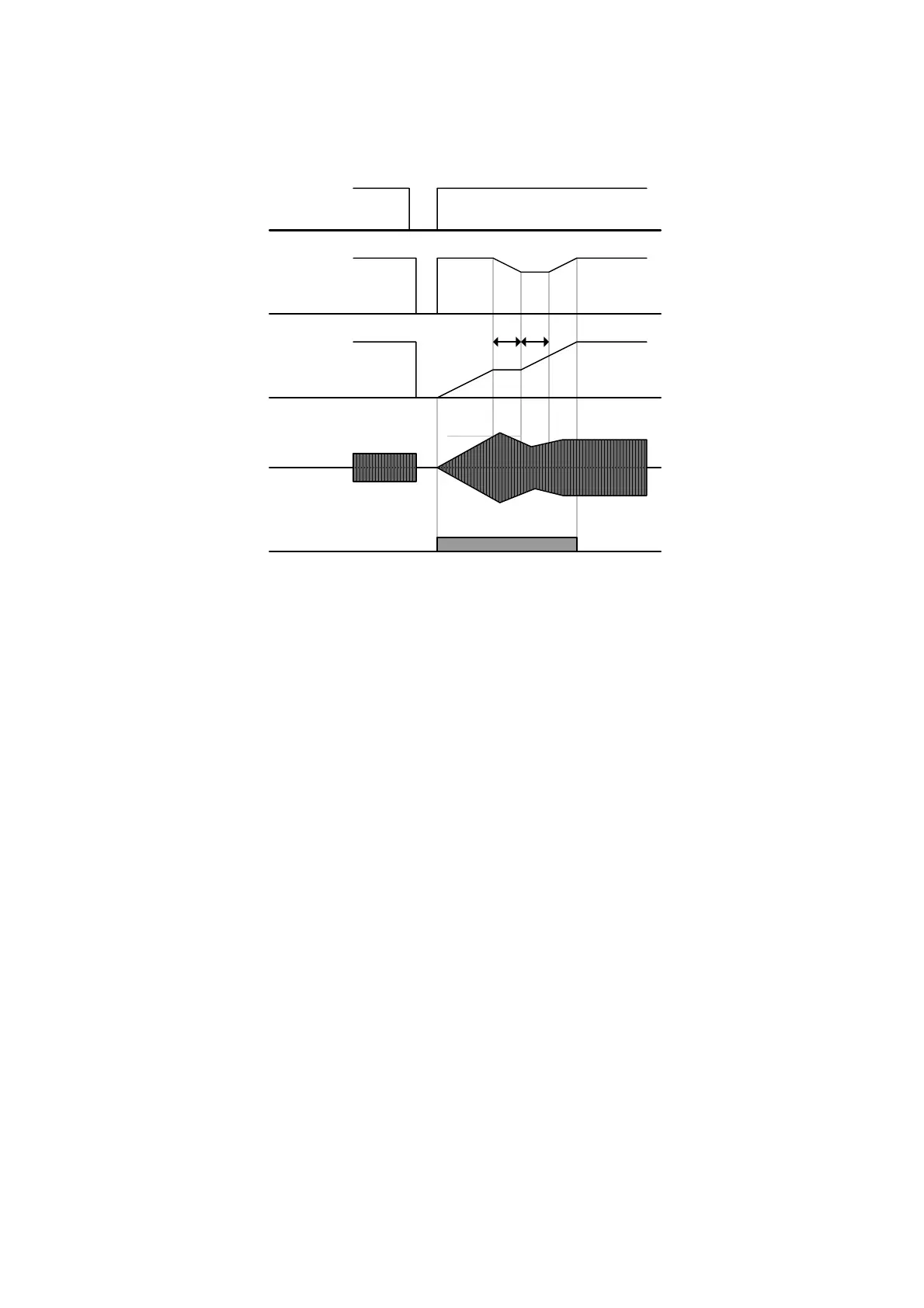

EX) Speed search during Instant Power Failure restart
When the input power is cut off due to instant power failure, the inverter
outputs Low voltage trip (LV) to hold the output.
When the power is restored, the inverter outputs the frequency before the
low voltage trip and the voltage is increased due to PI control.
t1: If current is increasing over the preset level in H23, the rise in voltage
will stop and the frequency is decreased.
t2: If the opposite of t1 occurs, the increase in voltage starts again and the
decrease in frequency stops.
When the frequency and voltage are restored back to the nominal level,
acceleration will continue at the frequency before trip.
Speed search operation is suitable for loads with high inertia. Stop the motor and restart when
friction in load is high.
SV-iG5A keeps normal operation when instant power failure occurs and power is restored in
15msec for the use of its inverter rating.
Inverter DC link voltage can vary depending on output load quantity. Therefore, Low Voltage
trip may occur when instant power failure is maintained over 15msec or output is higher than its
rating.
Instant power failure specification is applied when input voltage to Inverter is 200~230V AC for
200V class, or 380~480V AC for 400V class.
Input
voltage
Frequency
Voltage
Current
H23
t1 t2
Multi-function
output or
Relay
