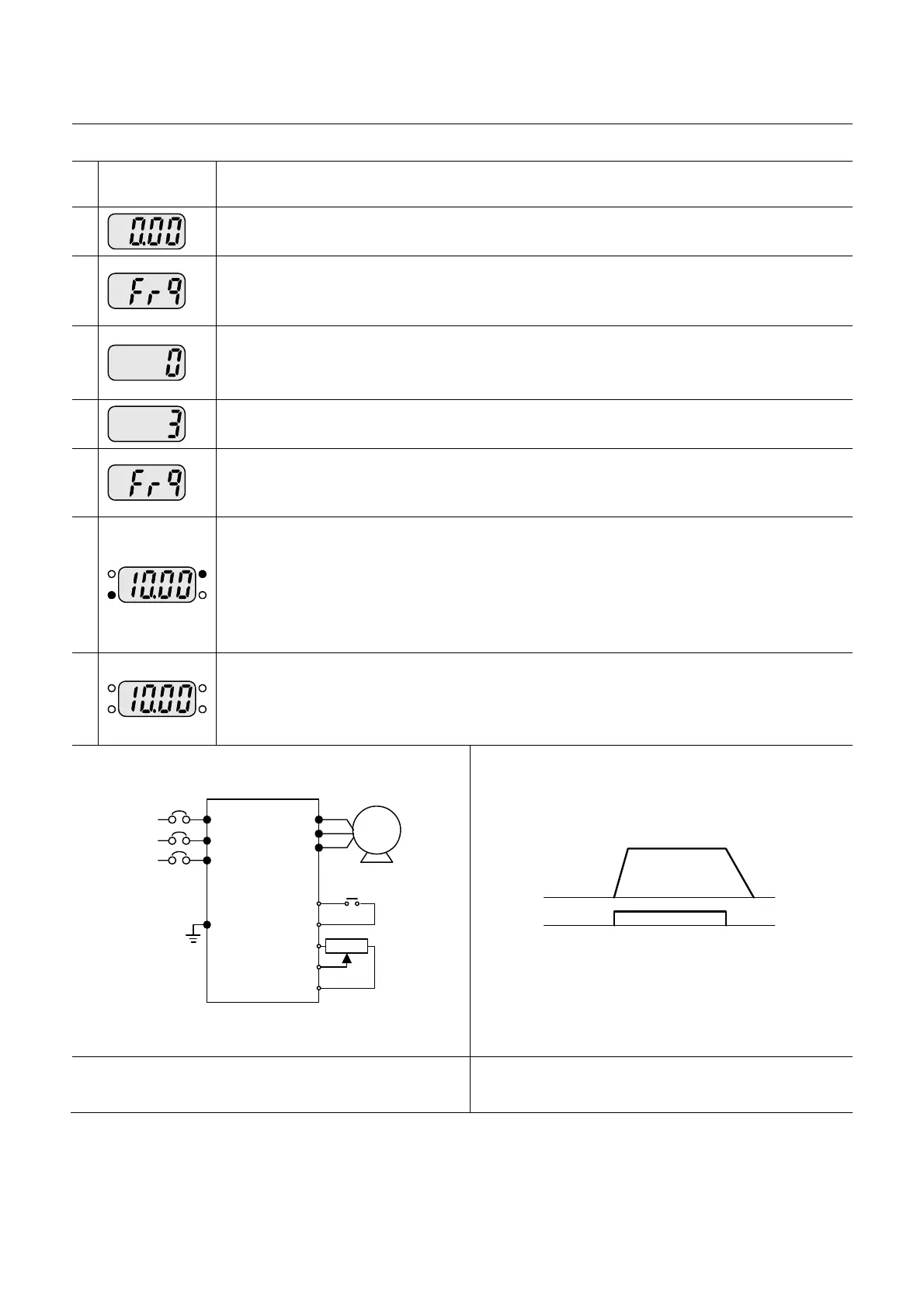

4-14
z Frequency Setting via potentiometer & operating via terminals
1 -. Apply AC input power to the inverter.
2
-. When 0.00 appears Press the Up (S) key four times.
3
-. Frq is displayed. Frequency setting mode is selectable.
-. Press the Ent (z) key once.
4
-. Present setting method is set to 0 (frequency setting via keypad).
-. Press the Up (S) key three times.
5
-. After 3 (Frequency setting via potentiometer) is set, press the Ent (z) key once.
6
-. Frq is redisplayed after 3 stops blinking.
-. Turn the potentiometer to set to 10.00 Hz in either Max or Min direction.
7
-. Turn on the switch between P1 (FX) and CM (See Wiring below).
-. RUN lamp begins to blink with FWD lamp lit and the accelerating frequency is
displayed on the LED.
-. When run frequency 10Hz is reached, the value is displayed as shown left.
-. Turn off the switch between P1 (FX) and CM terminals.
8
-. RUN lamp begins to blink and decelerating frequency is displayed on the LED.
-. When run frequency is reached to 0Hz, Run and FWD lamp turn off and 10.00
is displayed.
3P AC
input
R
S
G
P1(FX)
CM
U
V
W
Motor
T
VR
V1
CM
Freq.
P1(FX)-CM
ON
OFF
10 Hz
Wiring Operating pattern
