Chapter 7 Input/Output Specifications
7-43

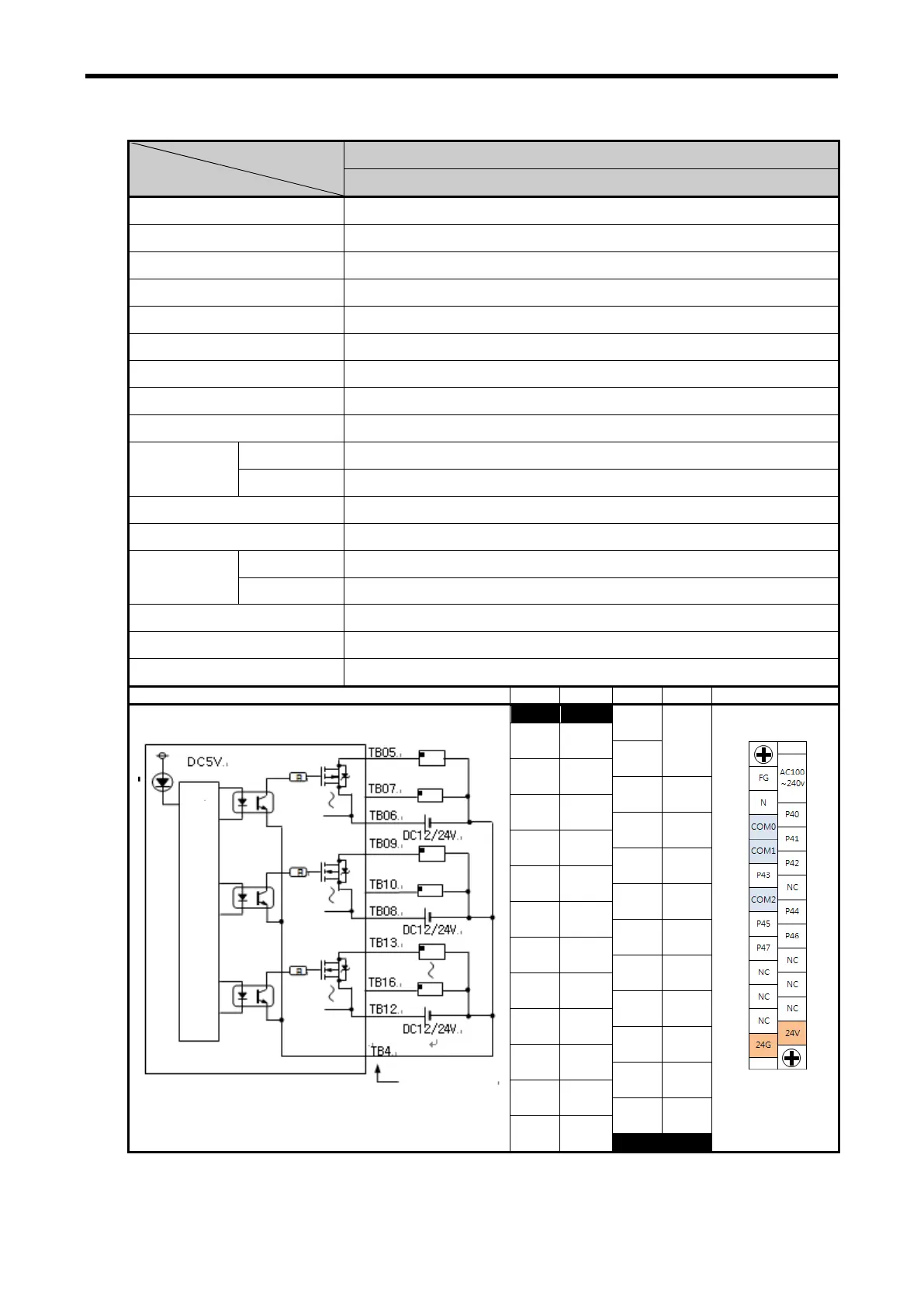

7.3.11 XBC-DP20E 8 point transistor output (Source type)
Model
Specification
Main unit
XBC-DP20E
Output point
8 point
Insulation method
Photo coupler insulation
Rated load voltage
DC 12 / 24V
Operation load voltage range
DC 10.2 ~ 26.4V
Max. load current
0.5A / 1 point, 2A / 1COM
Off leakage current
0.1 ㎃ or less
Max. inrush current
4A / 10 ㎳ or less
Max. voltage drop when On
DC 0.4V or less
Surge absorber
Zener diode
Response
time
Off  On
1 ㎳ or less
On  Off
1 ㎳ or less (rated load, resistive load)
Common method
4 point / COM
Proper wire size
Stranded wire 0.3~0.75 ㎟ (external diameter 2.8 ㎜ or less)
External
power
Voltage
DC12/24V  10% (Ripple voltage 4 Vp-p or less)
Current
25 ㎃ or less (When connecting DC24V)
Operation indicator
LED On when Output On
External connection method
24 point terminal block connector(M3 X 6 screw)
Weight
418g
Circuit configuration
No.
Contact
No.
Contact
Type
TB1
AC100
~240V
TB2
FG
TB3
TB4
N
TB5
40
TB6
COM0
TB7
41
TB8
COM1
TB9
42
TB10
43
TB11
NC
TB12
COM2
TB13
44
TB14
45
TB15
46
TB16
47
TB17
NC
TB18
NC
TB19
NC
TB20
NC
TB21
NC
TB22
NC
TB23
24V
TB24
24G
TB2
TB4
TB6
TB8
TB10
TB12
TB14
TB16
TB18
TB20
TB22
TB24
TB1
TB3
TB5
TB7
TB9
TB11
TB13
TB15
TB17
TB19
TB21
TB23
Internal Circuit
Terminal No.
