LSIS XBC-DR30E - XBC-DN60 SU 24 Point TR Output (Sink Type)

Chapter 7 Input/Output Specifications
7-52

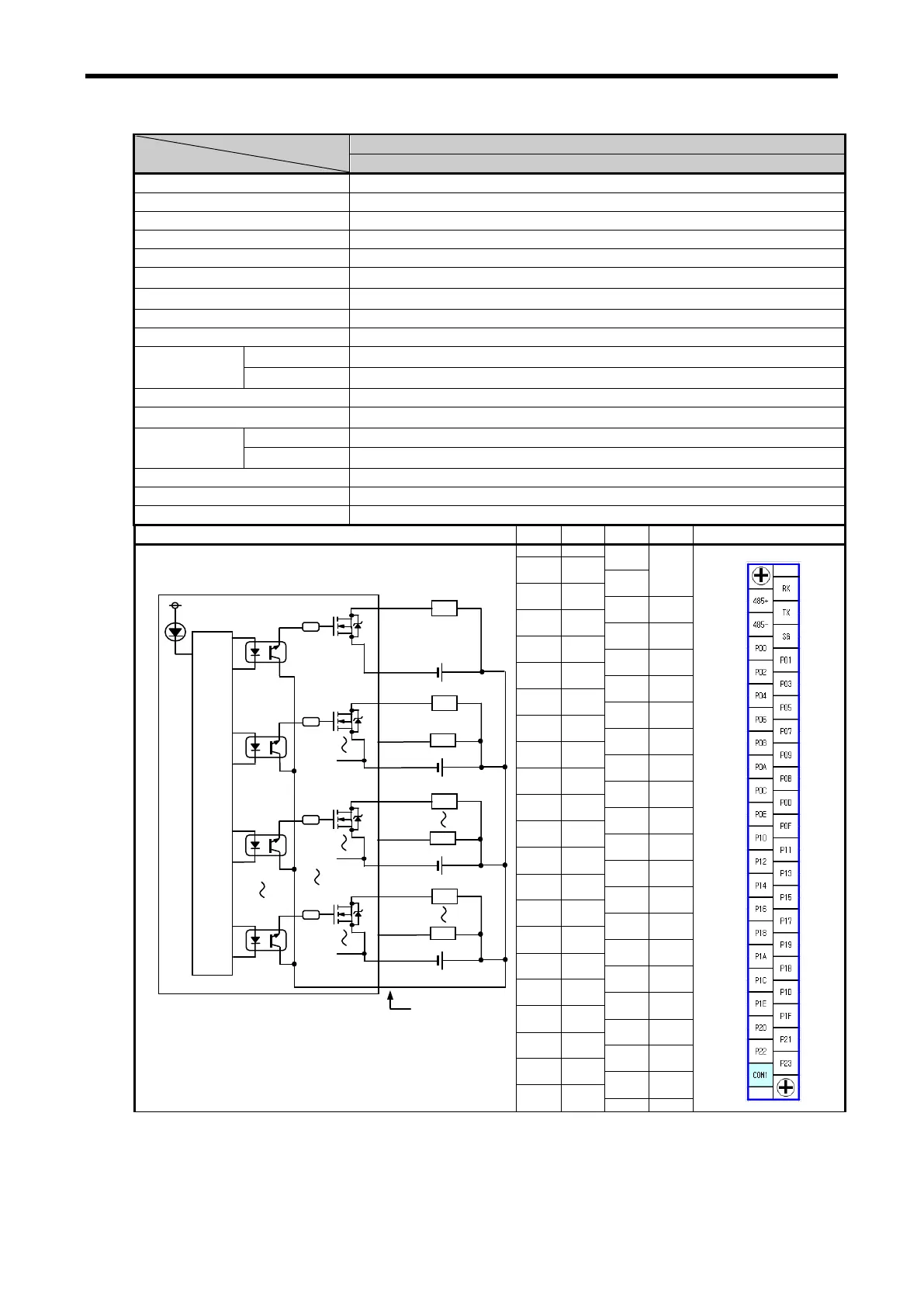

7.3.20 XBC-DN60SU 24 point TR output (Sink type)
Model
Specification
Main unit
XBC-DN60SU
Output point
24 point
Insulation method
Photo-coupler insulation
Rated load voltage
DC 12 / 24V
Load voltage range
DC 10.2 ~ 26.4V
Max. load current
0.5A / 1point, 2A / 1COM (P40, P41: 0.1A / 1point)
Off leakage current
0.1 ㎃ or less
Max. inrush current
4A / 10 ㎳ or less
Max. voltage drop when On
DC 0.4V or less
Surge killer
Zener diode
Response time
Off  On
1 ㎳ or less
On  Off
1 ㎳ or less (rated load, resistive load)
Common method
4 point / COM
Proper cable size
Stranded cable 0.3~0.75 ㎟ (External diameter 2.8 ㎜ or less)
External
supply power
Voltage
DC12/24V  10% (ripple voltage 4 Vp-p or less)
Current
25 ㎃ or less (when connecting DC24V)
Operation indicator
LED On When Output On
External connection method
42 point terminal block connector (M3 X 6 screw)
Weight
636g
Circuit configuration
No.
Contact
No.
Contact
Type
TB1
AC100
~240V
TB2
FG
TB3
TB4
COM0
TB5
40
TB6
COM1
TB7
41
TB8
COM2
TB9
42
TB10
43
TB11
P
TB12
COM3
TB13
44
TB14
45
TB15
46
TB16
47
TB17
NC
TB18
COM4
TB19
48
TB20
49
TB21
4A
TB22
4B
TB23
NC
TB24
COM5
TB25
4C
TB26
4D
TB27
4E
TB28
4F
TB29
NC
TB30
COM6
TB31
50
TB32
51
TB33
52
TB34
53
TB35
NC
TB36
COM7
TB37
54
TB38
55
TB39
56
TB40
57
TB41
24V
TB42
24G
Internal circuit
Terminal
block no.
TB11
DC12/24V
R
L
TB05
TB04
DC12/24V
R
L
TB9
L
TB10
TB08
DC12/24V
R
L
TB13
L
TB16
TB12
DC12/24V
R
L
TB37
L
TB40
TB36
L
E
D
DC5V
TB1
TB3
TB5
TB7
TB9
TB11
TB13
TB15
TB17
TB19
TB21
TB23
TB25
TB27
TB29
TB2
TB4
TB6
TB8
TB10
TB12
TB14
TB16
TB18
TB20
TB22
TB24
TB26
TB28
9
TB30
TB30
TB32
TB34
TB36
TB38
TB40
TB42
TB33
TB35
TB37
TB39
TB31
TB41
