LSIS XBC-DR30E - XBC-DP30 SU 12 Point Transistor Output (Source Type)

Chapter 7 Input/Output Specifications
7-54

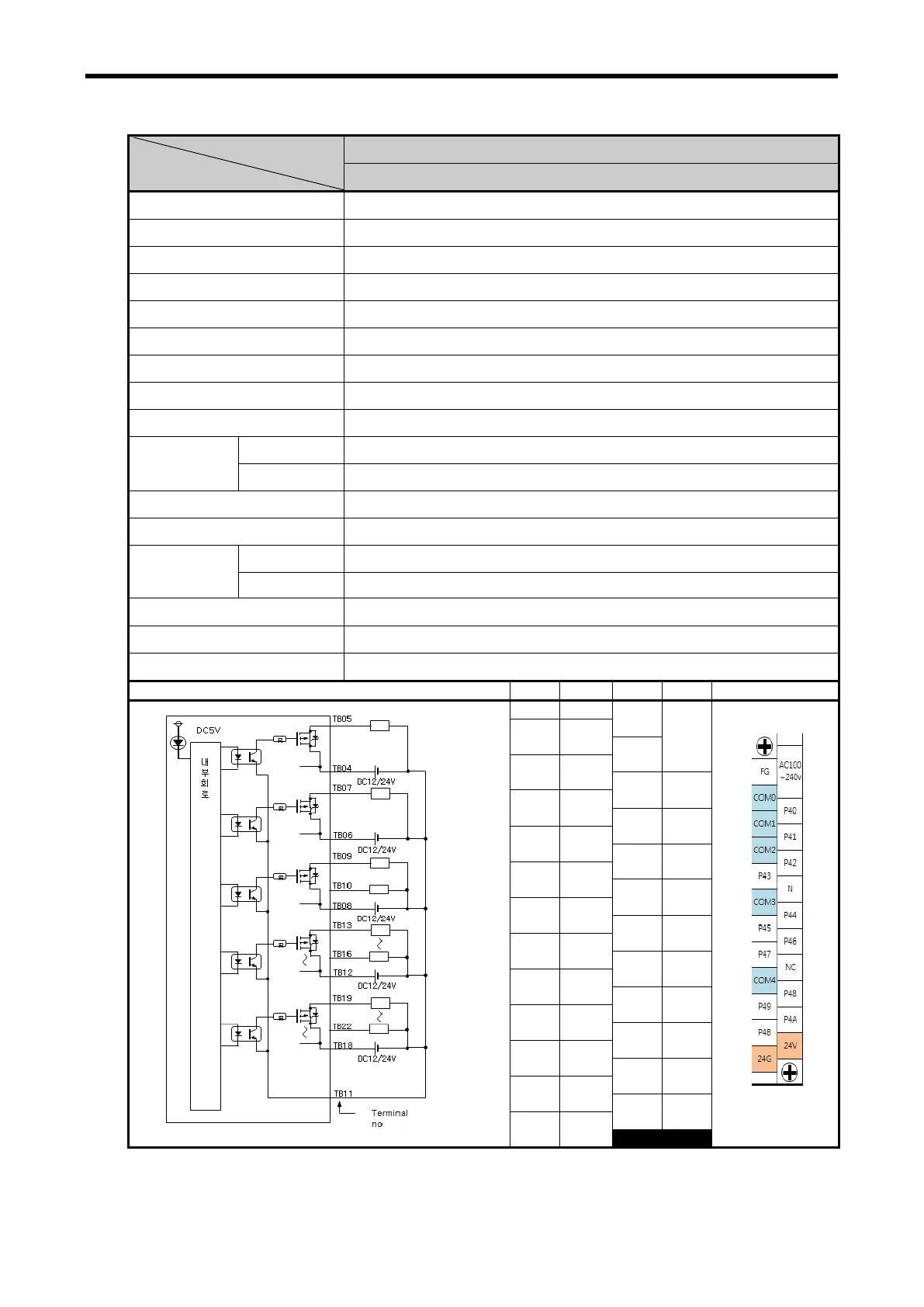

7.3.22 XBC-DP30SU 12 point transistor output (Source type)
Model
Specification
Main unit
XBC-DP30SU
Output point
12 point
Insulation method
Photo coupler insulation
Rated load voltage
DC 12 / 24V
Operation load voltage range
DC 10.2 ~ 26.4V
Max. load current
0.5A / 1point, 2A / 1COM (P40, P41: 0.1A / 1point)
Off leakage current
0.1 ㎃ (AC220V, 60 ㎐)
Max. inrush current
4A / 10 ㎳ or less
Max. voltage drop when On
DC 0.4V or less
Surge absorber
Zener diode
Response
time
Off  On
1 ㎳ or less
On  Off
1 ㎳ or less (rated load, resistive load)
Common method
4 point / COM
Proper wire size
Stranded wire 0.3~0.75 ㎟ (external diameter 2.8 ㎜ or less)
External
power
Voltage
DC12/24V  10% (Ripple voltage 4 Vp-p or less)
Current
25 ㎃ or less (When connecting DC24V)
Operation indicator
LED On when Output On
External connection method
24 point terminal block connector(M3 X 6 screw)
Weight
475g
Circuit configuration
No.
Contact
No.
Contact
Type
TB1
AC100
~240V
TB2
FG
TB3
TB4
COM0
TB5
40
TB6
COM1
TB7
41
TB8
COM2
TB9
42
TB10
43
TB11
P
TB12
COM3
TB13
44
TB14
45
TB15
46
TB16
47
TB17
NC
TB18
COM4
TB19
48
TB20
49
TB21
4A
TB22
4B
TB23
24V
TB24
24G
TB2
TB4
TB6
TB8
TB10
TB12
TB14
TB16
TB18
TB20
TB22
TB24
TB1
TB3
TB5
TB7
TB9
TB11
TB13
TB15
TB17
TB19
TB21
TB23
