Chapter 15 Troubleshooting

15-2

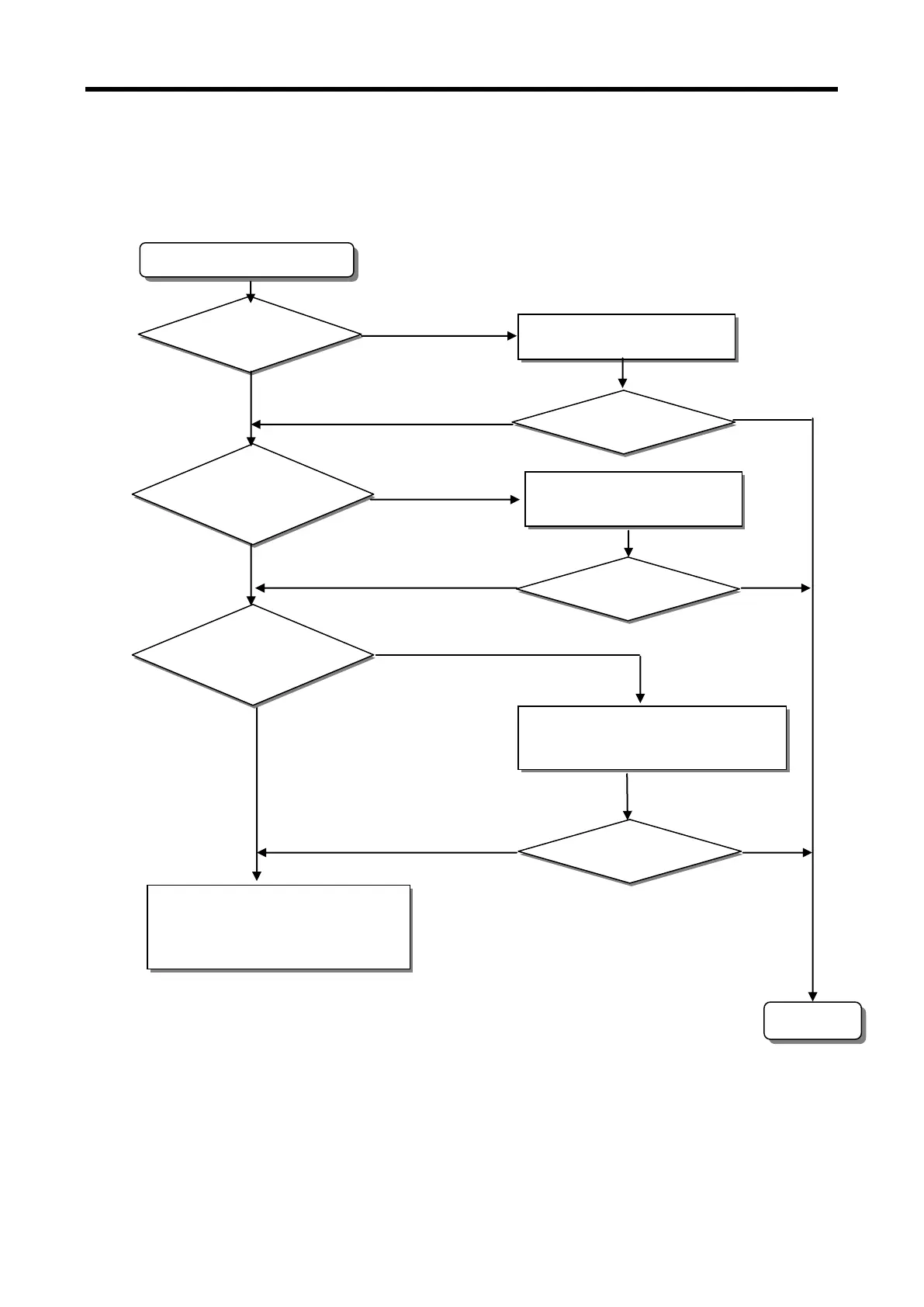

15.2.1 Troubleshooting flowchart used when the PWR (Power) LED turns Off.

The following flowchart explains corrective action procedure used when the power is supplied or the power LED

turns Off during operation.

Yes

Power LED is turned Off.

Is the power supply

operating?

Is the voltage within the

rated power?

Write down the troubleshooting

Questionnaire and contact

the nearest service center.

Supply the power.

Does the power LED

turns On?

Supply the power

properly.

Does the power LED

turns On?

1) Eliminate the excess current

2) Switch the input power Off then

On.

Does the power LED

turns On?

Yes

Complete

Over current protection

device activated?
