Appendix 4 Instruction List
App. 4-34

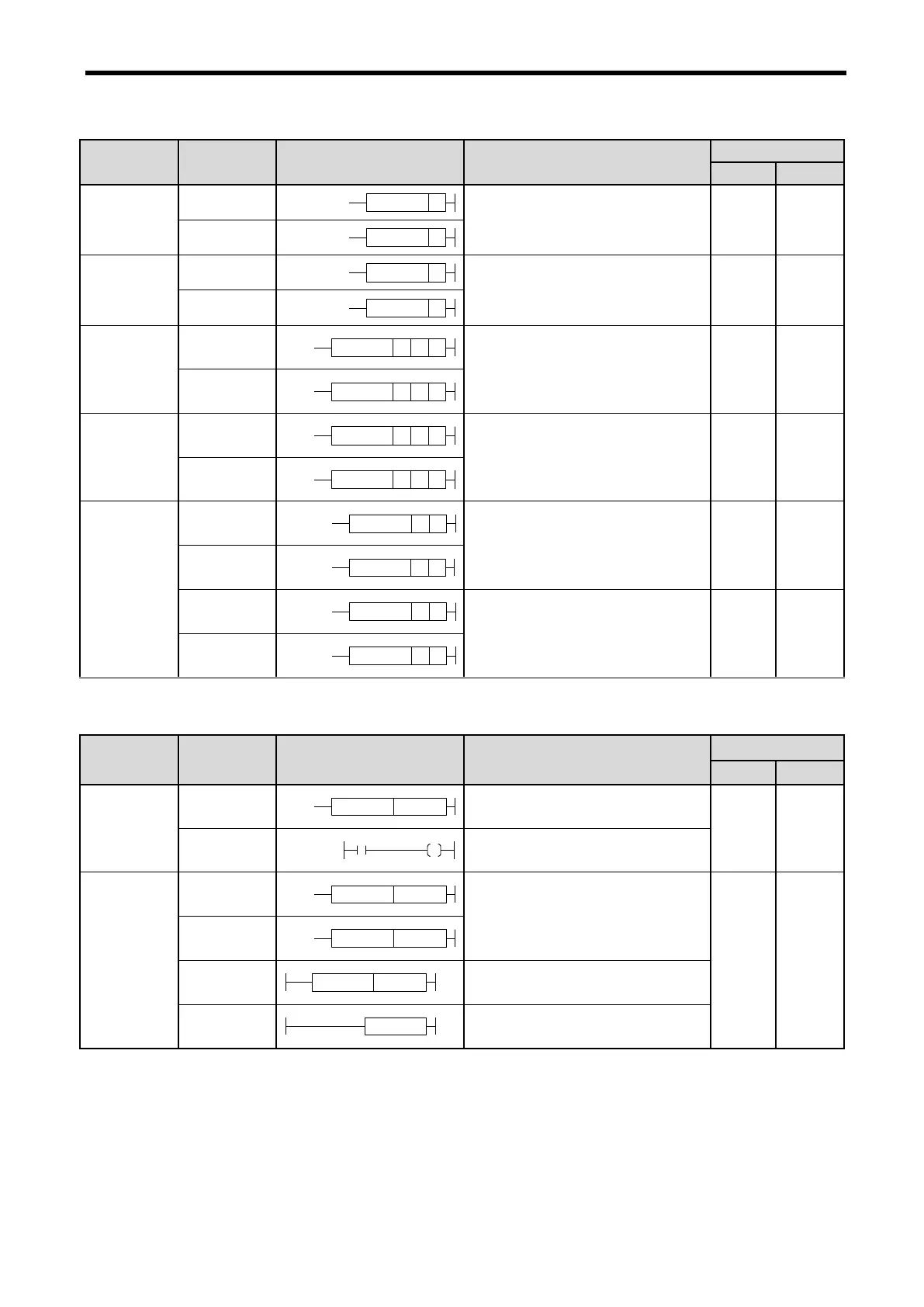

(18) Time related instruction
Classification
Designations
Symbol
Description
Support
XGK
XGB
Date/Time
Data
Read
DATERD
DATERD D
Reads PLC Time to save in D ~ D+6
(Yr/Mn/Dt/Hr/Mn/Sd/Day)
○
X
DATERDP
DATERDP D
Date/Time
Data
Write
DATEWR
DATEWR S
Input
S ~ S+6’s Time Data in PLC
(Yr/Mn/Dt/Hr/Mn/Sd/Day)
○
X
DATEWRP
DATEWRP S
Time Data
Increase
ADDCLK
ADDCLK DS2S1
Adds S1 ~ S1+2 & S2 ~ S2+2 Time
Data to save in D ~ D+2 in Time
Data format (Hr/Mn/Sd)
○
X
ADDCLKP
ADDCLKP DS2S1
Time Data
Decrease
SUBCLK
SUBCLK DS2S1
Extracts S2 ~ S2+2’s Time Data from
S1 ~ S1+2 to save in D ~ D+2 in
Time Data format (Hr/Mn/Sd)
○
X
SUBCLKP
SUBCLKP DS2S1
Time Data
Format
Conversion
SECOND
SECOND DS
Converts Time Data S ~ S+2 to
seconds to save in double word D
○
X
SECONDP
SECONDP DS
HOUR
HOUR DS
Converts the seconds saved in
double word S to Hr/Mn/Sd to save
in D ~ D+2
○
X
HOURP
HOURP DS
(19) Divergence instruction
Classification
Designations
Symbol
Description
Support
XGK
XGB
Divergence
Instruction
JMP
JMP LABEL
Jumps to LABEL location
○
○
LABEL
LABEL
Jumps and designates the location
to move to
Subroutine
Call Functional
CALL
CALL LABEL
Calls Function applicable to LABEL
○
○
CALLP
CALLP LABEL
SBRT
SBRT LABEL
Designates Function to be called by
CALL
RET
RET
RETURN
