Chapter 4 RTD Input Module (XBF-RD04A, XBF-RD01A)

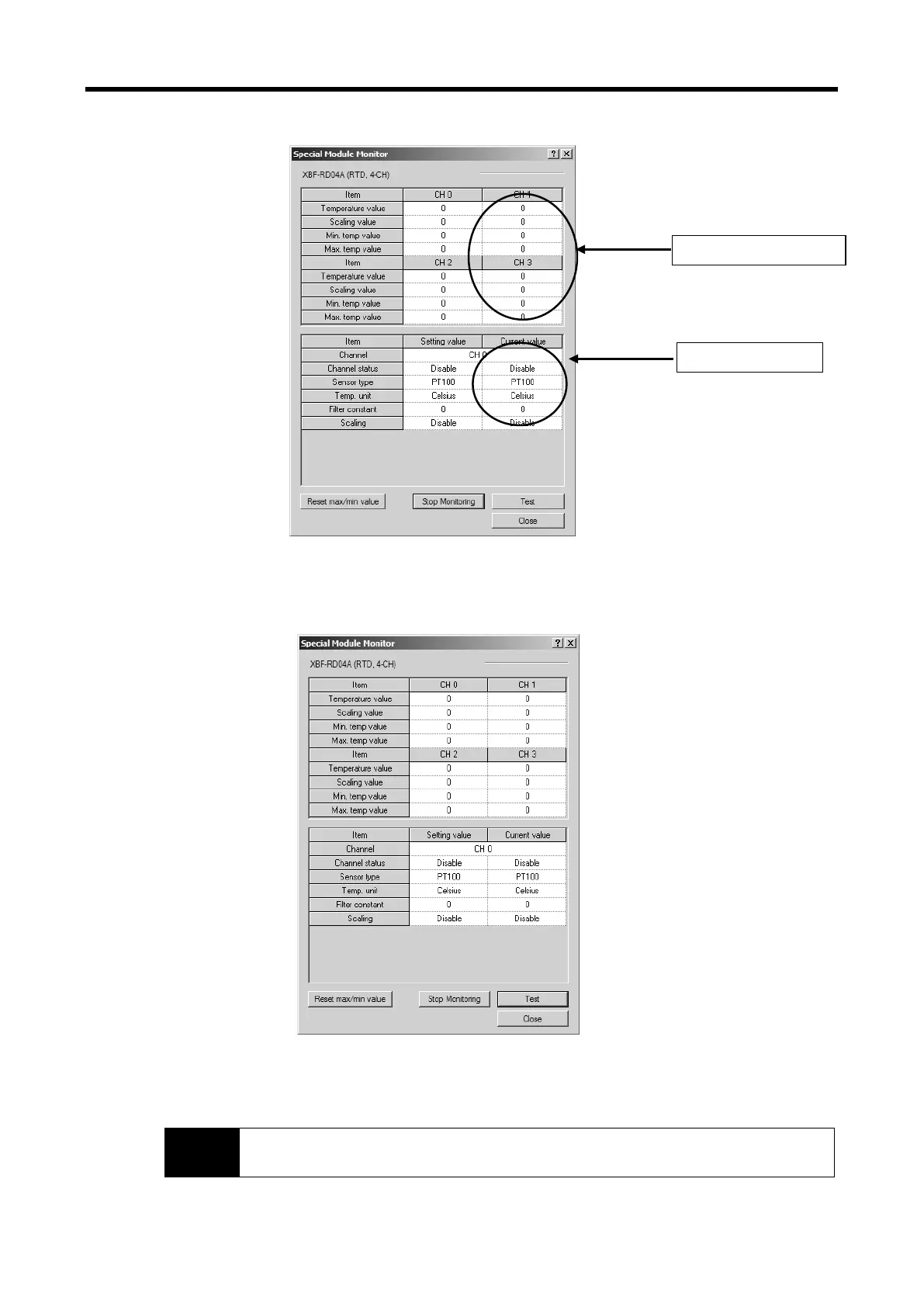

(d) [Start Monitoring]: [Start Monitoring] button will show you digital input data of the operating
channel. The figure below is monitoring screen when all channels are Run status.
[Start Monitoring] execution screen
(e) [Test]: [Test] is used to change the parameters of the RTD input module. You can change the
parameters when you click the values at the bottom of the screen. It is only available when
XGB CPU unit’s status is in [Stop].
[Test] execution screen
(g) [Close]: [Close] is used to escape from the monitoring/test screen. When the monitoring/test
screen is closed, the max. value, the min. value and the present value will not be saved any
more.
Remark
[Test] function is only available when XGB CPU unit’s status is in [Stop]
4 - 17
