XGB Analog edition manual
3 - 4

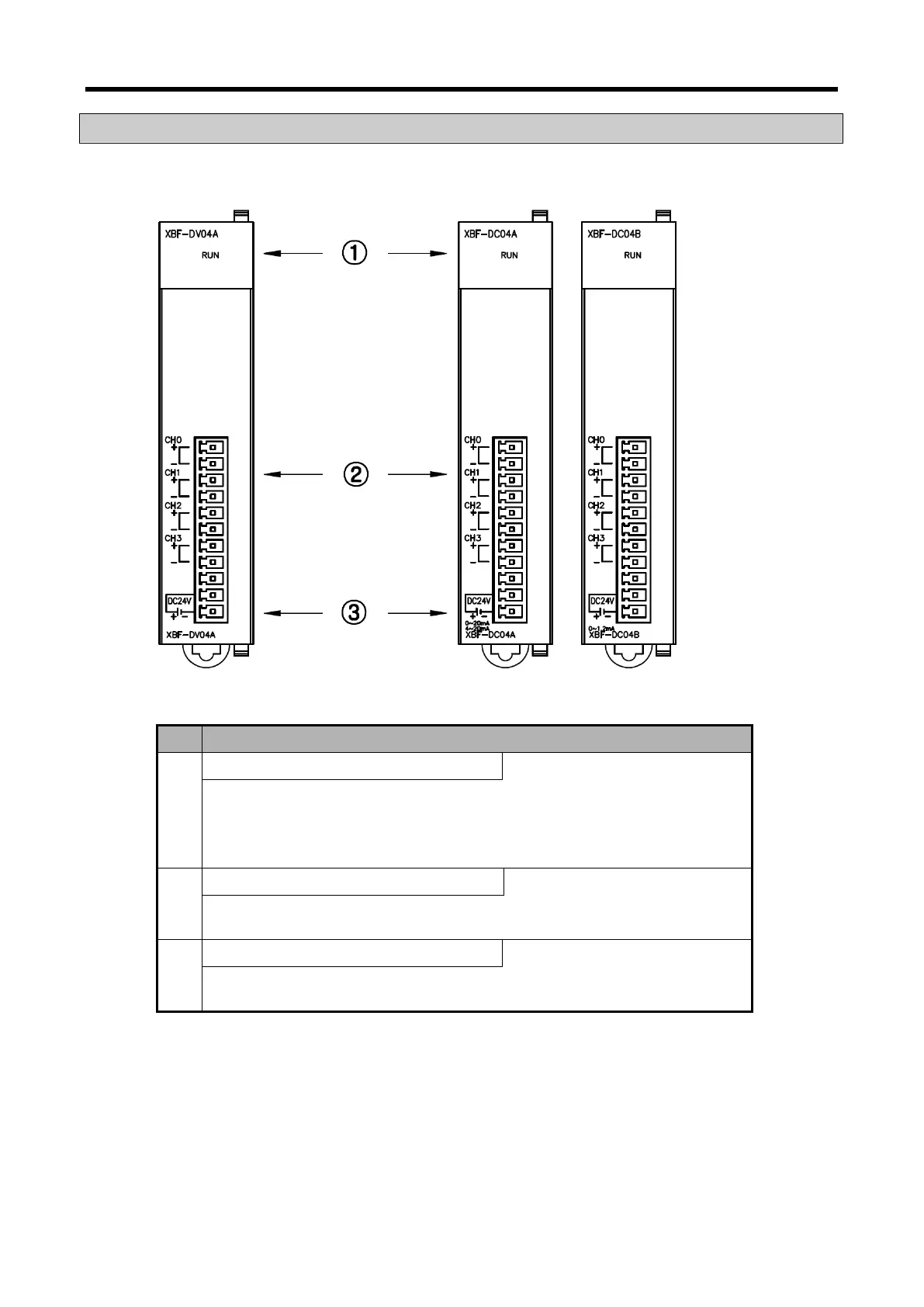

3.3 Designations and Functions
Here describes designation and functions.
It displays the operation status of D/A conversion module
- On: Normal operation status
- Flickering: Error occurred
- Off: Power off or abnormal status of the module
Analog output terminal (Voltage, Current)
It is an output terminal to connect an analog output (Voltage, Current) of each
channel to external machinery and tools.
External power input terminal
It is an external DC 24V input terminal that supplies power for an analog
output (voltage, current).
To Next Page
