13.5 Accuracy

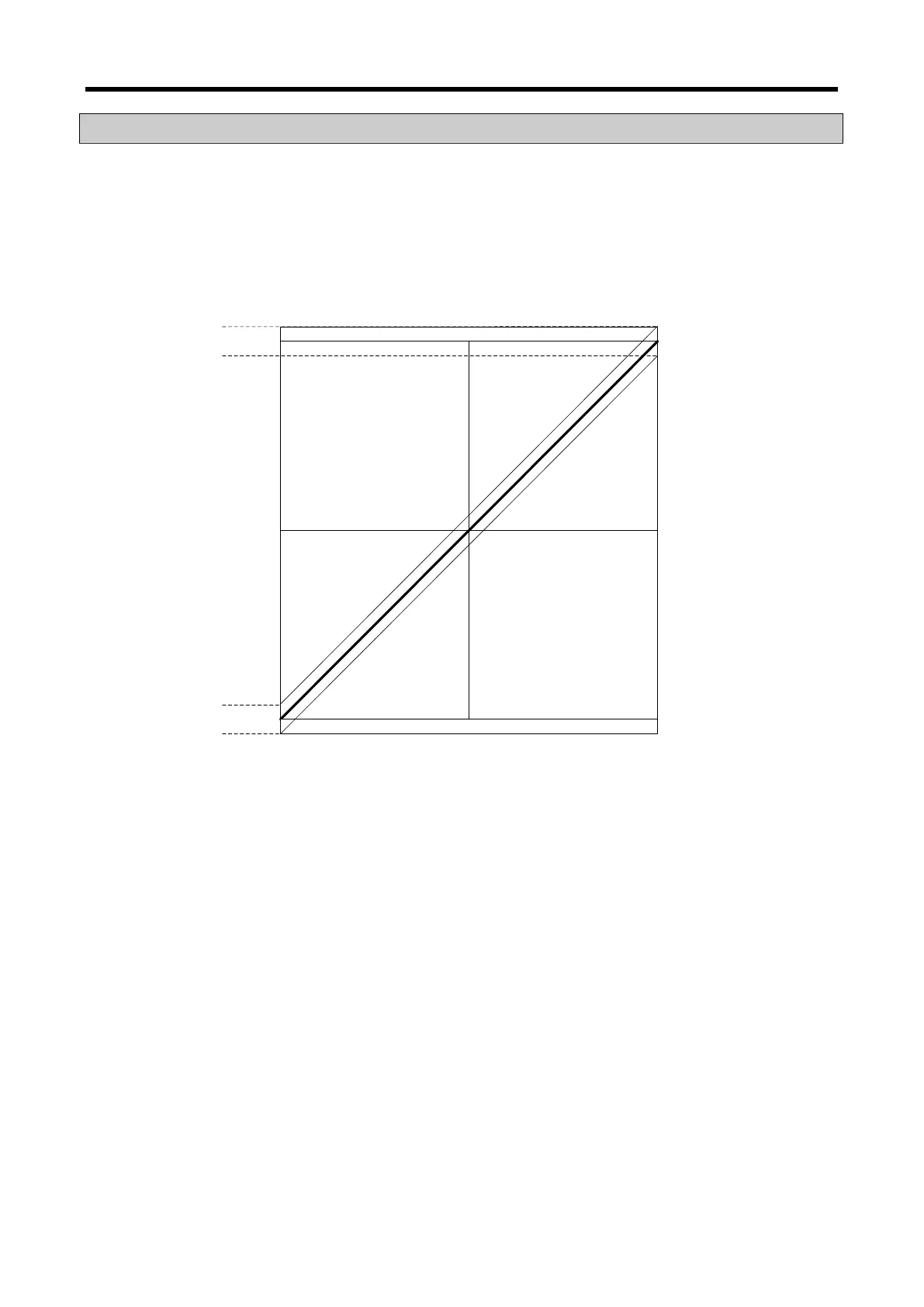

Accuracy of digital output value does not changed even if input range is changed. Figure below
shows the range of the accuracy with analog input range of 0 ~ 10 V and digital output type of
unsigned value selected.
Accuracy of XBF-AD04C is ±0.2% (ambient temperature of 25 degrees)
0
0V 5
V
8000
10 V
16000
Analog input voltage
15968
16032
-32
32
Digital output value
(1) Accuracy when using 5V input
16,000 × 0.2% = 32
Therefore the range of the accuracy will become (8,000-32) ~ (8,000+32) = 7,968 ~ 8,032
when using 5V input.
(2) Accuracy when using 10V input
16,000 × 0.2% = 32
Therefore the range of the accuracy will become
(16,000-32)~(16,000+32) = 15,968 ~16,032 when using 10V input.
