XGB Analog edition manual
12.11 Operation Setting and Monitor
12.11.1 Operation Parameter Setting
Operation parameter of thermocouple input module can be set through [I/O Parameter] of XG5000
(1) Setting items
For user convenience, parameter setting of thermocouple input module is provided by GUI
(Graphical User Interface) method in the XG5000. The items which can be set through [I/O
Parameter] in the project window are as follows.
[I/O Parameter]
(a) Sets the following items for operation of module.
1) Channel status (Disable / Enable)
2) Sensor type (K / J)
3) Filter setup (Filter constant)
4) Averaging process (Count averaging)
(b) The parameter set by the user is saved in the flash memory of XGB main
unit after download.
(2) How to use [I/O Parameter]
(a) Execute the XG5000 and make the project.
(For how to make the project, refer to the XG5000 user manual)

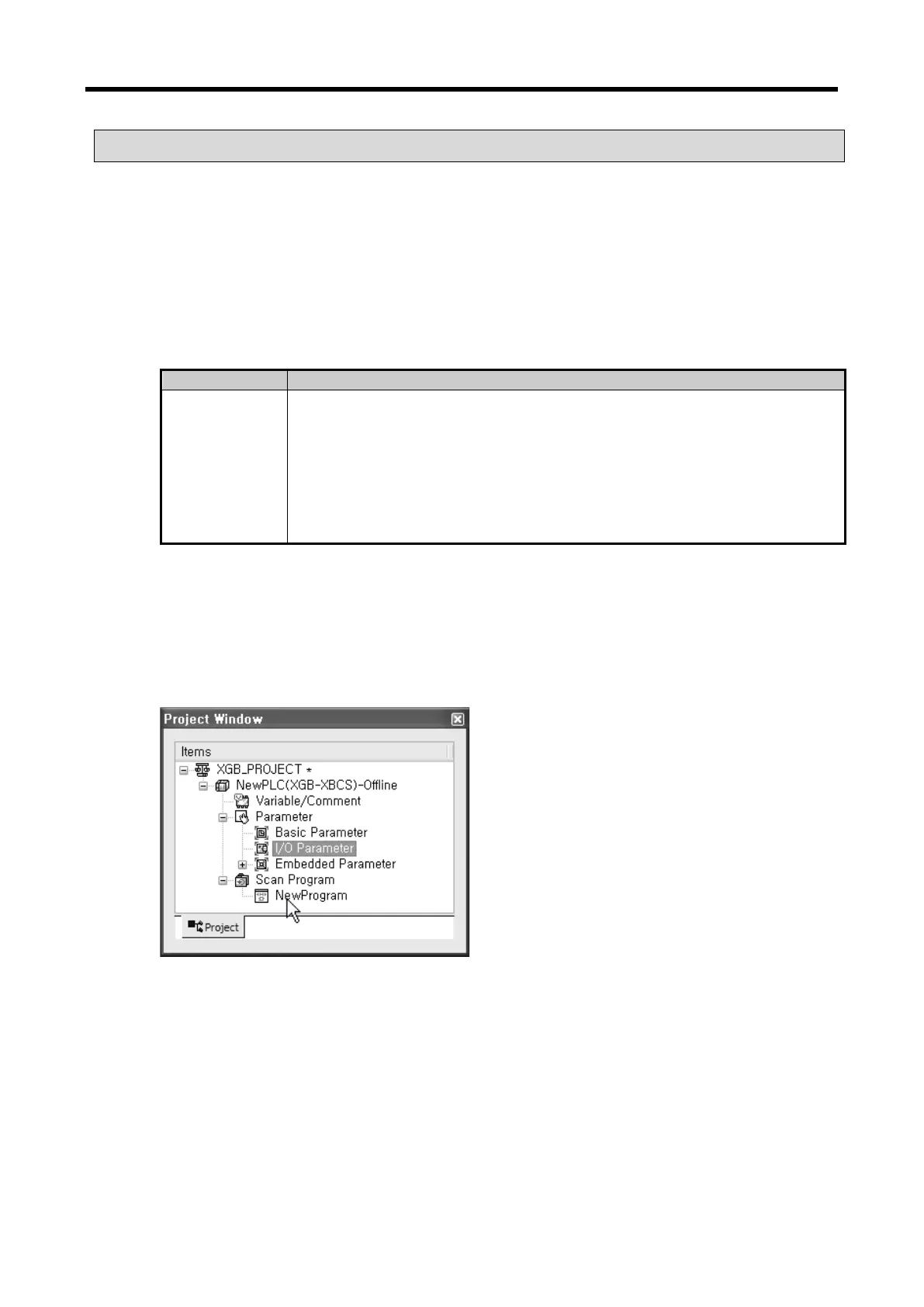

(b) Double-click [I/O Parameter] on the project window.
12 - 12
