Chap. 6 Analog I/O Module (XBF-AH04A)
6.3 Major Components

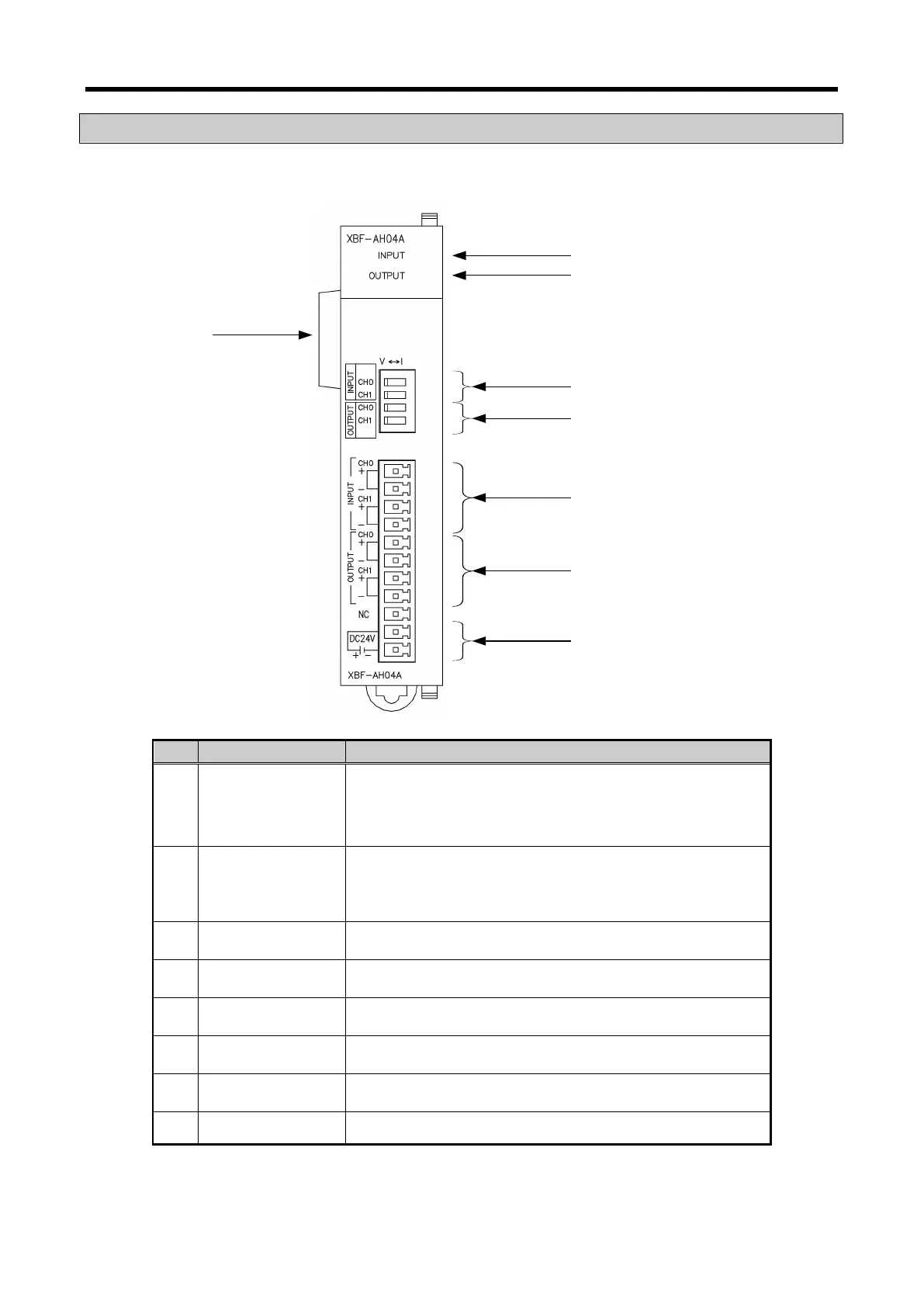

Major components are as follows;
①
③
⑤
②
⑦
⑧
④
⑥
No.
Name
Description
① INPUT LED
▶ Indicate operation of input part
On: normal operation
Flickering: in error (1s intervals)
Off: power off or module failure
② OUTPUT LED
▶
Indicate operation of output part
On: normal operation
Flikering: in error (1s intervals)
Off: power off or module failure
③
Input Volt/Current
Select Switch
▶
Switch for selecting voltage/current input of analog input
Ch 0 and Ch 1
④
Output Volt/Current
Select Switch
▶
Switch for selecting voltage/current output of analog
output Ch 0 and Ch 1
⑤
Input Terminal
Block
▶
Terminal block for analog input wiring with external
devices
⑥
Output Terminal
Block
▶
Terminal block for analog output wiring with external
devices
⑦
Ext. Power
Connector
▶ Connector for DC24V external power supply
⑧ Ext. Connector ▶ Connector for extension modules
