LSIS XBF-AH04A - Example Program

Chapter 4 RTD Input Module (XBF-RD04A, XBF-RD01A)
4.16 Example Program
- Here describes how to specify the operation condition of RTD input module.
- RTD input module is installed on slot 2.
- Initial setting condition is that with one input, initial setting value is saved in internal memory of
module.
- The following program is an example to read temperature value and disconnection information.

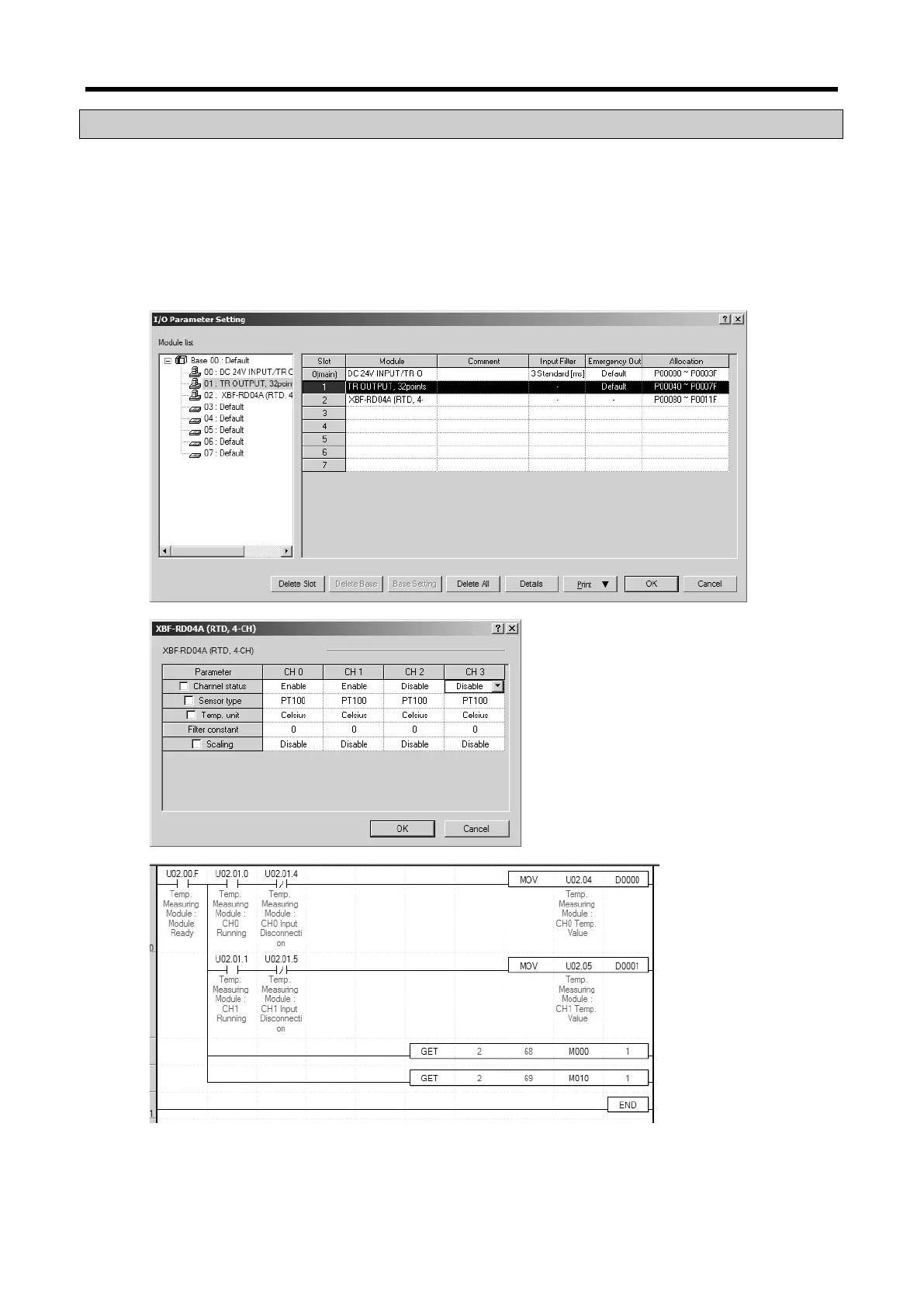

(1) Program example using [I/O Parameter Setting]
Moving channel 0 temp. value to
D0 area
Moving channel 1 temp. value to
D1 area
Moving channel 0 disconnection
information to M0
Moving channel 1 disconnection
information to M1
