LSIS XBF-AH04A User Manual

Chapter 13 Analog Input Module (XBF-AD04C)
13.12 Example Program
(1) Setting of operation parameter of analog input module is explained.
(2) The initial setting condition is saved in internal memory of the analog input module by inputting
once.
(3) As below, these example programs are that the analog input modules of the slot No. 1 control the
output data of the analog input module and detect whether wire is disconnect.
13.12.
１
Analog input program

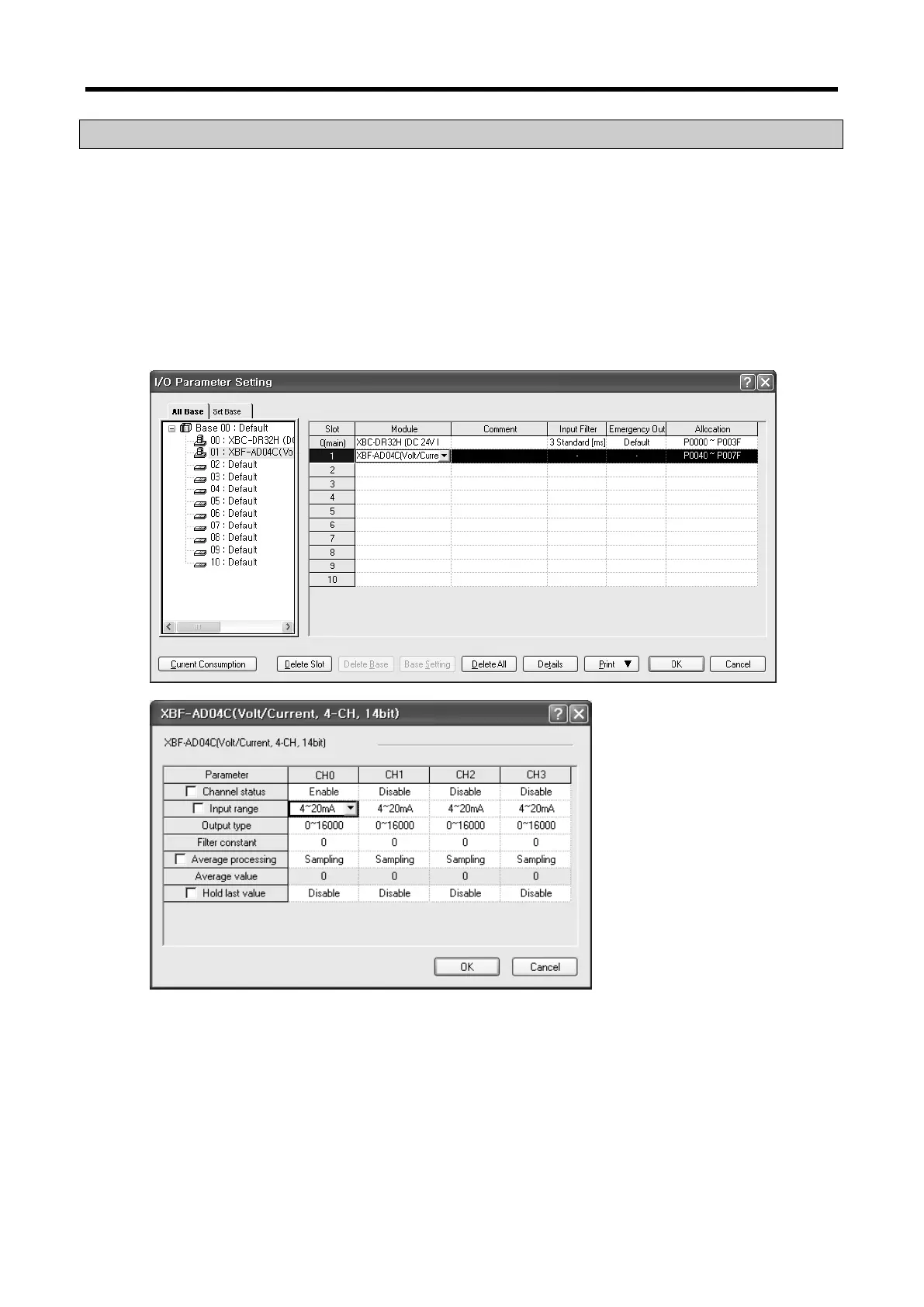

1) Setting I/O parameter
(1) The channel 0 is set with operation channel, the ranges are set with 4~20mA.
13 - 43
