LSIS XBF-AH04A

XGB Analog edition manual

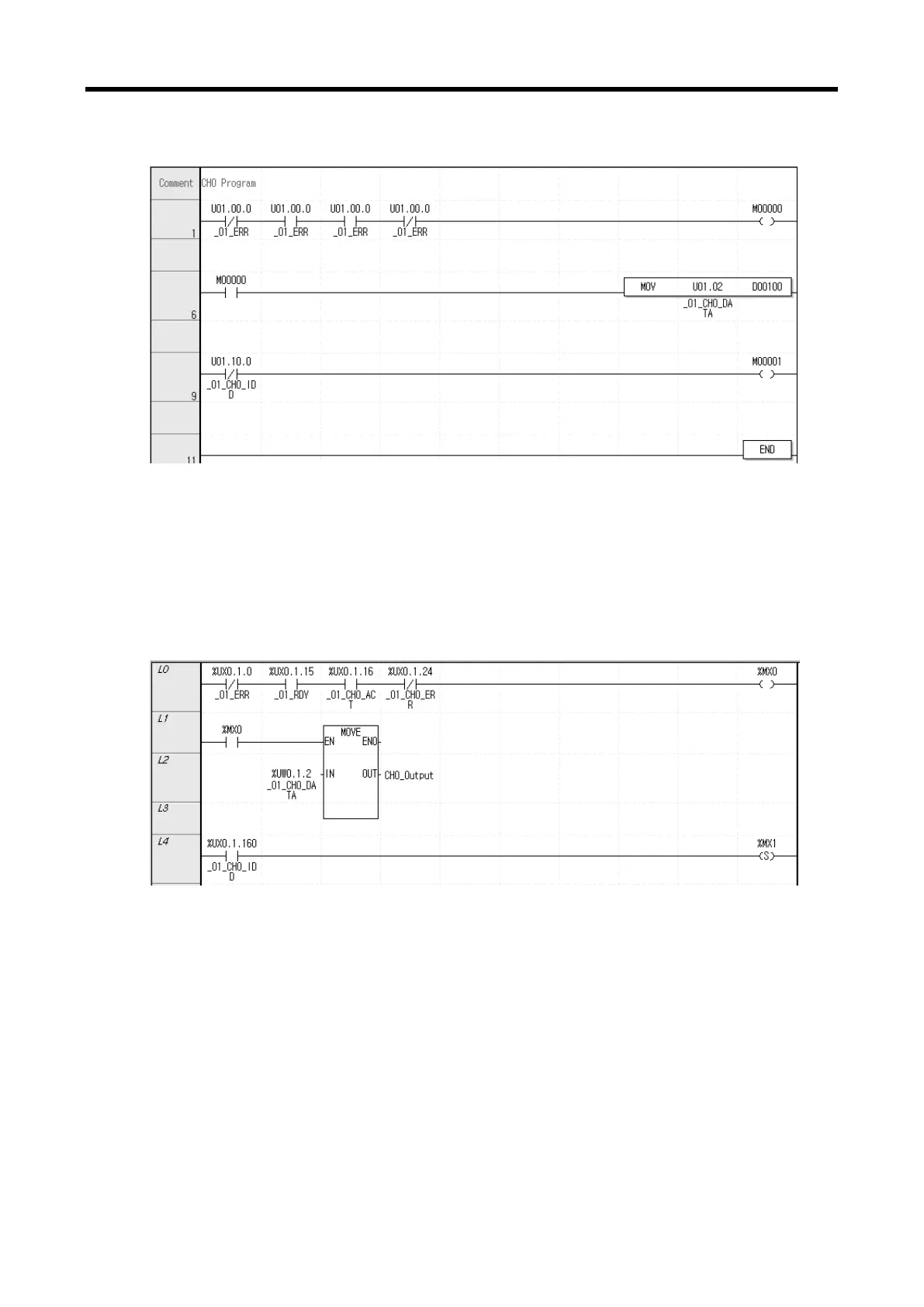

2) Example program
(1) The 'M0000' is on while the module normally operates.
U01.00.0(Module Error) = Off
U01.00.F(Module Ready) = On
U01.01.0(CH0 Run) = On
U01.01.8(CH0 Error) = Off
(2) When the 'M0000' is on, conversion value (U01.02) of CH0 is moved to the 'D00100'.
(3) If the error is caused on CH0, U01.10.0 Bit(CH0 disconnection) and the M00001 will be on.
3) Example Program (In case of IEC)
(1) If the module operation is normal, the '%MX0' will be on.
%UX0.1.0(Module Error) = Off
%UX0.1.15(Module Ready) = On
%UX0.1.16(CH0 Run) = On
%UX0.1.24(CH0 Error) = Off
(2) If the '%MX0' is on, conversion value (%UW0.1.2) of CH0 will be moved to the variable of
"input value of CH0".
(3) If the disconnection error of CH0 is caused, %UX0.1.160 (CH0 disconnection) and the 'MX1'
Bit will be on.
13 - 44
