Chapter 2 Analog Input Module (XBF-AD04A)
2 - 5

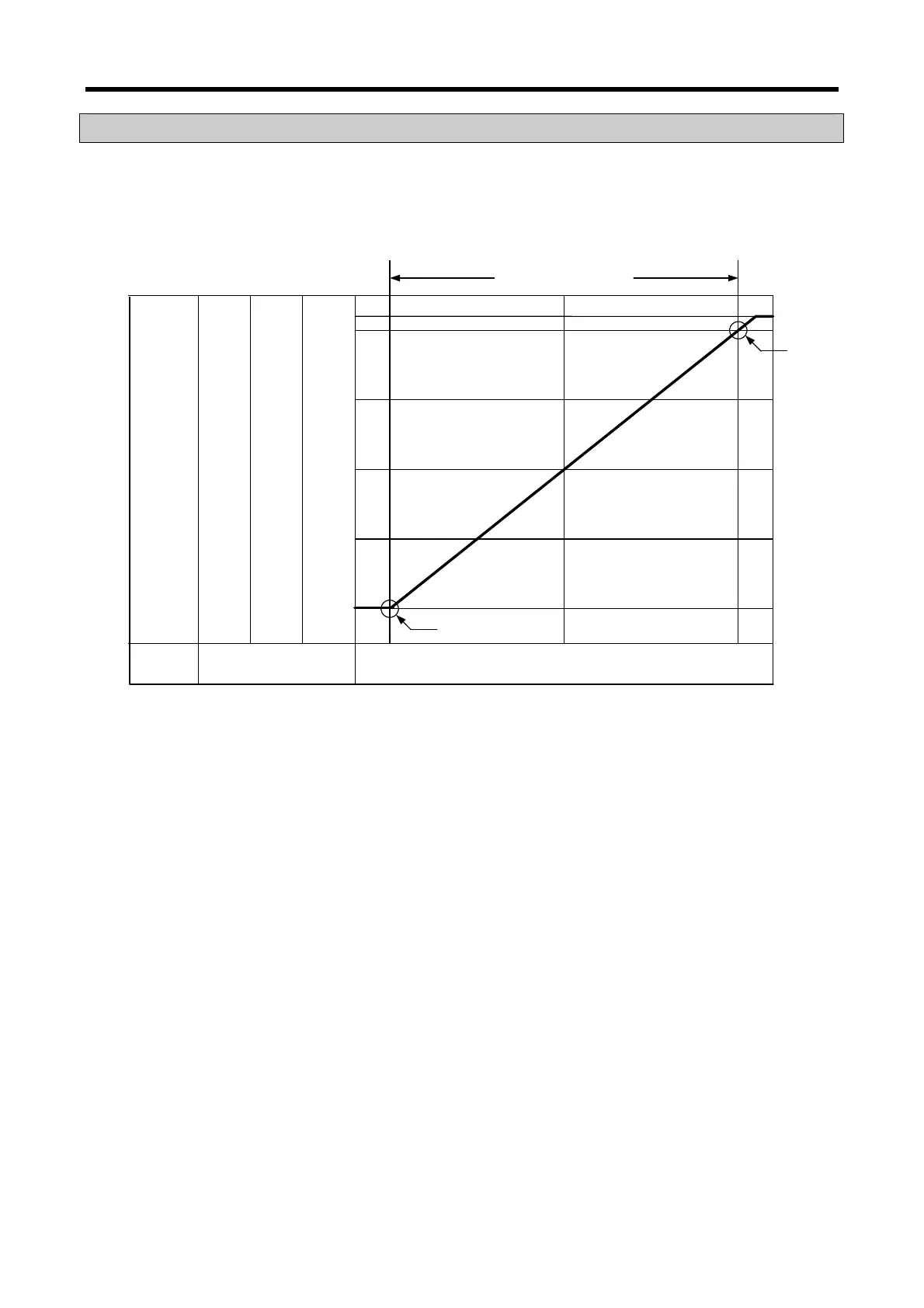

2.4 Characteristic of I/O conversion
Characteristics of I/O conversion are the inclination connected in a straight line between Offset and
Gain values when converting analog signal (voltage or current input) from PLC’s external device to
digital value. I/O conversion characteristics of A/D conversion modules are as described below.
Digital
output
value
0
1000
2000
3000
4000
4047
-2000
-1000
0
1000
2000
2047
0
250
500
750
1000
1011
Analog
input value
Analog input applicable
range
Offset value
Gain
value
DC 0 ~ 10 V
0 V
5V 10V
