Chapter 5 Thermocouple Input Module (XBF-TC04S,TC04B)
5.7 Example Program
(1) It describes how to set operation parameter in the internal memory of thermocouple module.
(2) Regarding the initial condition, the initial settings are saved in the internal memory of thermocouple
module if saved once.
(3) The following is program example that reads the temp. value of thermocouple input module of slot
1 and check whether disconnection occurs or not.

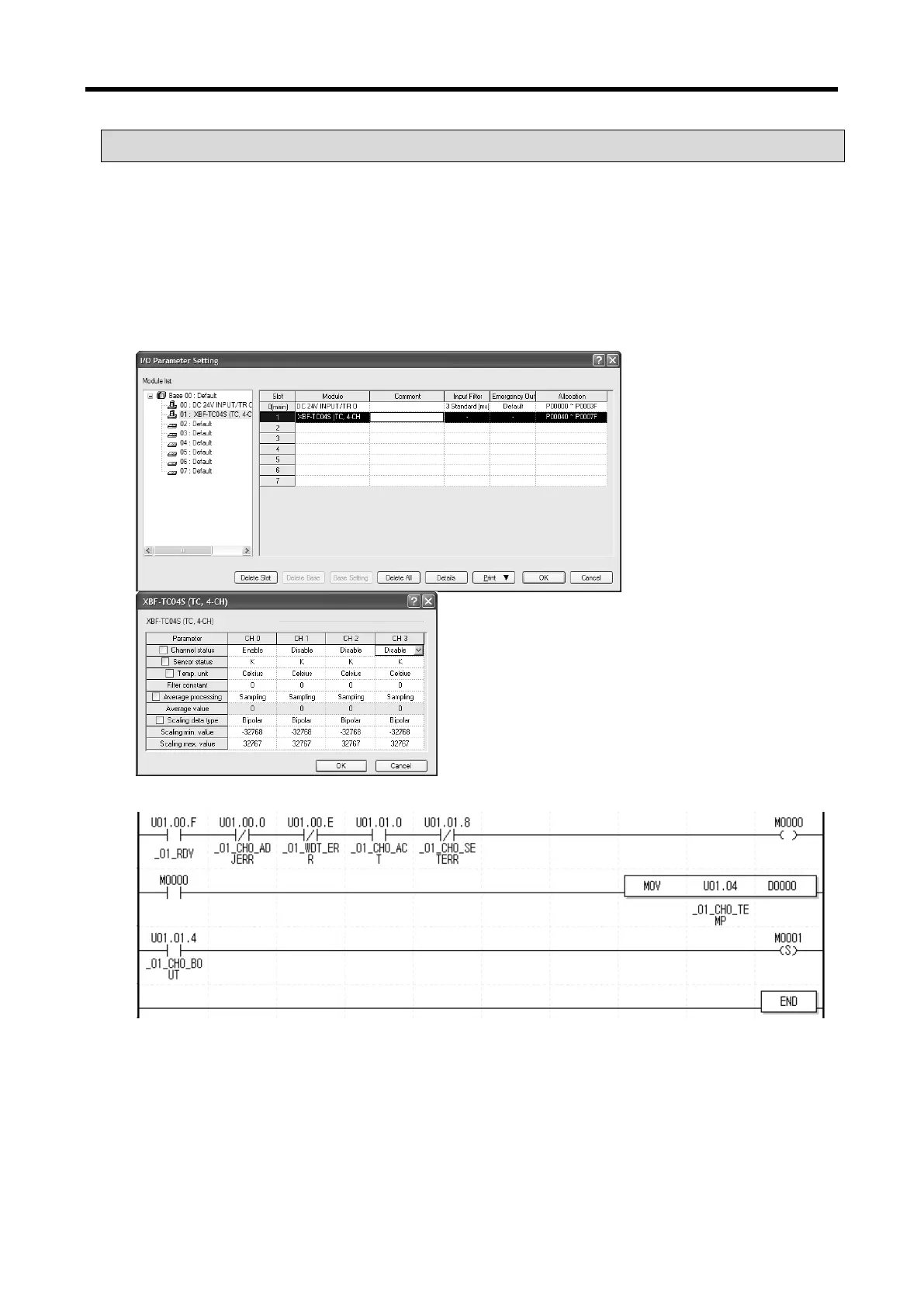

5.7.1 Example using [I/O Parameter]
(1) I/O parameter setting window
(2) Program example
(a) If module is under normal operation, M0000 is on.
U01.00.F(module Ready) = On
U01.00.0(CH0 offset/gain adjustment error) = Off
U01.00.E(module H/W error) = Off
U01.00.E(CH0 running) = On
(b) If M0000 is on, temp. conversion value (U01.04) of CH0 moves to D0000.
(c) If disconnection error occurs at CH0, U01.01.4 (CH0 disconnection) is on and M0001 bit is set.
5 - 51
