XGB Analog edition manual

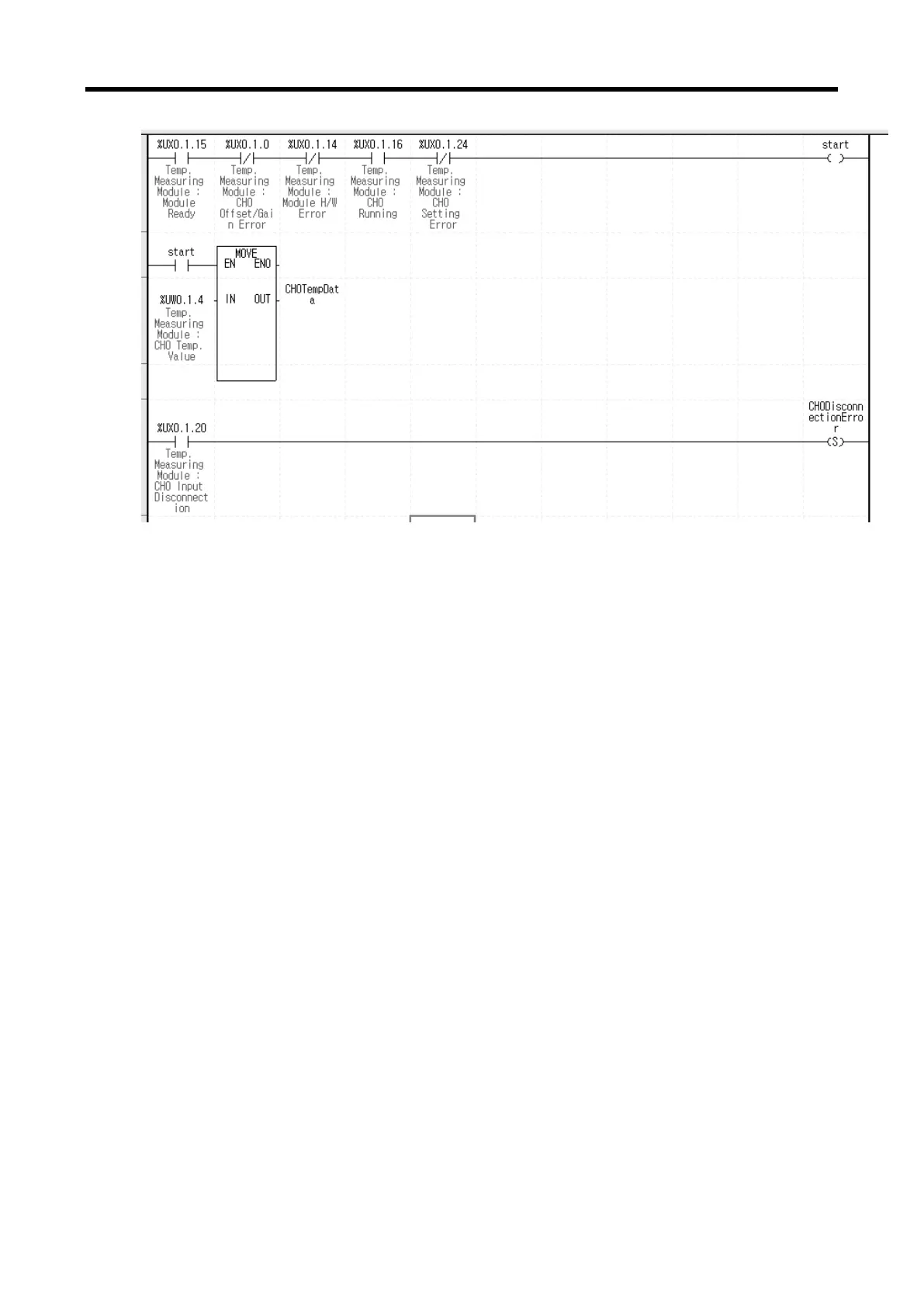

(3) Program example (in case of IEC type)
(a) If module is running normally, operation start bit is on
%UX0.1.15 (Module Ready) = On
%UX0.1.0 (CH 0 offset/gain adjustment error) = Off
%UX0.1.14 (Module H/W error) = Off
%UX0.1.16 (CH 0 running) = On
%UX0.1.24 (Setting error) = Off
(b) If operation start bit is on, it moves CH 0 temp. conversion value (%UW0.1.4) into CH 0 temp.
data
(c) If CH 0 disconnection error occurs, %UX0.1.20 (CH0 disconnection) is on and CH 0
disconnection error bit is set
5 - 52
