Chapter 5 Thermocouple Input Module (XBF-TC04S,TC04B)
5.7.2 Program example using PUT/GET instruction

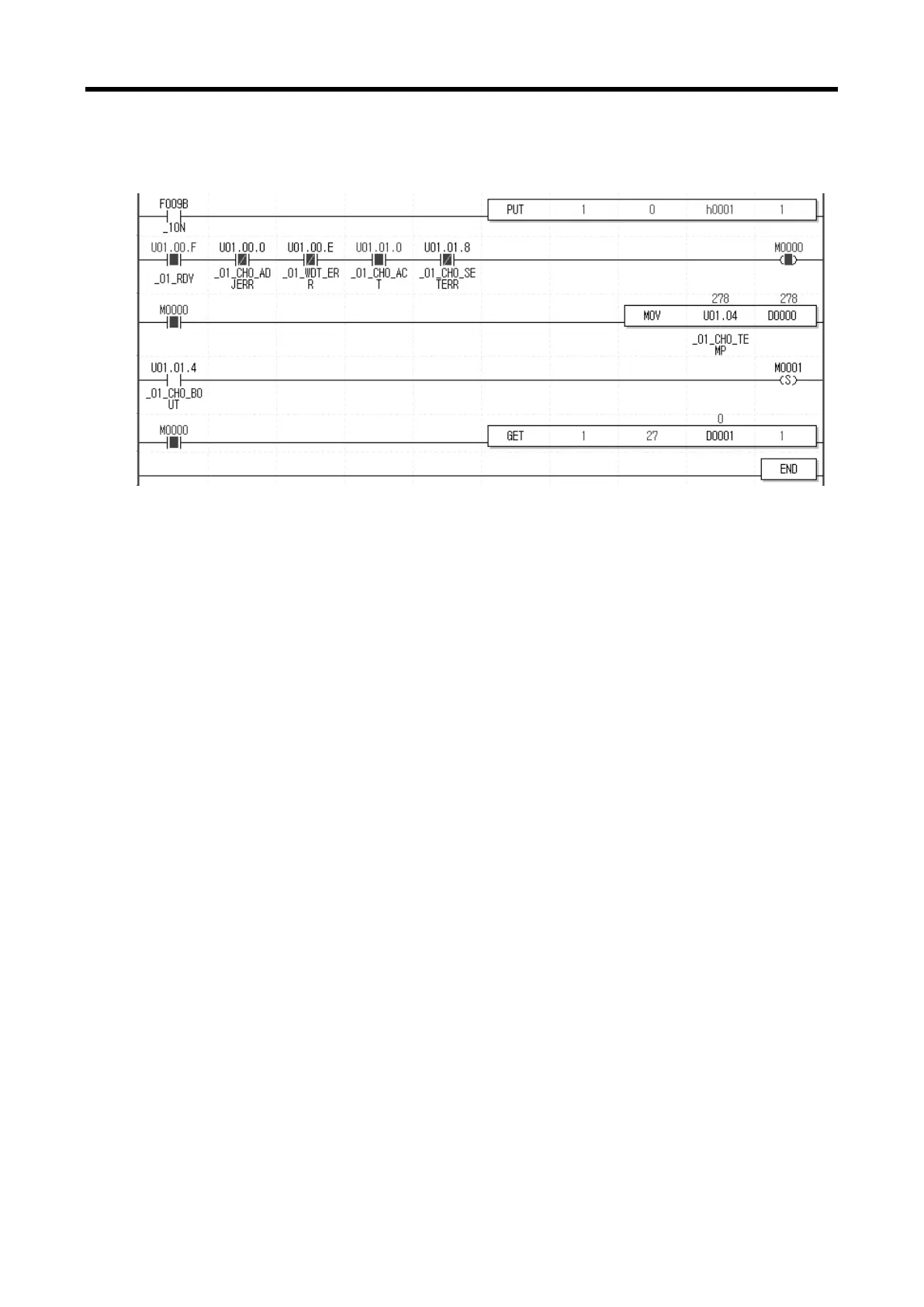

(1) Program example
(a) It writes h0001 at address 0 of slot 1 in order to enable CH0.
(b) If module is under normal operation, M0000 is on.
U01.00.F(module Ready) = On
U01.00.0(CH0 offset/gain adjustment error) = Off
U01.00.E(module H/W error) = Off
U01.00.E(CH0 running) = On
(c) If M0000 is on, temp. conversion value of CH0 moves to D0000.
Current temp. conversion value, 278(27.8℃2) is saving in U01.04.
(d) If disconnection error occurs at CH0, U01.01.4 (CH0 disconnection) is on and M0001 bit is set.
(e) If M0000 is on, setting error (address 27) of CH0 moves to D0001. Since setting error (address
27) of CH0 is 0, there is no setting error.
5 - 53
