XGB Analog edition manual

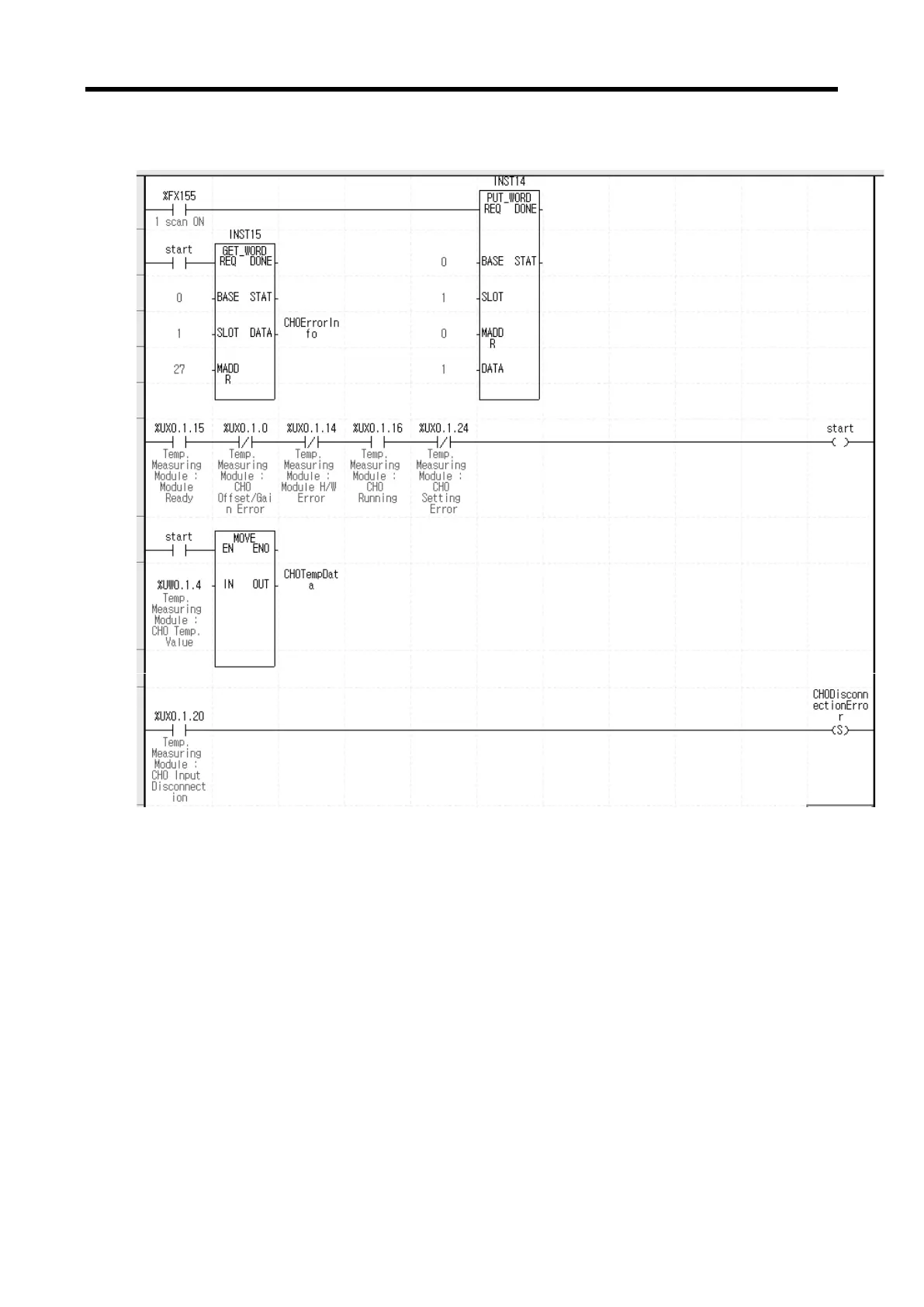

(2) Program example (in case of IEC type)
(a) Writes 1 at address 0 of slot 1 and operates CH 0 by using PUT_WORD function block.
(b) If operation start bit is on, reads CH 0 setting error (address 27) and movies it into D0001.
(c) If module is running normally, operation start bit is on.
%UX0.1.15 (module Ready) = On
%UX0.1.0 (CH 0 offset/gain adjustment error) = Off
%UX0.1.14 (Module H/W error) = Off
%UX0.1.16 (CH 0 running) = On
%UX0.1.24 (setting error) = Off
(d) Operation start bit is on, moves CH 0 temp. conversion value (%UW0.1.4) into CH 0 temp.
data
(e) Disconnection error occurs at CH 0, %UX0.1.20 (CH 0 disconnection) is on and CH 0
disconnection error bit is set.
5 - 54
