Chapter 5 Thermocouple Input Module (XBF-TC04S,TC04B)

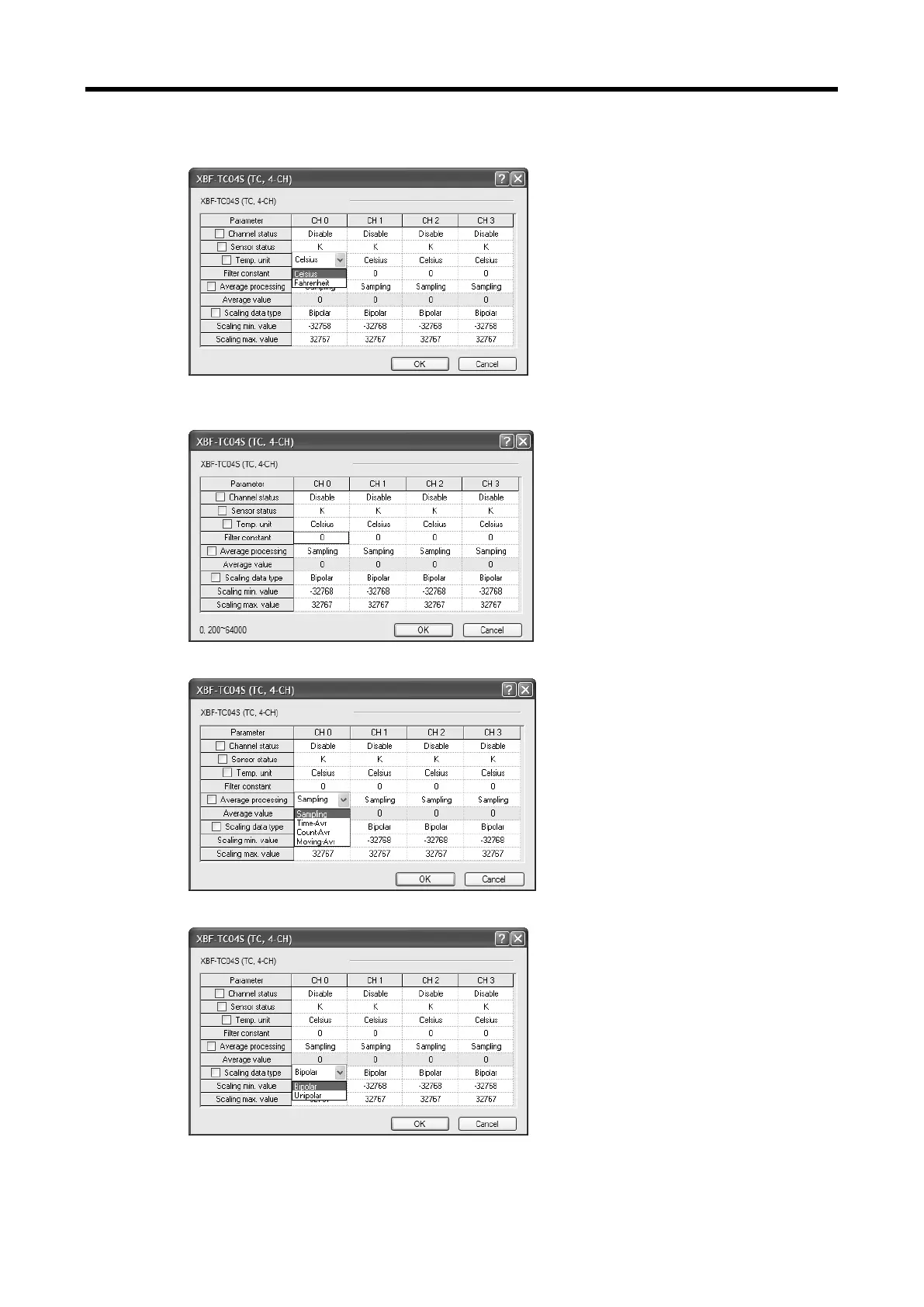

3) Temp. unit (Celsius / Fahrenheit)

4) Filter constant (0, 200 ~ 64000)

5) Average processing (Sampling / Time-Avr / Count-Avr / Moving-Avr)

6) Scaling data type (Bipolar / Unipolar)

5 - 25
