XGB Analog edition manual
(b) How to use [Special Module Monitoring]

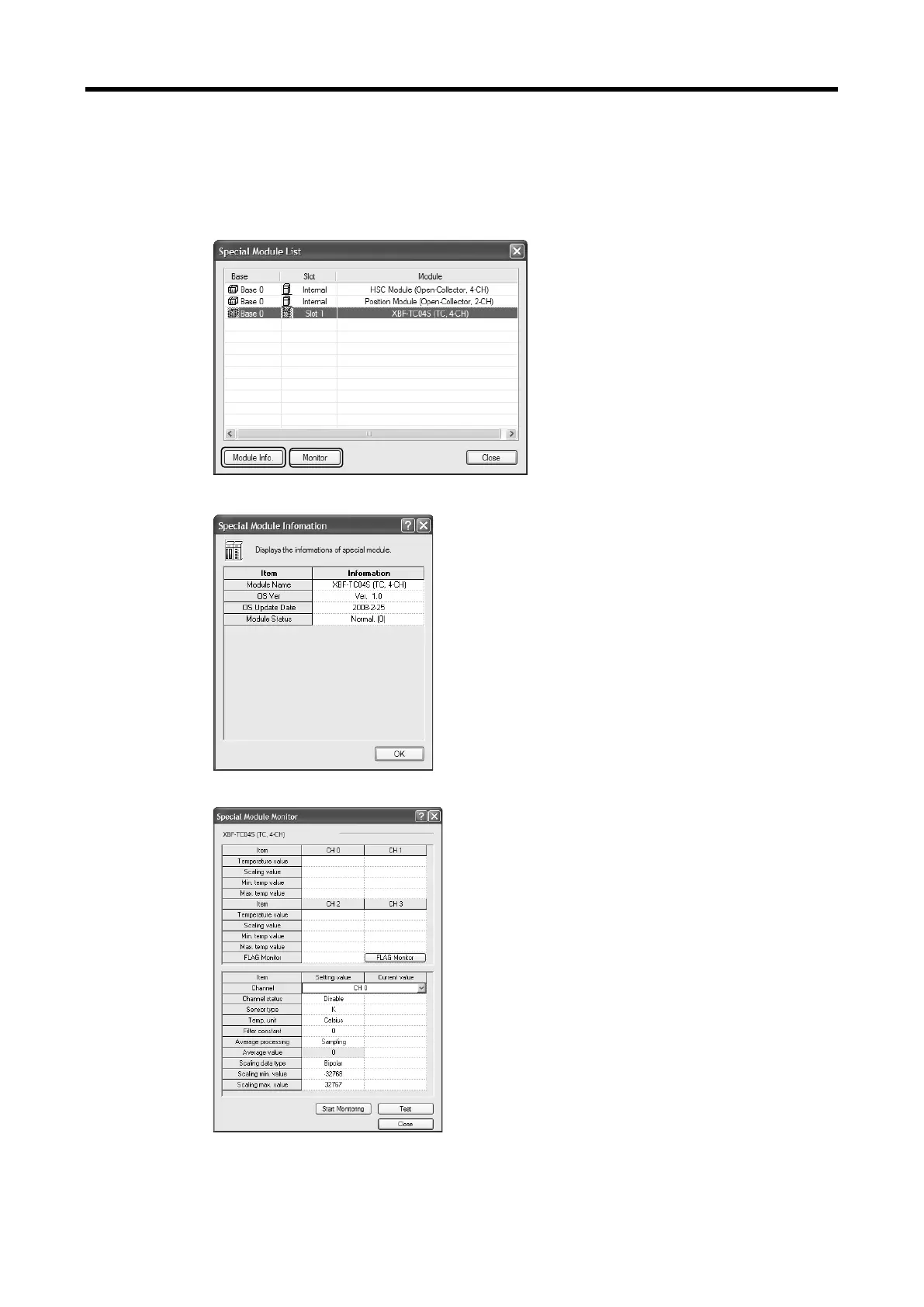

1) Click [Monitor] -> [Special Module Monitoring] while XG5000 is connected with PLC basic
unit. ‘Special Module List’ screen is displayed as shown below and displays information of
base/slot with special module type. On the list dialog box, The modules currently equipped
at the PLC are displayed.
2) Clicking [Module Info.] shows the information of special module.
3) Clicking [Monitor] shows the following screen.
