6.6.3 Averaging Function
(1) Average by Time
The input values of the designated channel are accumulated for the preset time, and the
average value of the total sum is outputted in digital data.

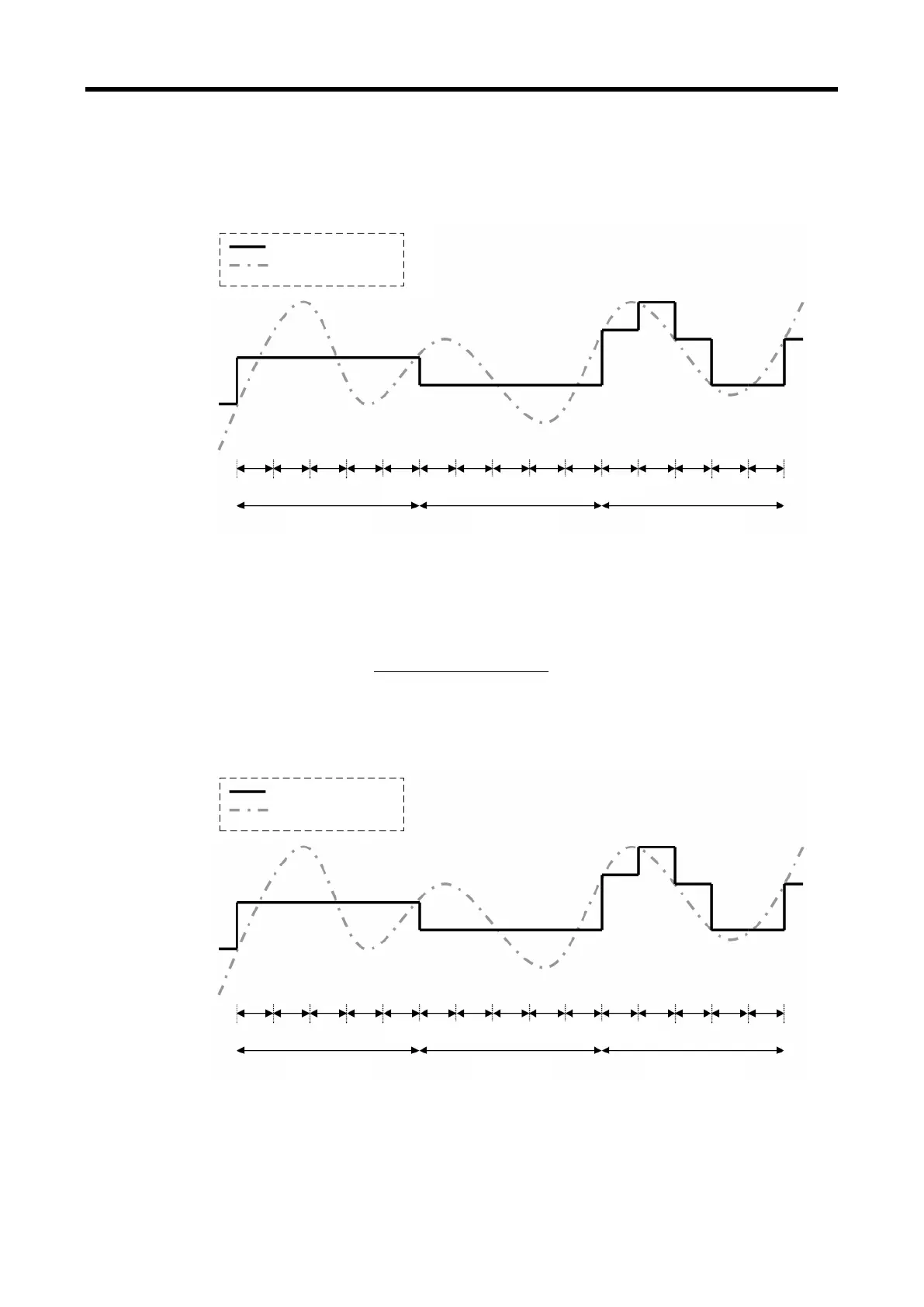

Channel Scanning Intervals (1ms/Ch. Used)
Averaged input value
Actual input value
Averaging
Section
Averaging
Section
Sampling
Section
Setting Range = 4 ~ 16000 [ms]
For time averaging, No. of averaging cycles are calculated with the No. of channels used
as below;
msUsedofChannelsNo
eAverageTim
1 .
Cycles Averaging No.
×
=
(2) Average by Cycles
The input values of the designated channel are accumulated for the preset cycles, and the
average value of the total sum is outputted in digital data.
Channel Scanning Intervals (1ms/Ch. Used)
Averaged input value
Actual input value
Averaging
Section
Averaging
Section
Sampling
Section
Setting Range = 2 ~ 64000 [Cycle]
For cycle averaging, averaging interval is calculated with the No. of channels used.
msUsedofChannelsNoycl
eAveragingCmsntervalAveragingI 1. ][ ××=
