XGB Analog edition manual
7.8 Operation Parameter Setting
A/D conversion module’s operation parameters can be specified through XG5000’s [I/O parameters].
(1) Settings
For the user’s convenience of A/D conversion module, XG5000 provides GUI (Graphical User
Interface) for parameters setting of A/D conversion module. Setting items available through [I/O
parameters] on the XG5000 project window are as described below in the table.
Item Details
(a) Specify the following setting items necessary for the module operation.
1) Channel Enable/Disable setting
2) Setting ranges of input voltage/current
3) Output data format setting
4) Filter constant setting
5) Average processing method setting
6) Average value setting
(b) If downloading is complete Parameter set by user in XG5000 is saved
in Flash memory of XGB main unit.

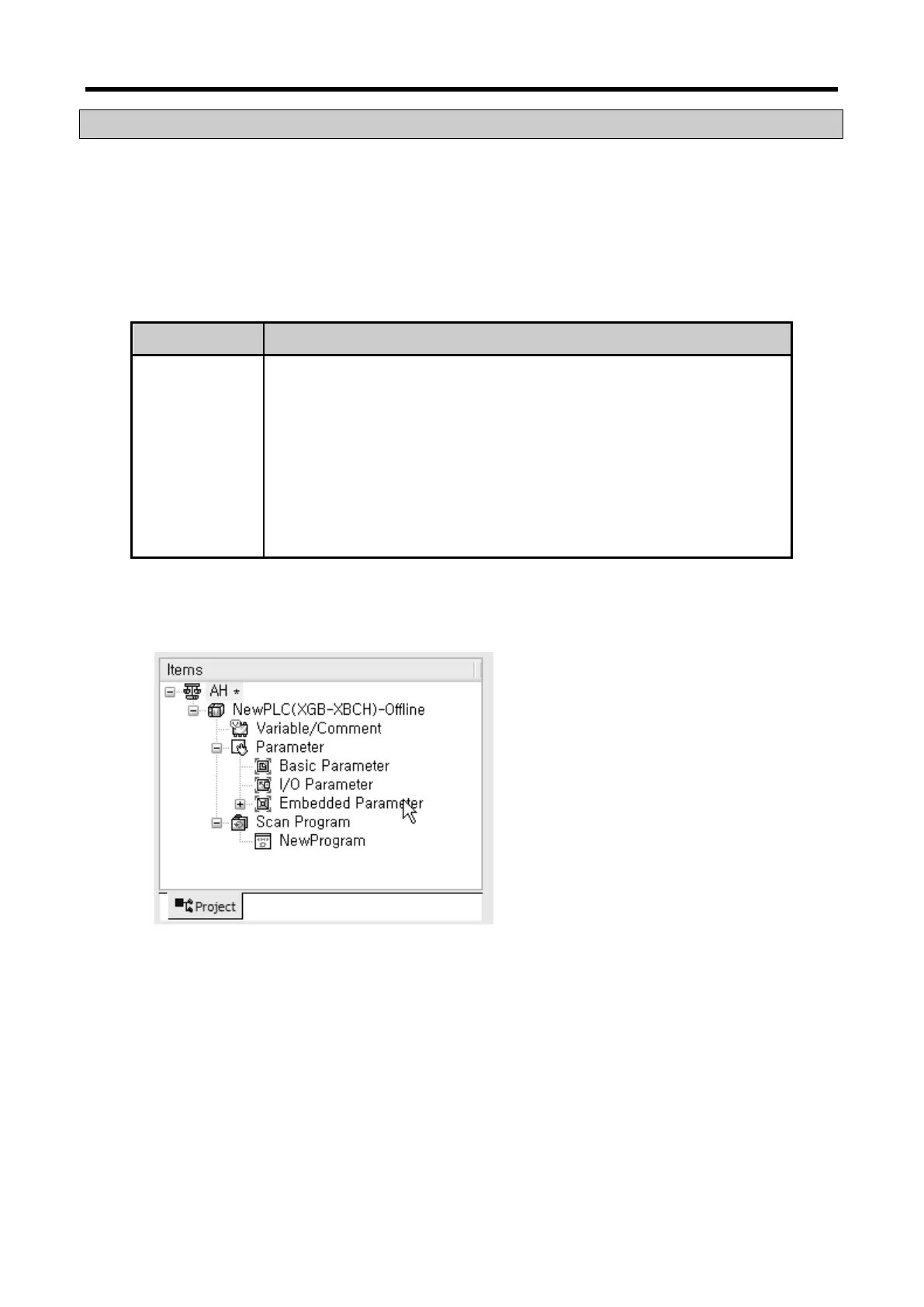

(2) Usage of [I/O Parameter]
(a) Create a project with XG5000. See XG5000 Program Manual for project creation.
(b) In the Project window, double-click [I/O Parameter].
