Chapter 7 Analog Input Module (XBF-AD08A)
(3) Viewing Variables in Program

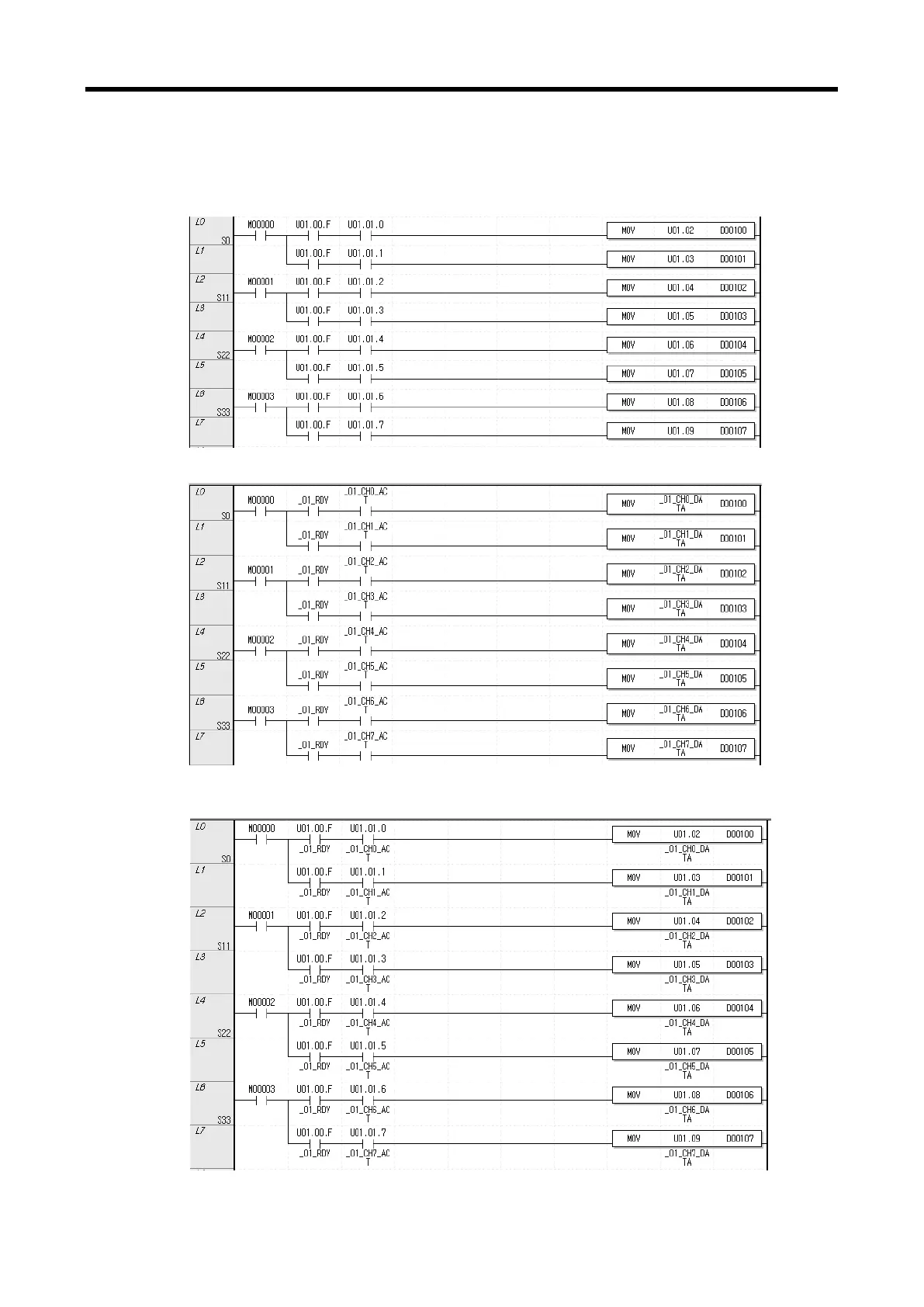

The figures below present examples of use in XGB “S” and “H” types.
(a) Below is an exemplary program for XG5000.
(b) In the ‘View' menu, click ‘View Variables.’ The devices are changed into variables.
(c) In the ‘View' menu, click ‘View Device/Variables’ to look up the devices and variables at
the same time.
7 - 25
