XGB Analog edition manual
(1) This sample program sets up operating parameters of analog output option board.
(2) Initial settings are saved in the internal memory of the XGB main unit by one input.
(3) The sample program below controls the I/O data of the analog output option board at option slot
#0 (I/O slot #9) and check open wire.
9.12.1 Example of [I/O Parameter] Usage

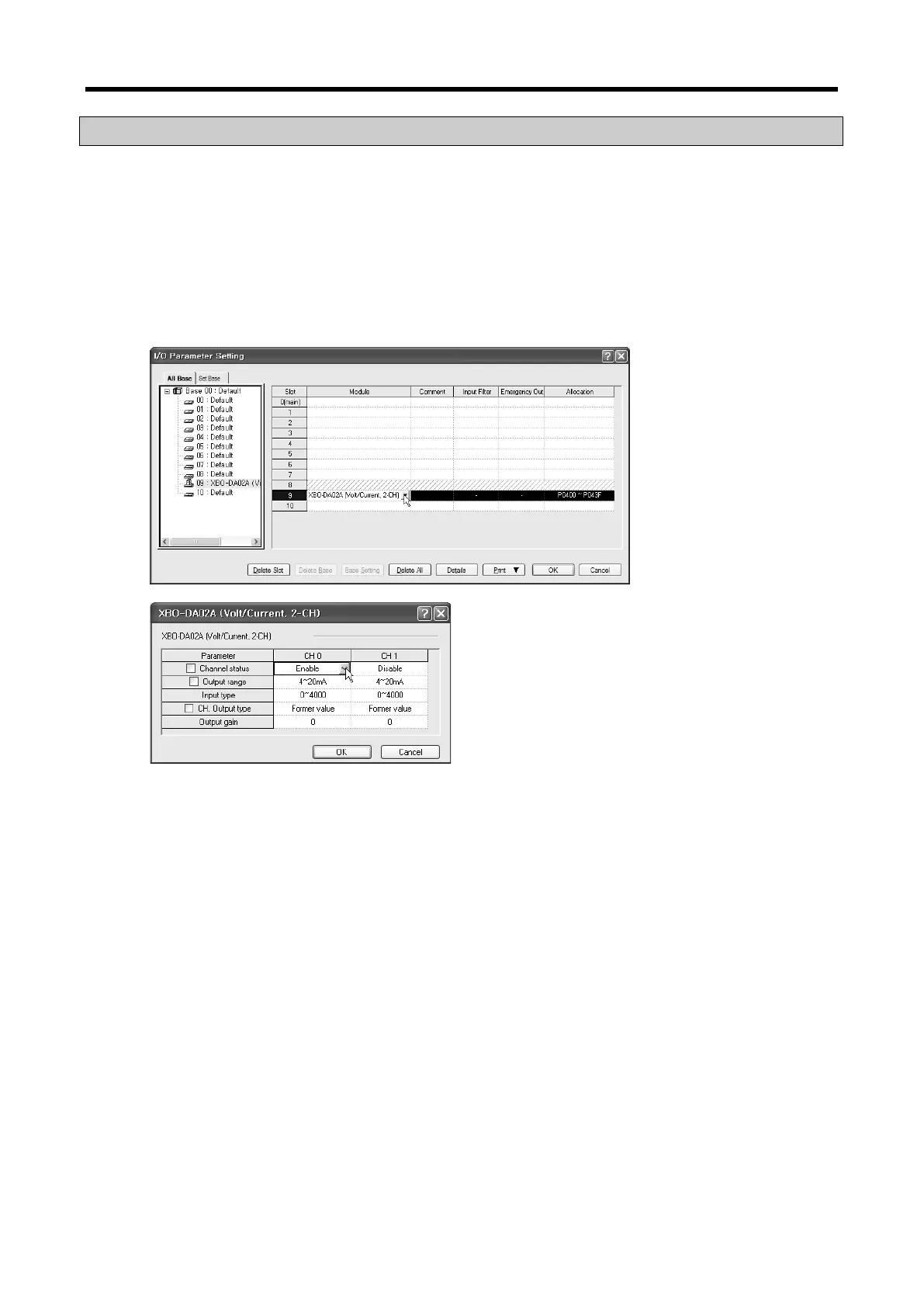

(1) I/O Parameter Setting Window
(a) Output Channel 0 is set to operating channel and output range is set to 4~20mA.
9 - 30
