XGB Analog edition manual

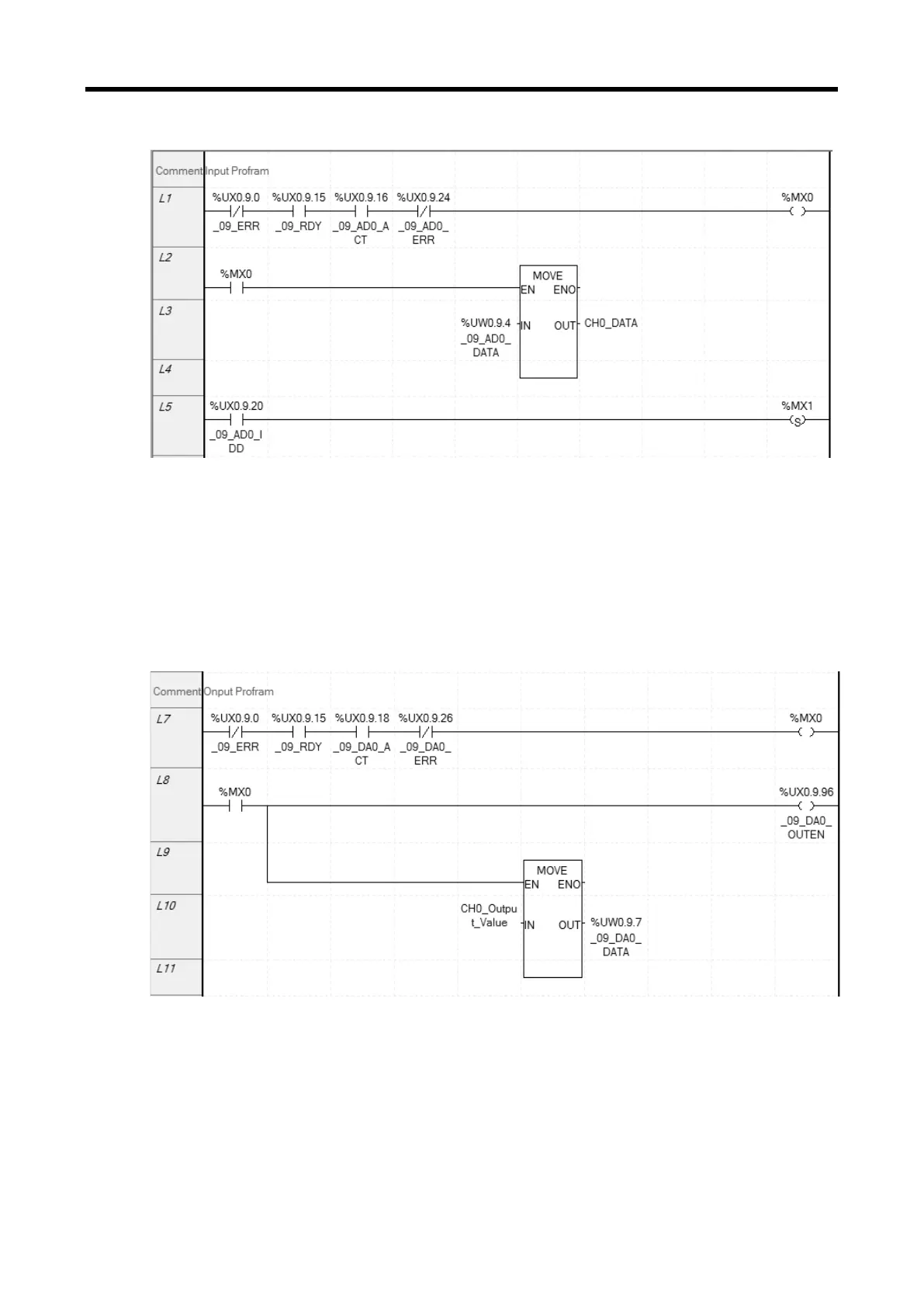

(4) Sample Input Program (IEC Type)
(a) When the option board is in normal operation, %MX0 is turned On.
%UX0.9.0 (Module Error) = Off
%UX0.9.15 (Module Ready) = On
%UX0.9.16 (Input Channel 0 in-operation) = On
%UX0.9.24 (Input Channel 0 Error) = Off
(b) When %MX0 is ON, Input Channel 0 Converted Value(%UW0.9.4) is moved to “CH0_DATA”.
(c) If open-wire error occurs in channel 0, %UX0.9.20 (channel 0 open-wire) is ON, and %MX1 bit
is set.
(5) Sample Input Program (IEC Type)
(a) When the option board is in normal operation, %MX0 is turned On.
%UX0.9.0 (Module Error) = Off
%UX0.9.15 (Module Ready) = On
%UX0.9.18 (Output Channel 0 in-operation) = On
%UX0.9.26 (Output Channel 0 Error) = Off
(b) When %MX0 is ON, it turns on CH0 output state (%UX0.9.96) and allows output
(c) When %MX0 is ON, CH0_Output_Value data is moved to output CH0 Output value
(%UW0.9.7) and outputs.
10 - 44
