LSIS XBF-AH04A - Page 415

Chapter 11 RTD Input Option Board (XBO-RD01A)

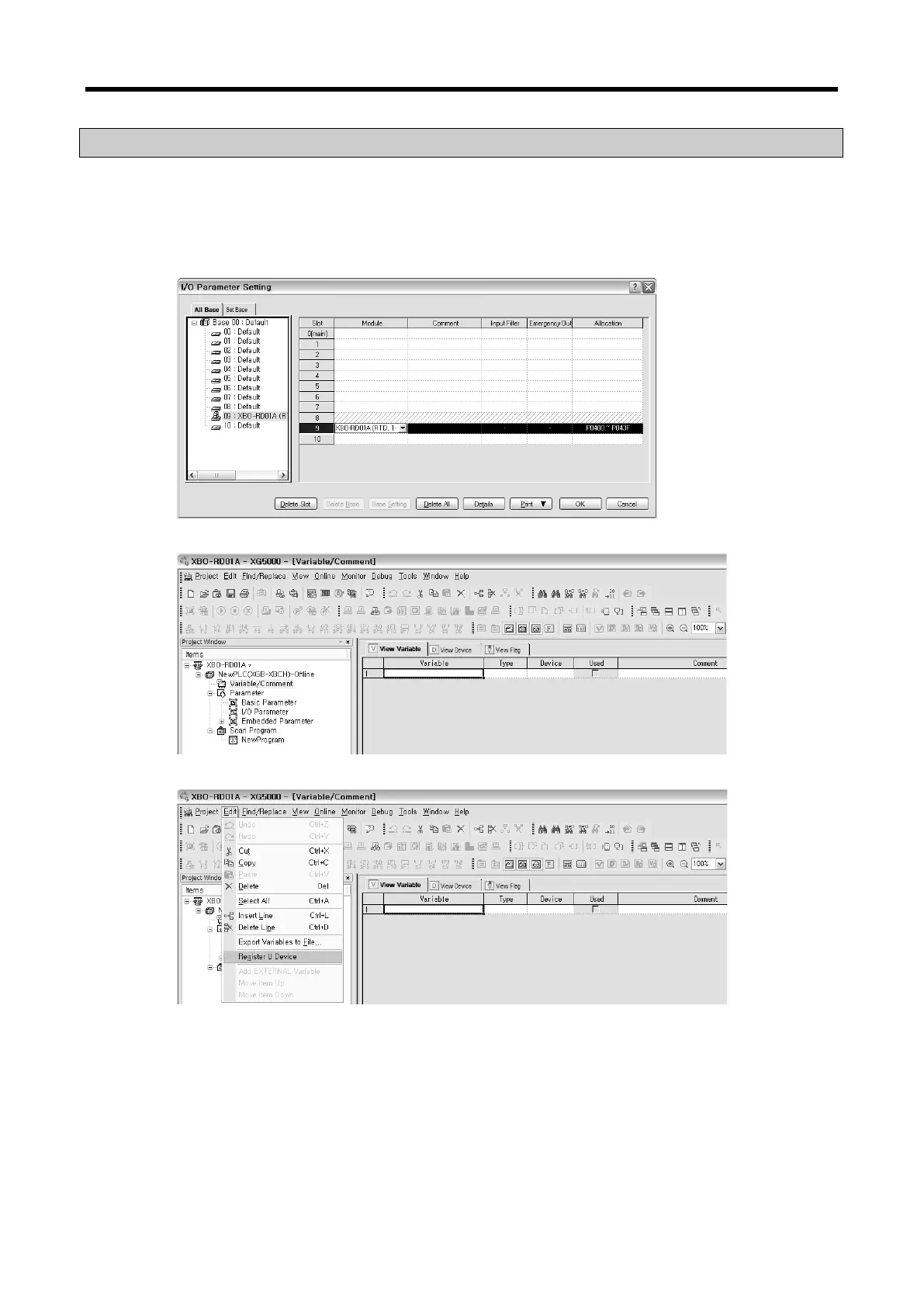

Register the variables for each module referring to the special module information that is set in the I/O
parameter. The user can modify the variables and comments.
(1) Procedure
(a) Select the special module in the [I/O Parameter Setting] window.
(b) Double click ‘Variable/Comment’ from the project window. .
(c) Select [Edit] – [Register U Device].
11.13 Register U devices (Special module variable)
11 - 17
