LSIS XBF-AH04A

XGB Analog edition manual

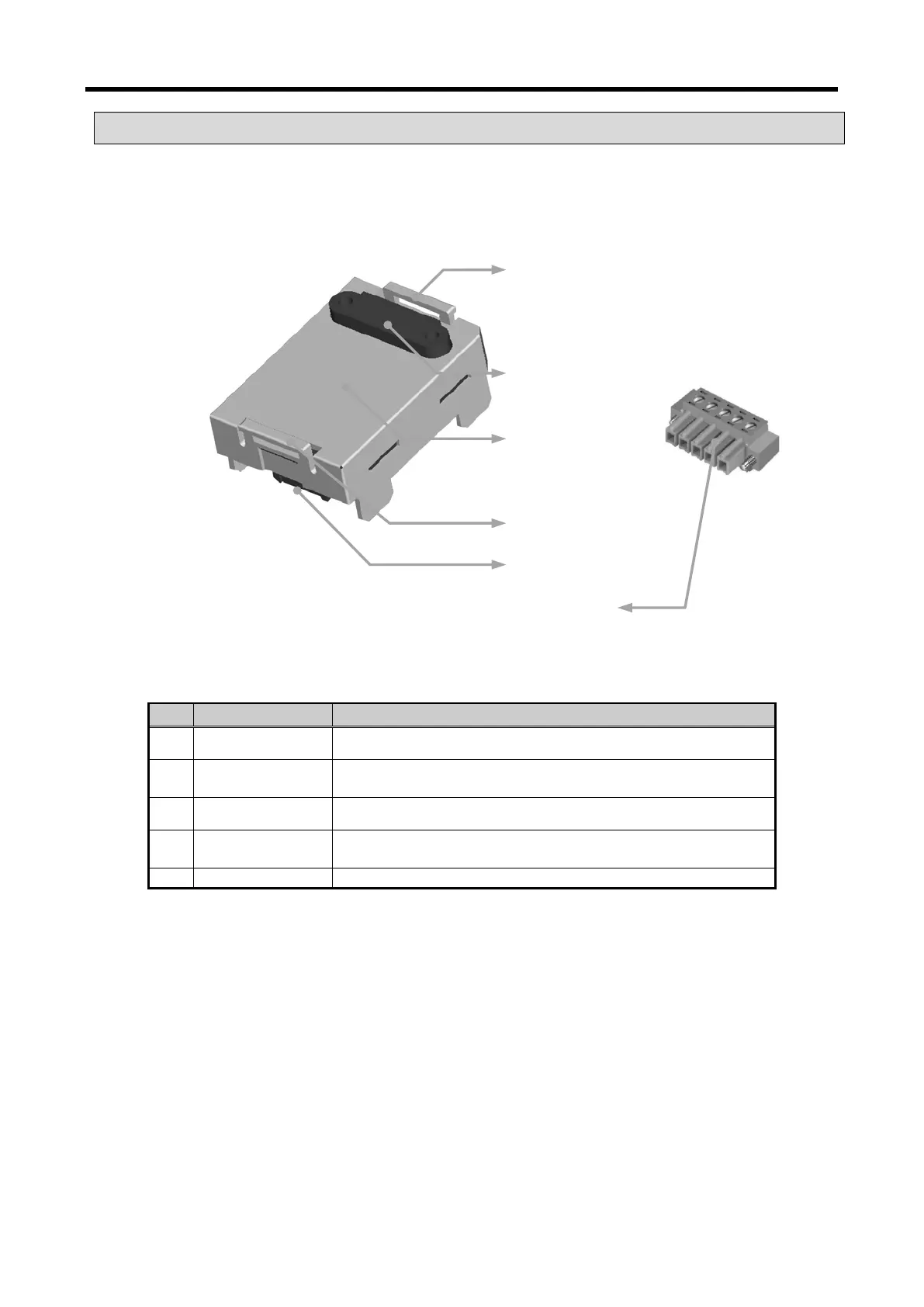

12.3 Name and Function of Each Part
Describes name and function of each part
① Hook for fixation
② Terminal block
③ Cover
④ Hook for fixation
⑤ Connector for
option board
⑥ Input
connector
35.0mm
49.0mm
10.3mm
No.
Name
Description
①④ Hook for fixation ▶ Hook for fixing the option board to main unit
② Terminal block
▶ Wiring terminal block to connect with external device
(Analog input)
③ Cover ▶Option board cover
⑤
Connector for option
board
▶
Connection connector for connecting the option board to the main
unit
⑥
Input connector
▶
Wiring connector for connecting with the external device
12 - 4
