Chapter 12 Thermocouple Input Option Module (XBO-TC02A)
12.9 Disconnection detection
12.9.1 Average function
(1) Count average
It accumulates temperature conversion values of a selected channel as many as average value
and displays the average of the total sum in digital data

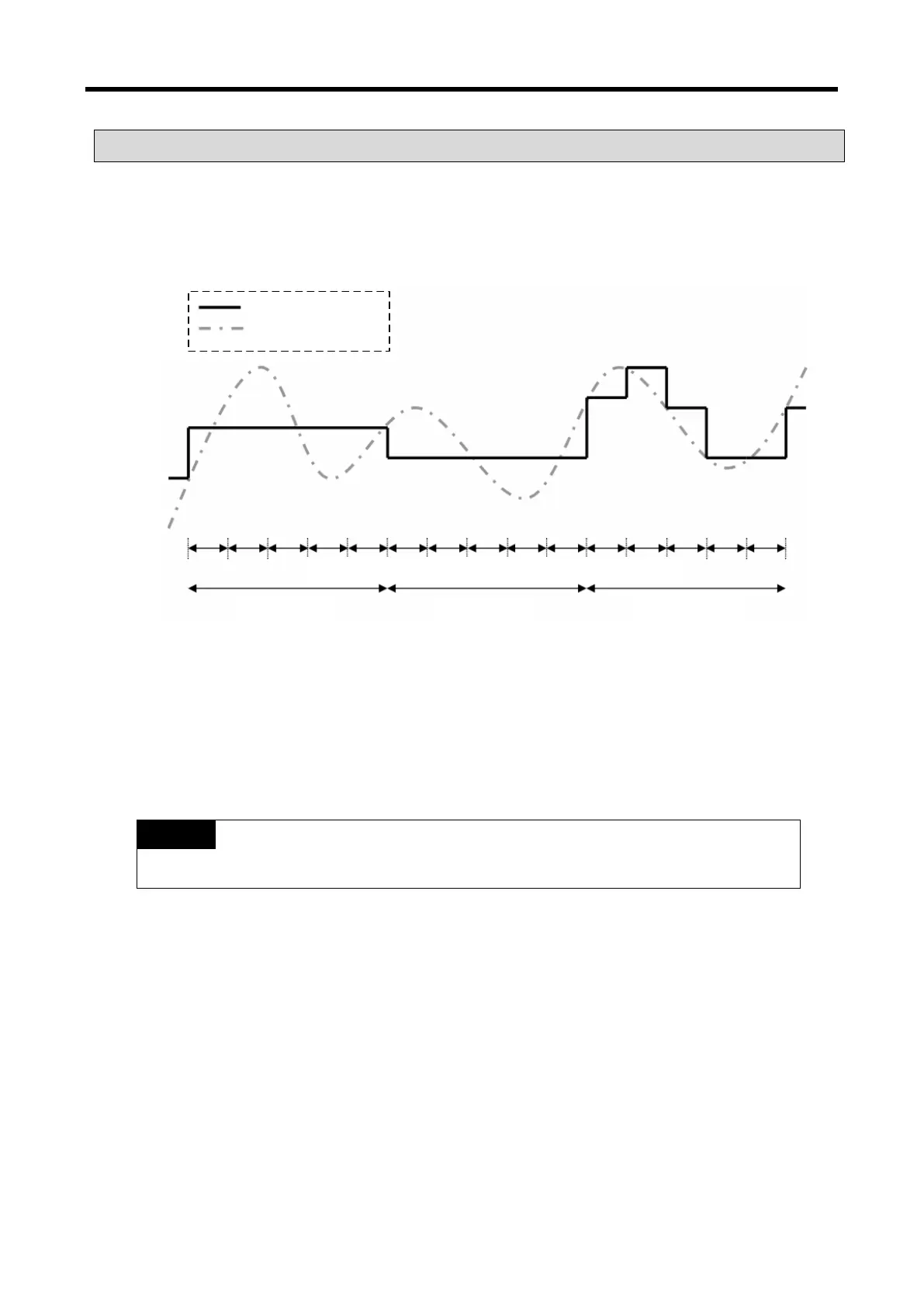

Channel conversion interval (50 ms + 6 scan time)
Input after averaging
Actual input
Averaging
section
Averaging
section
Sampling
section
- Setting range = 2 ~ 64000 [times]
- Averaging interval is calculated according to the number of channel used
- Averaging interval[ms] = Averaging count x (50ms + 6 scan time)
(1) Averaging interval varies according to change of scan time.
